RedMax HB280 - Page 72

A
545192167
12/08/08
NEW
Page:

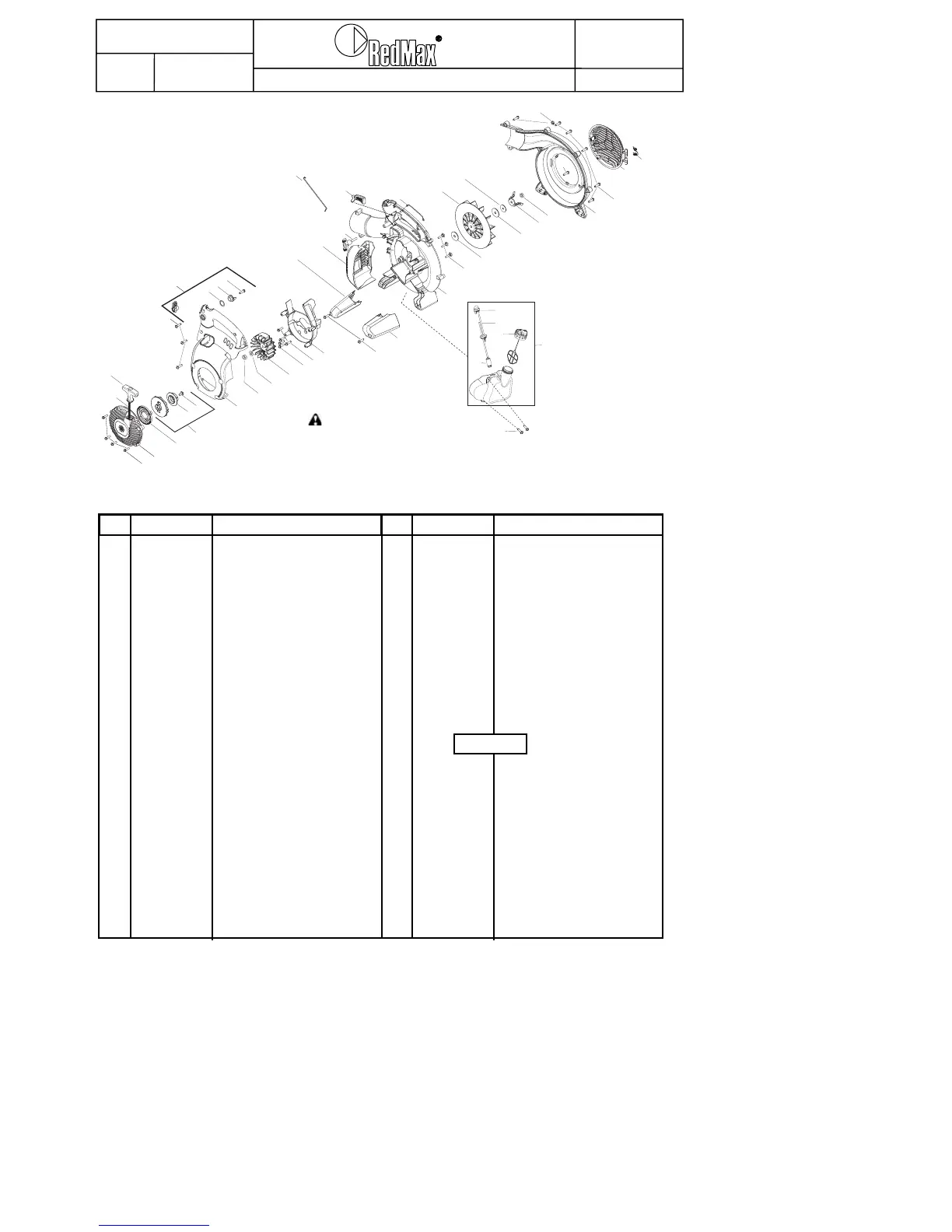

PARTS LIST
HB280 (US/CAN)
A
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
1. 545081817 Kit - Rope
2. 545043205 Handle - Starter
3. 530015814 Screw
4. 545008020 Kit - Cruise Control (Incl. 5,6,7)
5. 530015147 Washer - Wave
6. 545111501 Ratchet - Cruise Control
7. 530015814 Screw
8. 545140302 Foot - Front Impact
9. 545157902 Assy - Muffler Guard
10. 545108702 Assy - Tube Clamp
11. 545111301 Wire - Linkage
12. 545111602 Trigger - Throttle
13. 545131701 Wire - Handle Ground
14. 545173201 Impeller
15. 530015127 Washer
16. 530015197 Nut
17. 545111101 Spring - Vac Door
18. 545199401 Cover - Vac Door
19. 530015814 Screw
20. 545113007 Assy - Outer Scroll (Incl. 17,18)
21. 545147101 Nut - Impeller
22. 545202801 Blade - Mulch
23. 545164501 Washer - Impeller
24. 530016445 Screw
25. 545110003 Scroll - Inner
26. 530047721 Bulb - Purge
27. 545081841 Kit - Fuel Line Grommet
(Incl. 26,29)
28. 545073101 Assy - Fuel Cap with retainer
29. 530095646 Assy - Fuel Pickup
30. 545108902 Assy - Fuel Tank
(Incl. 26,27,28,29)
31. 530015814 Screw
32. 545140402 Foot - Rear Impact
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
33. 530015814 Screw
34. 545132801 Scroll - Flywheel
35. 530015814 Screw
36. 530015810 Screw
37. 545132801 Scroll-Flywheel
38. 530015828 Washer
39. 530016134 Nut - Flywheel
40. 545108803 Cover - Motor Housing
41. 545112801 Screw
42. 545140801 Hub
43. 545081818 Kit - Starter (Incl. 41,42)
44. 530042095 Spring - Starter
45. 545111802 Housing - Starter Cover
46. 530015810 Screw
545218616 Operator Manual
Ref. Part No. Description
Ref. Part No. Description
Not Shown
