REEBOKFITNESSEQUIPMENT.COM
ZPOWER
BIKE ASSEMBLY GUIDE
8

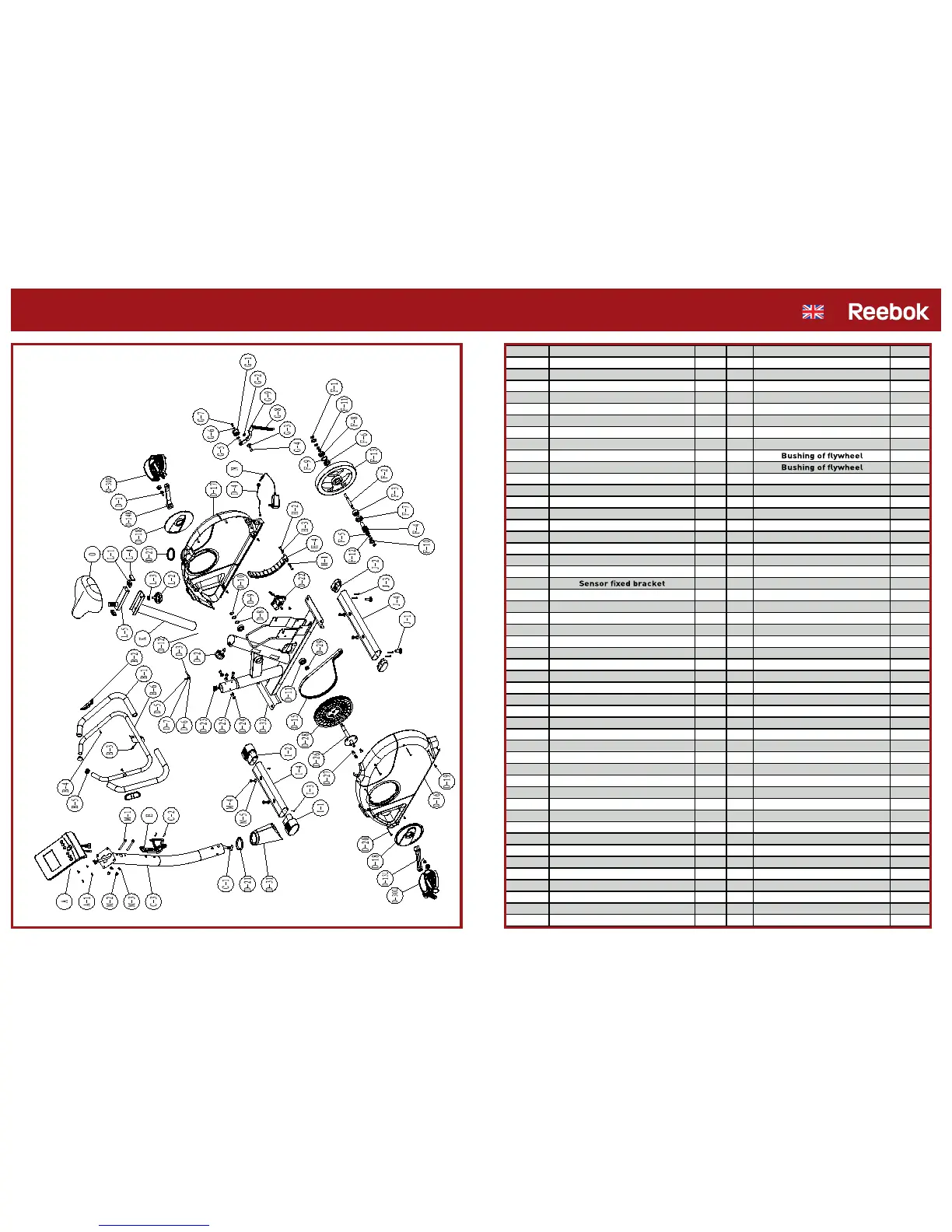

Exploded view
ITEM DESCRIPTIONQ'TY ITEM DESCRIPTIONQ'TY
AZpower Bike Console SM7286-671
B-2Hand pulse set2
F-7
Bearing 6203 1
B-3Hand pulse wire 1
F-8
Bearing 6300RS1
B-4Screw M4*20L 2
F-9
Flat washer1
B-5End cap 2
F-10
Star washer2
CHandlebar post set1
F-13
Flywheel 1
C-1Sensor wire (Upper) 1
G
Idler set1
C-2Screw M5*P0.8*20L 2
G-1
Idler wheel1
C-3Handlebar post 1
G-2
Nut M8 1
G-4
Hexagonal screw M8*P1.25*18L 1
D-3Sensor wire 1
G-6
Flat washer1
D-4DC wire 1
G-7
Hexagonal screw M6*P1.0*12L1
D-5Screw M4*10L 1
G-8
Idler spring 1
D-7Flat washer 1
H
Magnet set 1
D-8Wave washer 1
H-1
Flat washer2
D-9Flat washer 1
H-2
Hexagonal screw M6*P1.0*16L2
D-10 C clip 1
H-3
Spring washer2
D-11 Bearing 62032
H-4
Magnet 1
D-12 Sleeve for seat post 1
I
Front stabilizer set 1
D-13 Left crank with cap1
I-1
Front stabilizer pad 1
D-14 Right crank with cap 1
I-2
Front stabilizer pad 1
D-15 Belt 1
I-3
Screw 3/16'2
D-16 Left chain cover (upper) 1
I-4
Front stabilizer 1
D-17 Right chain cover (lower)1
J
Rear stabilizer set1
D-18 Crank cap2
J-1
Adjust small pad2
D-19 Screw M5*16 4
J-2
End cap of stabilizer2
D-20 Screw M4*50L 6
J-3
Screw 3/16'4
D-21 Washer of handlebar post 2
J-4
Rear stabilizer1
D-22 Servo motor set1
K
Seat post set1
D-23 Motor wire 1
L
Seat slider set1
D-24 Screw M8*P1.25*20L 4
L-1
Fixing screw bracket 1
D-25 Semi washer4
L-2
Knob of seat 1
D-26 Axle 1
L-3
Flat washer1
D-27 Hexagonal screw M8*P1.25*12L 3
L-4
End cap2
D-28 Pulley1
L-5
Seat slider1
D-29 Bushing1
M
Hardware kit set 1
D-30 Pedal set1
M-1
Screw M8*P1.25*75L 2
D-31 Cap of handlebar post1
M-2
Nut M8 2
E
Water bottle cage 1
M-4
Screw M8*16 4
F
Flywheel set
1
F-1
Nut 3/8' 5
N
Switching power adapter1
F-2
Flywheel axle1
O
Seat set 1
