Reece Posh Solus MK3 - Page 2

Installation Instructions
Posh Solus MK3 Shower Mixer with Extended Lever

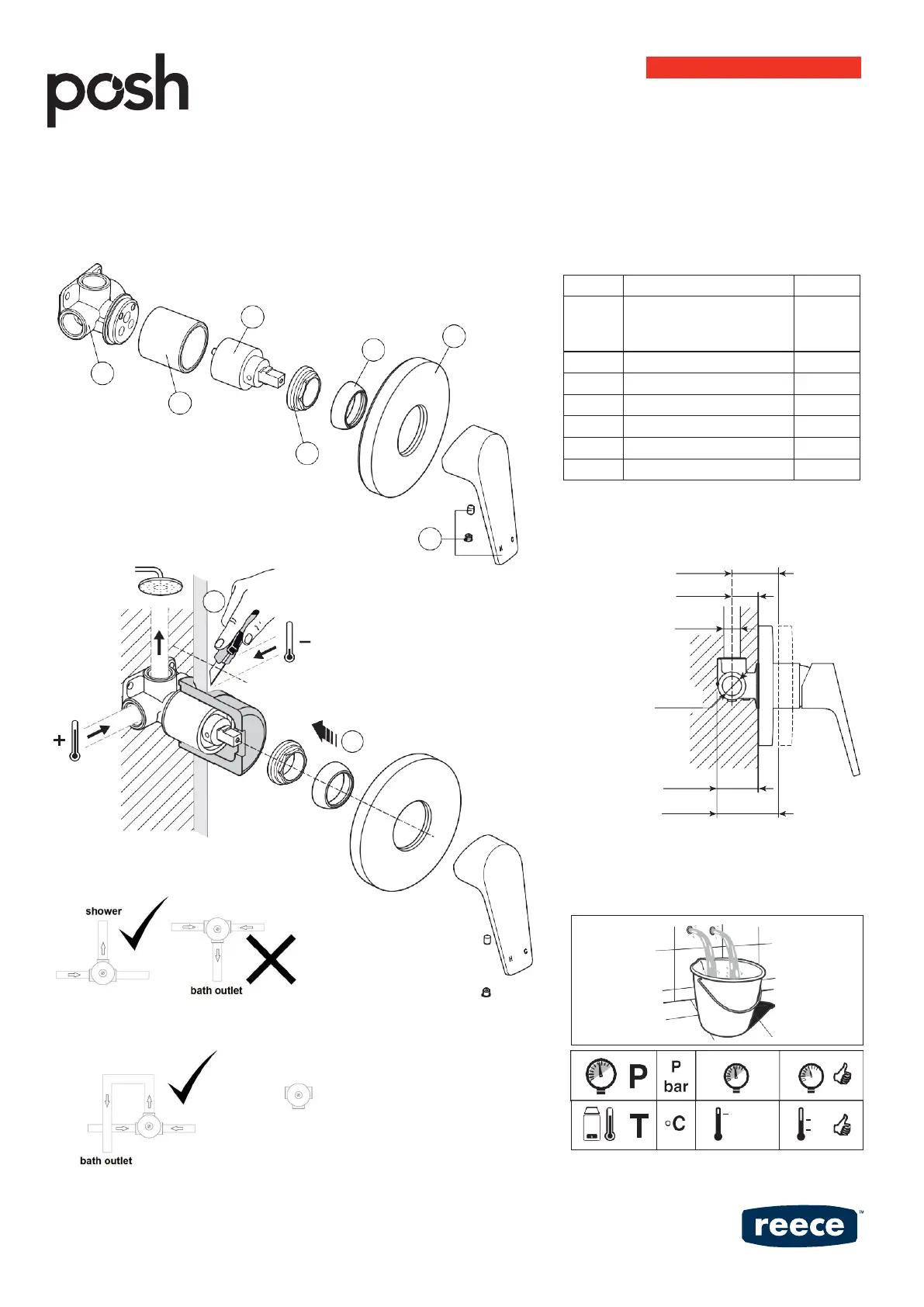

EXPLODED DIAGRAM:
Please ensure a copy of the installation
instructions is left with the end user for future reference
5
7
6
4
2
3
1
1
2
Max. 49
Min. 27
Rp 1/2”
Rp 1/2”
Min. 42
Max. 64
MAX. 5
10
MIN.
0,5
1
A503081007g
Number Part Code
2
Handle complete
Handle complete for 200mm
Handle complete for 270mm
2250686
9509106
9509107
2 Cover plate
2250687
3 Cartridge dome
4
Cartridge locknut
5
Cartridge
2250688
6
Cartridge sleeve
7
Mixer body
80 MAX.
65
45
