Operating Instructions
Receptacle Tester
1.Plugthetransmitterintothereceptacle.
2.Determinethestatusofthecircuitconnectionaccordingtothe3LEDs.

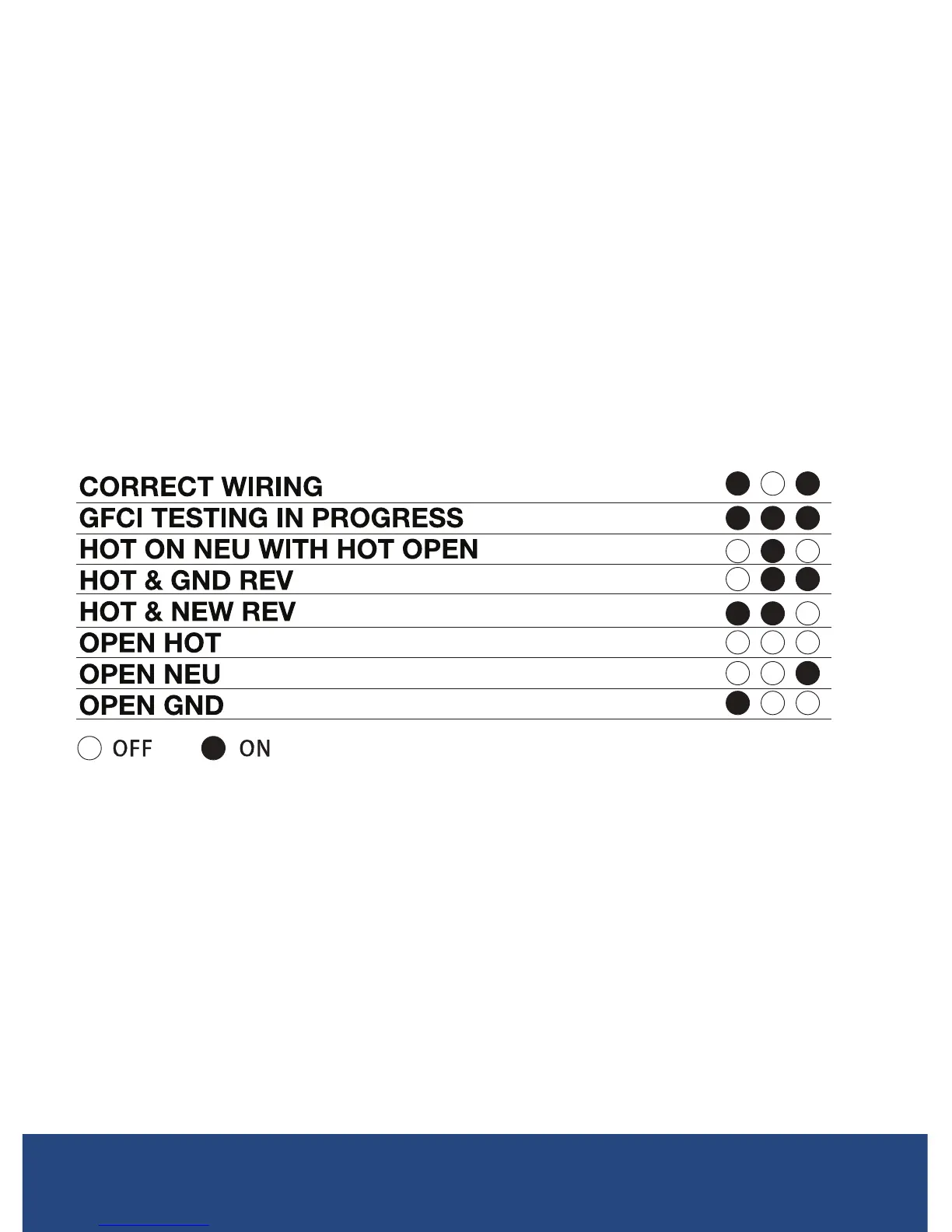

Thediagrambelowindicatesallofthepossiblecombinationsthatcould
appearforthecircuitundertest(LEDfromonesideoftheGFCIbut-
tons).Ifobservedfromtheotherside,theorderofLEDindicatorlights
willbereversed.
3.Groundconnectionscannotbedetectedwhentherearetwopower
linesinonecircuit.
Circuit Breaker Finder
1.Plugthetransmitterintoareceptacle;twogreenLEDswilllightup.
2.Placethereceiverinfrontoftheopencircuitbreakerbox.Adjustthe
sensitivitywheelonthereceivertothehighestsensitivityposition.
AtthispointtheredLEDwillbeON.Ifnot,pleasecheckthebattery.
3.Orientthereceivertoscanthesurfaceofthecircuitbreakerpaneland
movethereceiverfromtoptobottomoneachside.Seediagramon
nextpage.
