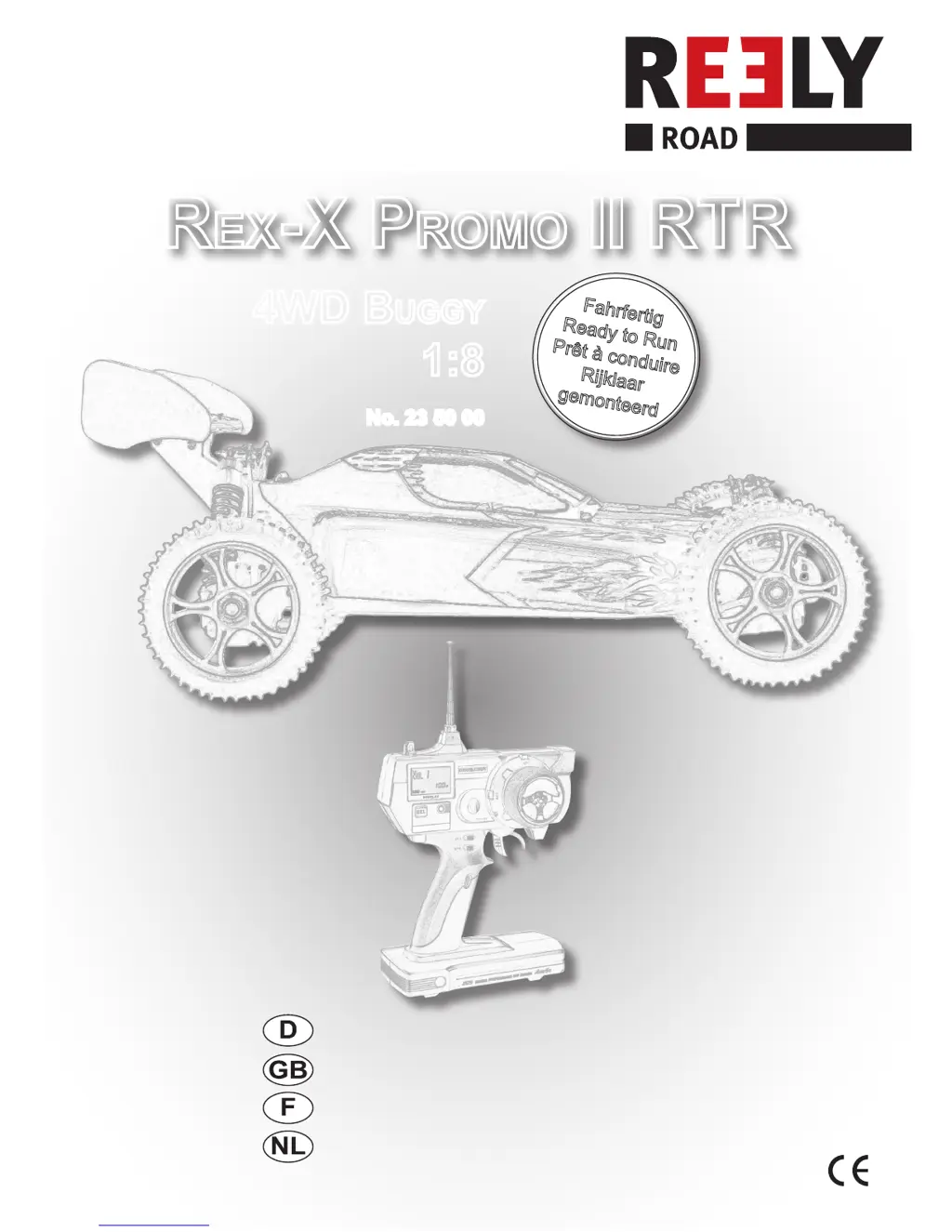

REX-X PROMO II RTR
4WD BUGGY
1:8
No. 23 50 00
BEDIENUNGSANLEITUNG SEITE 2 - 32
OPERATING INSTRUCTIONS PAGE 34 - 64
NOTICE D´UTILISATION PAGE 66 - 96
GEBRUIKSAANWIJZING PAGINA 98 - 128
09 / 2007
BEDIENUNGSANLEITUNG / OPERATING INSTRUCTIONS
NOTICE D´UTILISATION / GEBRUIKSAANWIJZING

Table of Contents

Questions and Answers

  • L
    Lance ColemanAug 1, 2025
    What to do if Reely Rex-X Promo II RTR Toy engine starts, but stops again?
    • S
      Stephen WilliamsAug 2, 2025
      If the engine of your Reely Toy starts but stops again, the fuel tank might be empty, so you should fill it. Alternatively, the fuel line, air filter, or exhaust could be blocked, requiring cleaning or replacement of the blocked parts. Another possibility is an incorrectly set carburetor, which would need the idle speed and main nozzle needle to be reset. Also, check the temperature; if it's above 150°, enrich the fuel mix and ensure the wheels can move freely.
  • J
    jessica82Aug 8, 2025
    Why does the RC-System of my Reely Rex-X Promo II RTR not function?
    • M
      maryfordAug 8, 2025
      If the RC system of your Reely Toy does not function, it might be due to empty batteries or rechargeable batteries in the transmitter or receiver. Replace them. Also, check if the batteries or rechargeable batteries are inserted incorrectly and correct the polarity. Finally, ensure the plug of the batteries or rechargeable batteries of the receiver is firmly inserted.
  • D
    Deborah VazquezAug 13, 2025
    How to fix Reely Rex-X Promo II RTR Toy engine that does not start?
    • K
      kristen12Aug 13, 2025
      If the engine of your Reely Toy does not start, the glow plug may be defective, or the start battery might be empty; replace the glow plug and charge the start battery. Ensure the fuel tank isn't empty and the carburetor is filled by pulling the recoil starter cord several times. Check if the carburetor is correctly set by resetting the idle speed and main nozzle needle. Replace old or dirty fuel and check the fuel filter. If the combustion room is flooded, unscrew the glow plug and proceed as described in the corresponding chapter. Inspect and replace fuel hoses if additional air is being sucked in, and tighten all engine screws. Finally, clean or replace any blocked fuel lines, air filters, or exhaust components.
  • M
    Mr. Christopher GarciaAug 20, 2025
    Why is the range of transmitter too small on my Reely Rex-X Promo II RTR?
    • R
      Richard WhiteAug 20, 2025
      If the range of the transmitter of your Reely Toy is too small, the batteries or rechargeable batteries of the transmitter and/or receiver may be weak, so replace them. Ensure the antenna of the transmitter is fully pulled out to maximize receiving power. If the antenna of the receiver is cut, repair the receiver.
  • J
    Jeffrey ChenAug 26, 2025
    What to do if servos do not respond correctly on Reely Toy?
    • G
      Gina WhiteAug 26, 2025
      If the servos of your Reely Toy do not respond correctly, the batteries or rechargeable batteries of the transmitter and/or receiver might be weak, so replace them. Check if the toothed wheels in the servo links do not engage or are defective, and repair the servo if needed. Readjust any loose adjusting rings on the servo motor, using factory settings. Ensure the Servo Reverse Switch is set to „NORM“ and not „REV“.

Summary

1 INTRODUCTION

DECLARATION OF CONFORMITY

Manufacturer's statement of compliance with essential requirements and regulations.

WARRANTY INFORMATION

Details on warranty coverage, limitations, and expiration conditions.

2 SAFETY MEASURES

General Safety Precautions

Essential warnings and advice for safe operation and handling of the model.

Drive Mode and Remote Control Safety

Guidelines for safe driving practices and remote control usage.

General Operational Guidelines

Important notes on maintenance, battery use, and general handling.

3 DESCRIPTION OF THE MODEL

Technical Information Overview

Covers engine, drive train, chassis, and tuning details of the model.

3.1 Three-Channel Remote Control

Explains the pistol grip transmitter, antenna, and control functions.

3.2 4 WD Buggy Chassis Components

Details key chassis parts like air filter, alignment, differential, and suspension.

4 PREPARATION

Initial Setup and Accessories

Covers scope of delivery, required accessories, tools, and checklists for operation.

RC System and Car Body Installation

Instructions for mounting the car body and setting up the RC system.

Engine and Drive System Checks

Procedures for checking transmitter range, drive alignment, and carburettor settings.

Engine Starting and Break-in Procedures

Guides for starting and the initial break-in of the engine.

5 DRIVE OPERATION

5.1 Fuel, Glow Plug, and Air Filter Recommendations

Advice on fuel selection, glow plugs, and air filter maintenance.

5.2 Driving Manner Impact on Components

Explains how driving style affects engine, clutch, and bearings.

6 SET-UP

Alignment and Camber Adjustments

Guides for setting wheel alignment and camber inclination for optimal cornering.

Damping and Spring Preload Settings

Adjusting suspension damping and spring preload for optimal handling.

6.4 Engine Fine Tuning

Optimizing carburettor settings for engine performance and responsiveness.

6.5 RC System Installation

Instructions for installing or replacing RC system components.

7 MAINTENANCE; DISPOSAL

Differential Tuning and Damping

Modifying differential lock and optimizing shock absorber characteristics.

Ackermann Effect Adjustment

Adjusting steering progressivity via Ackermann angle for better cornering.

Routine Checks and Cleaning

Procedures for pre-drive checks, cleaning, and lubrication of the model.

Environmental Conditions & Disposal

Protecting components from elements and proper product disposal.

8 TECHNICAL DATA

Model Specifications

Details on engine, drive train, chassis, suspension, and tires.

Factory Settings and Measurements

Lists factory default settings and physical dimensions/weight of the model.

9 TROUBLE SHOOTING

RC System Issues

Troubleshooting RC system malfunctions like no function or poor range.

Engine and Fuel System Problems

Diagnosing issues with engine starting, fuel supply, and running.

Chassis and Drive System Malfunctions

Addressing problems with steering, braking, clutch, and damping.

Reely Rex-X Promo II RTR Specifications

General IconGeneral
Drive type4WD
Scale1:10
Power SourceElectric
Motor TypeBrushed
TerrainOff-road
Model versionRTR
BatteryNiMH
ChargerYes
Control2, 4 GHz
SuspensionYes
