Reflex iC60N - Page 24

Use
24
A9MA03EN 02/2012
Mode 2
Mode 2 is used for local opening/closing and centralized opening of the circuit breaker:
z Y1: local opening control on rising edge, latched at high state (state = 1) to inhibit Y2
z Y2: local one-shot closing and opening control
z Y3: centralized closing control on rising edge and opening control on falling edge
NOTE: Y3 is only available in Reflex iC60 versions with Ti24 interface.

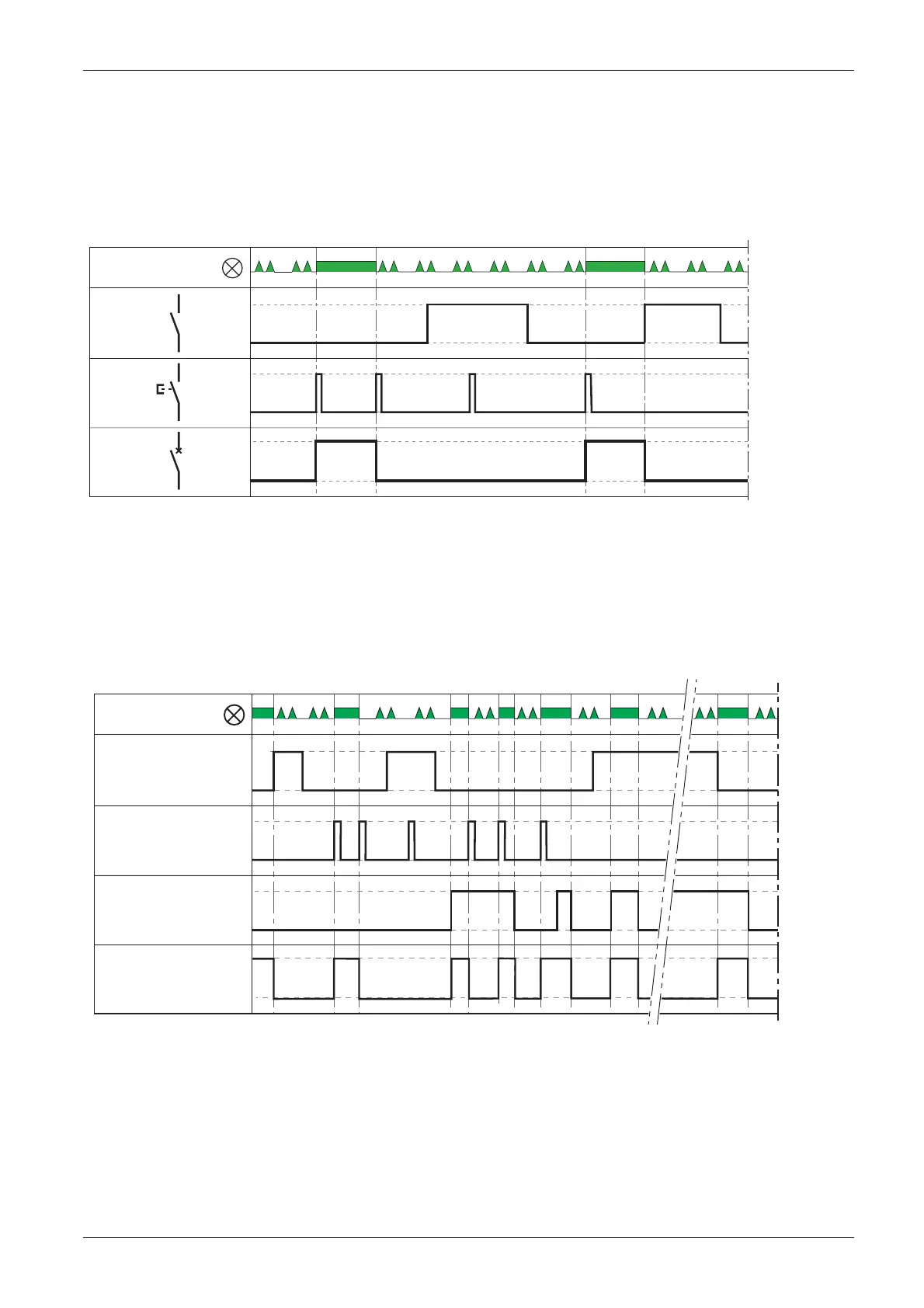

The following diagram shows operation of the version without Ti24 interface.
Operation is as follows:
z When input Y1 is at 1, input Y2 is inhibited
z When input Y1 is at 0, a pulse on input Y2 makes the Reflex iC60 circuit breaker switch alternately
from Ready position (contacts open) to closed position
The following diagram shows mode 2 operation of versions with Ti24 interface.
Operation is as follows:
z A rising edge on input Y1 makes the Reflex iC60 circuit breaker switch to Ready position (contacts open)
z The state of input Y3 is taken into account on falling edge of Y1. If input Y3 is at 1 when there is a
falling edge on Y1 the Reflex iC60 circuit breaker switches to closed position
z Input Y2 is inhibited when input Y1 is at 1
z If input Y1 is at 0, a pulse on input Y2 (rising edge) makes the Reflex iC60 circuit breaker switch
alternately from Ready position (contacts open) to closed position
z Input Y3 (Ti24) is operational if Y1 is at 1 or at 0:
z When input Y3 (Ti24) changes to 1, the Reflex iC60 circuit breaker switches to closed position
z When input Y3 (Ti24) changes to 0, the circuit breaker switches to Ready position (contacts open)
Y2
I. ON
Ready
Y1
Reflex
iC60
on
off
on
off
Y1
Ready
Y3
(Ti24)
Y2
Reflex
iC60
on
off
on
off
on
off
I. ON
