5

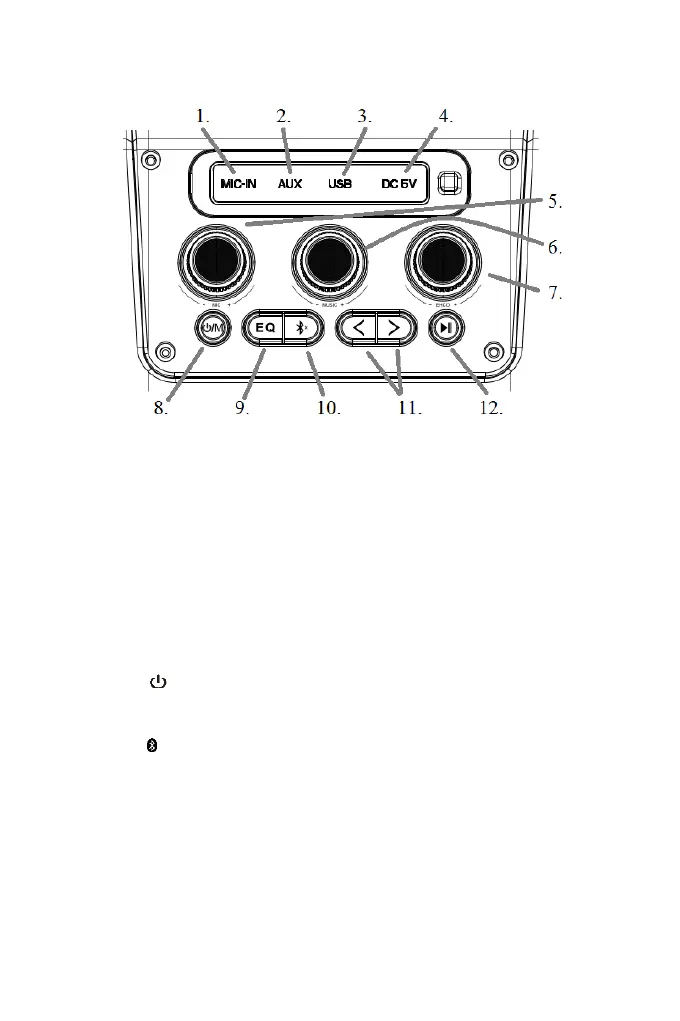

Control panel
1. MIC (6,3mm Microphone jack)
2. AUX IN (3,5mm AUX IN jack)
3. USB jack (USB 2.0 jack for Media playback)
4. DC 5V (Micro USB charging socket / only for charging this device)
5. MIC +/- (Volume control microphone)
6. Music +/- (Volume control music)
7. Echo +/- (Control for the echo effect)
8. / M (On, Off / mode-button)
9. EQ (Equalizer button)
10. (Bluetooth Pairing-button)
11. < / > (Next title / Previous title)
12. ►▌▌ (Play / pause)
