Engine & Controls
CHAPTER 3
3-11
Power Steering Wiring
The electronic power steering is an on demand system using minimal
power. The system uses two 60 amp breakers (one per starting battery)
located near the battery source. The breakers are between each battery

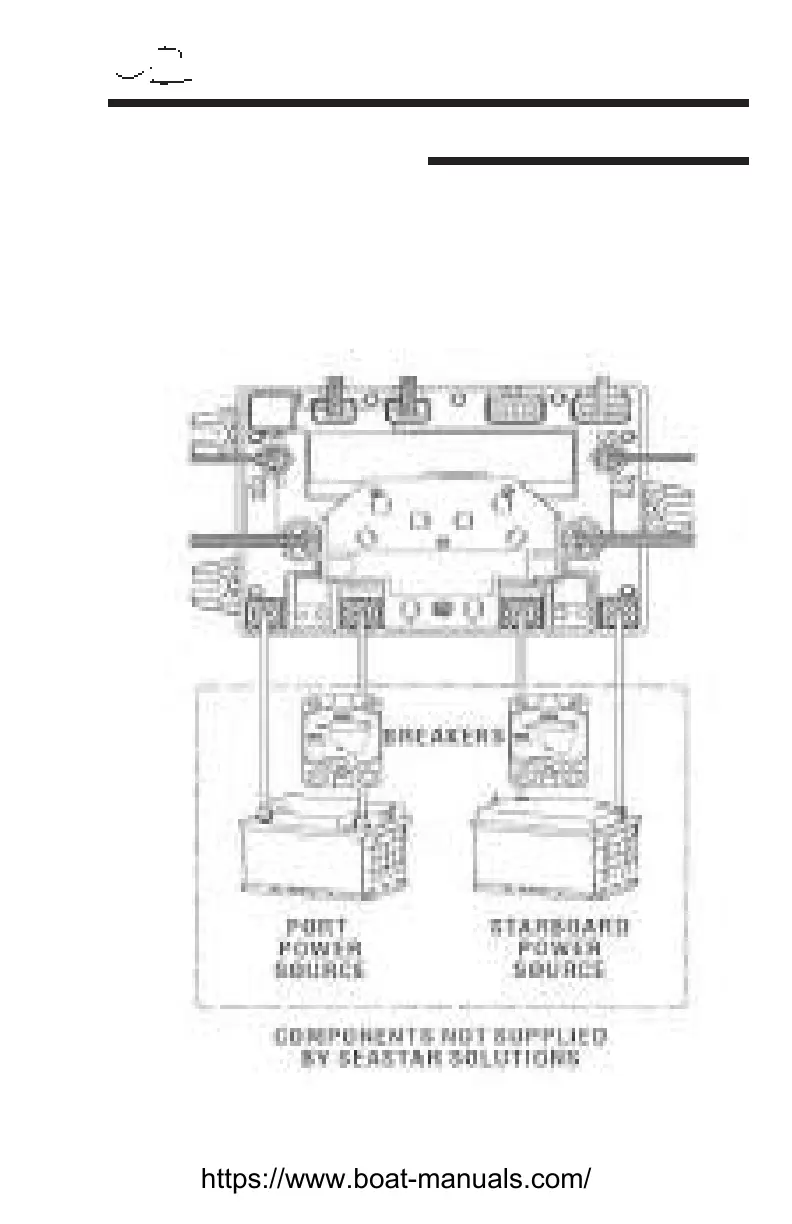

(twins) and the PCM mounting board. The illustration below shows a
typical twin engine steering setup.
