Helm Controls
Introduction to DEC Remote Control Box
This section covers select basic component
operations for the digital electronic control. For more
detailed information refer to the Yamaha outboard
owner’s manual and your information packet along
with the
earlier chapter using the stern drive remote
control as many of the basic functions overlap.
1. Neutral Interlock Trigger (Mounted under handle)
2. Up and Down Trim Buttons (Trim O/B drive)
3. Remote Control (Side Mount-Single Lever)
4. Active Indicator Icon ( Lights when engaged)
5. Throttle Only Button
6. Safety Lanyard (Disables engine ignition system)
Digital Electronic Remote Control Box
The remote control actuates the shifter and throttle
operations of the engine. The remote control box
typically is a key player in electronic functions such
as alerts and active indicators. It features a side
mount design and includes safety components such
as a safety lanyard.
Read and understand the control box shift and
throttle functions before venturing out in the water.
At that point practice using the remote control until
you understand its functions and how the vessel
reacts to it. Practice maneuvering in an uncluttered
environment.

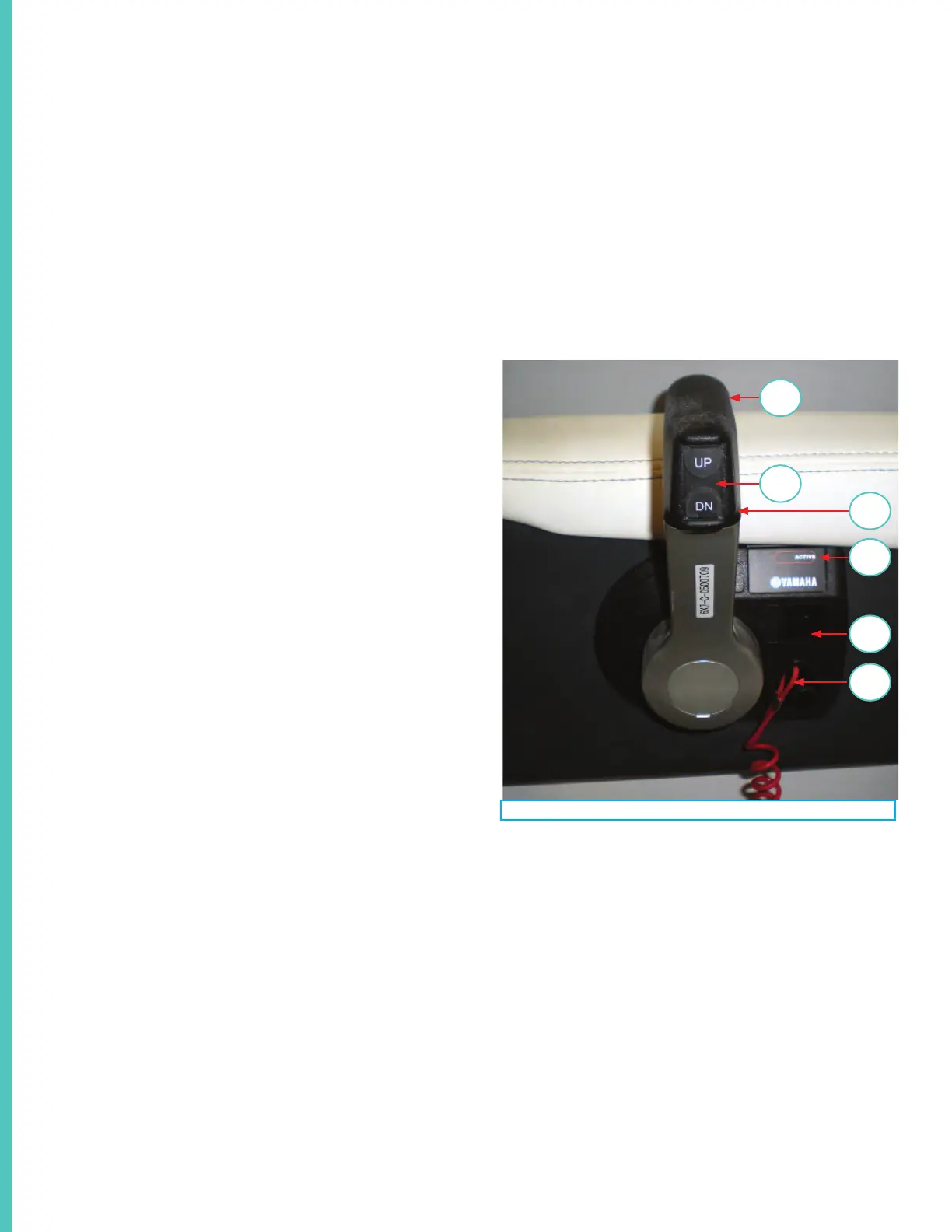

Note the photo to the right with a description of the
DEC remote control and its safety components.
4
2
5
3
1
SIDE MOUNT O/B DEC CONTROL BOX
6
