102

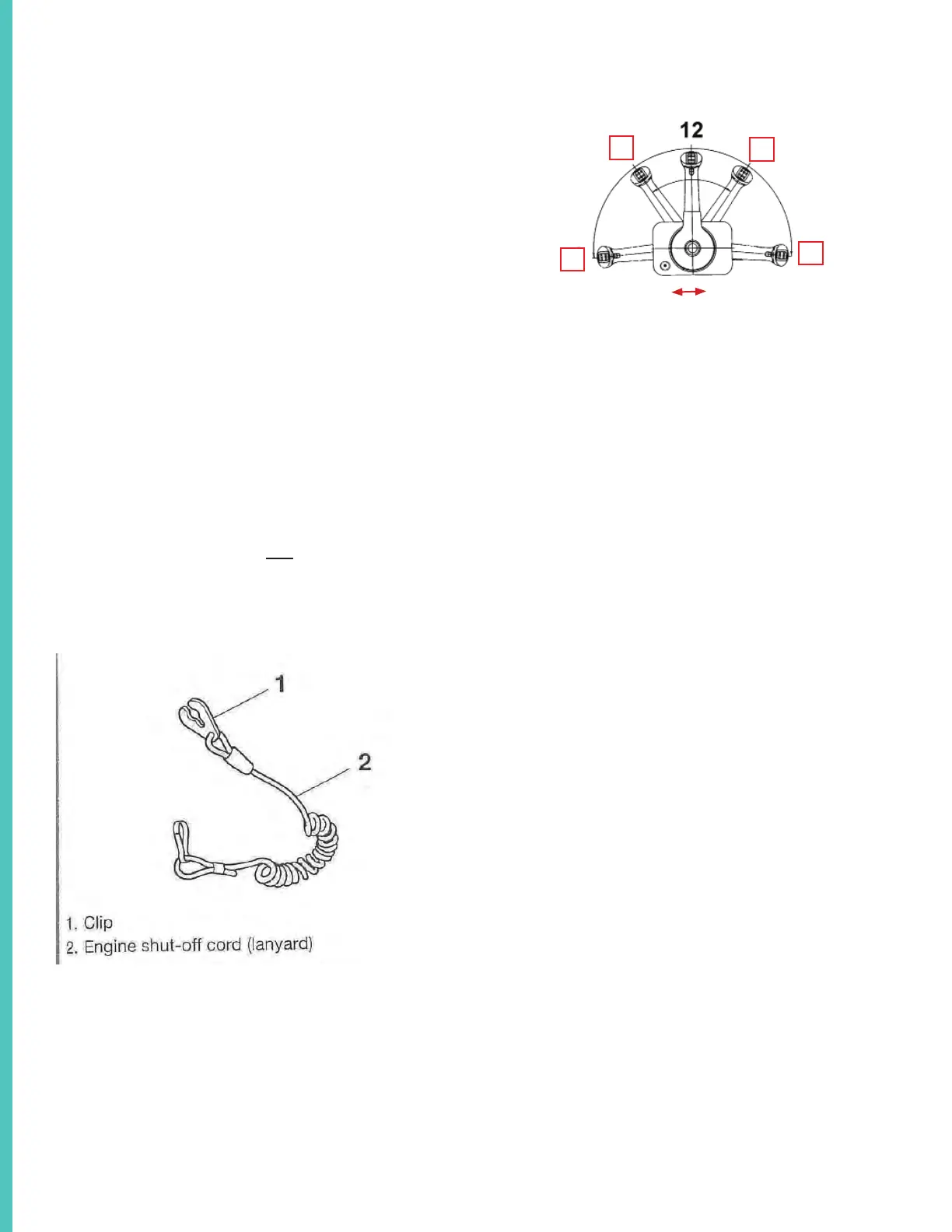

Safety Lanyard Switch/Attachment Cord
The safety lanyard switch when activated will dis-
able the outboard ignition system causing the en-
gine to stop. To use attach the clip (spade shaped
end) to the lanyard switch. This will permit the en-
gine to start. Connect the cord attachment device
located at the other end around a belt or wrist and
then connect around the lanyard cord.
Note that a belt buckle is not recommended as it
may be a weak connection point.
The operator must keep the lanyard attached when
underway. Should anything happen to the opera-
tor or there is an emergency on board the lanyard
when pulled off the switch will deactivate the igni-
tion system and the vessel will stop quickly.
If the lanyard spade is not connected to the
lanyard switch the engine will crank but will not
start.
STERNBOW
Profi le Of Typical Engine Control Lever Displaying Five Positions
3
1
11
9
Typical Remote Control Shift Position Descriptions
12- This is the straight-up or neutral position which
is the starting position for all other operations.
1- This is the detent forward gear position.
3- This is full throttle in forward gear.
11- This is the detent reverse gear position.
9- This is full throttle in reverse gear.
