Fuse Panel
Radio (Stereo) Memory)
This fuse protects the radio (stereo) memory cir-
cuit. This allows you to keep all your stereo pro-
gram selections when you leave your vessel even
with the battery switch turned off.
Power Platform
This fuse protects the optional power platform
mounted under the swim platform. This component
is only available on stern drive models.
Aft Bilge Pump
This fuse protects the aft bilge pump which is usu-
ally found in the sump just forward of the engine.
When you leave the vessel and turn off the battery
switch as recommended the bilge pump circuit is
still activated allowing the pump to work should
a leak develop. An icon on the bilge pump helm
switch lights to alert the operator that the pump is
activated.
Note that the battery switch in the “off” position
disconnects any voltage to the dash including the
engine key switch.
Shore Power Inlet- Battery Charger Cord
The shore power inlet is part of the battery charger
option. Use a 15 amp 3 blade extension cord of
the correct size and length to compensate for
current draw and voltage drop. Normally the lon-
ger distance traveled requires a higher amperage
extension cord. Read and understand the warning
below and the extension cord tips on next page.
If in fi eld charging is needed at most marinas today
a 25 or 50 foot 15 amp 3 bladed outdoor exten-
sion cord will fi t the needs of your on board battery
charger. Make sure the outlet you are plugging into
features 3 inputs and is a GFCI protected outlet.
Note the earth ground rounded blade which pro-
vides a path for the “earth”ground wire. It reduces
the risk of electrical shock and fi re.
AVOID POSSIBLE INJURY OR DEATH!
DUE TO ELECTROCUTION!
DO NOT OPERATE THE BATTERY CHARGER
WITH A TWO BLADED ADAPTER PLUG
OR EXTENSION CORD.
DANGER

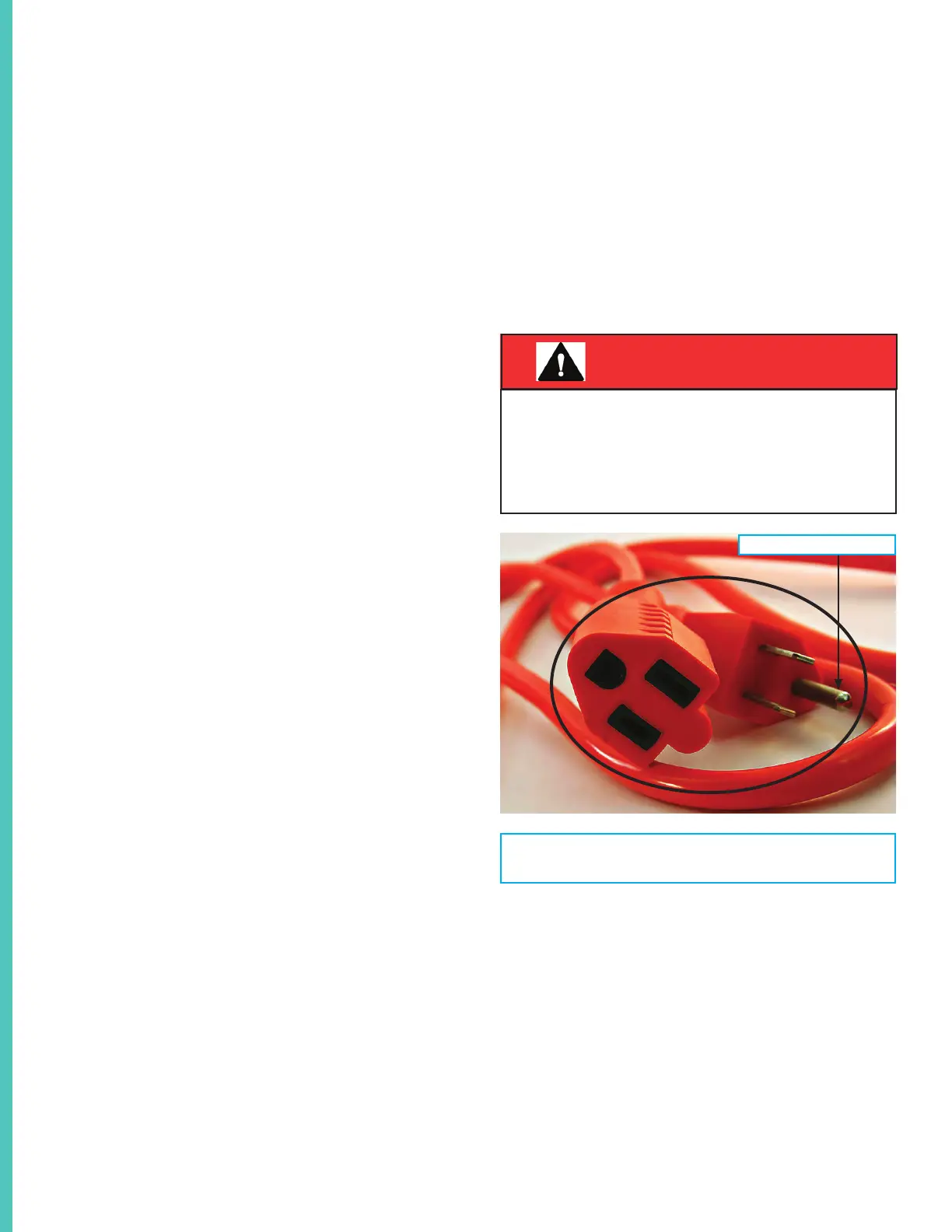

15 AMP 3 BLADE OUTDOOR EXTENSION
CORD
EARTH GROUND
