C. INSTALLATION OF TOP LEDGE AND LEDGE COVERS
GENERAL INSTRUCTIONS - ROUND POOLS
ASSEMBLING THE POOL FRAME
Secon
4
2. Install ledge covers (Steel Top Ledge)
NOTE: The following instructions are for Ledge covers
being attached to a steel top ledge and steel top
plate. Continue to next page step 2.1. Install ledge
covers (Resin Top Ledge), if you have resin top
ledges.

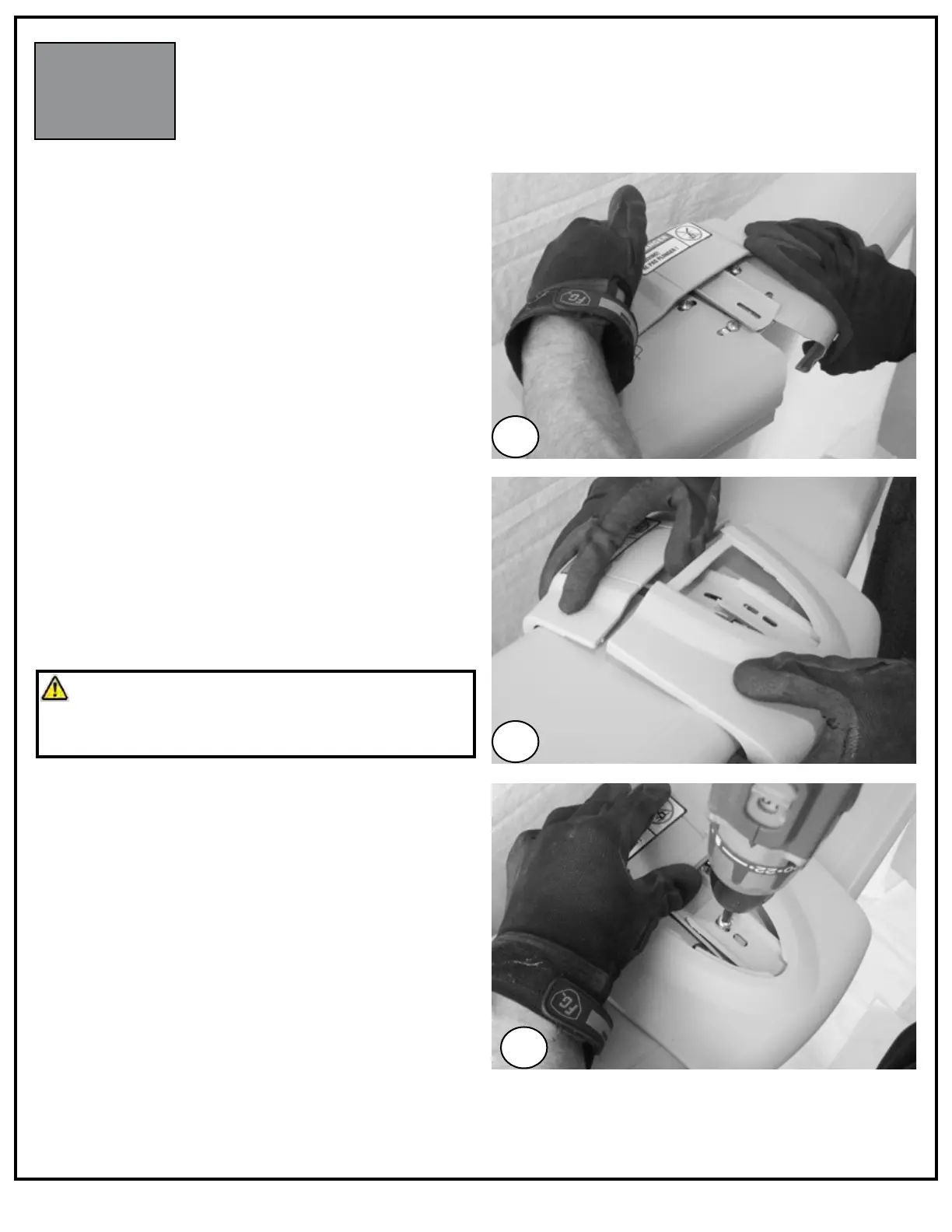

a. Place interior ledge cover onto the joiner plate.
(Image 11)
b. Slide the exterior ledge cover into the ledge cover
guide. (Image 12)
c. Attach the interior and the exterior ledge covers to
the top plate with a screw (V12x34). (Image 13)
Note: During assembly, the inner and outer
components of the ledge cover may have been
slipped into each other for packaging purposes.
Please continue to Step 3. Finish Ledge covers, page 7 of
this section.
Important Note:
We suggest that you install all the top ledges on the
wall before attaching them.
11
12
13
To Next Page
