REICH MoveControl Compact - Page 66

2 x
M10x60 mm
(80 Nm)
4 x
M10x40 mm
(80 Nm)
min. 300 mm
Set Compact
15 - 20 mm
OFF
10
Stabilizer bar

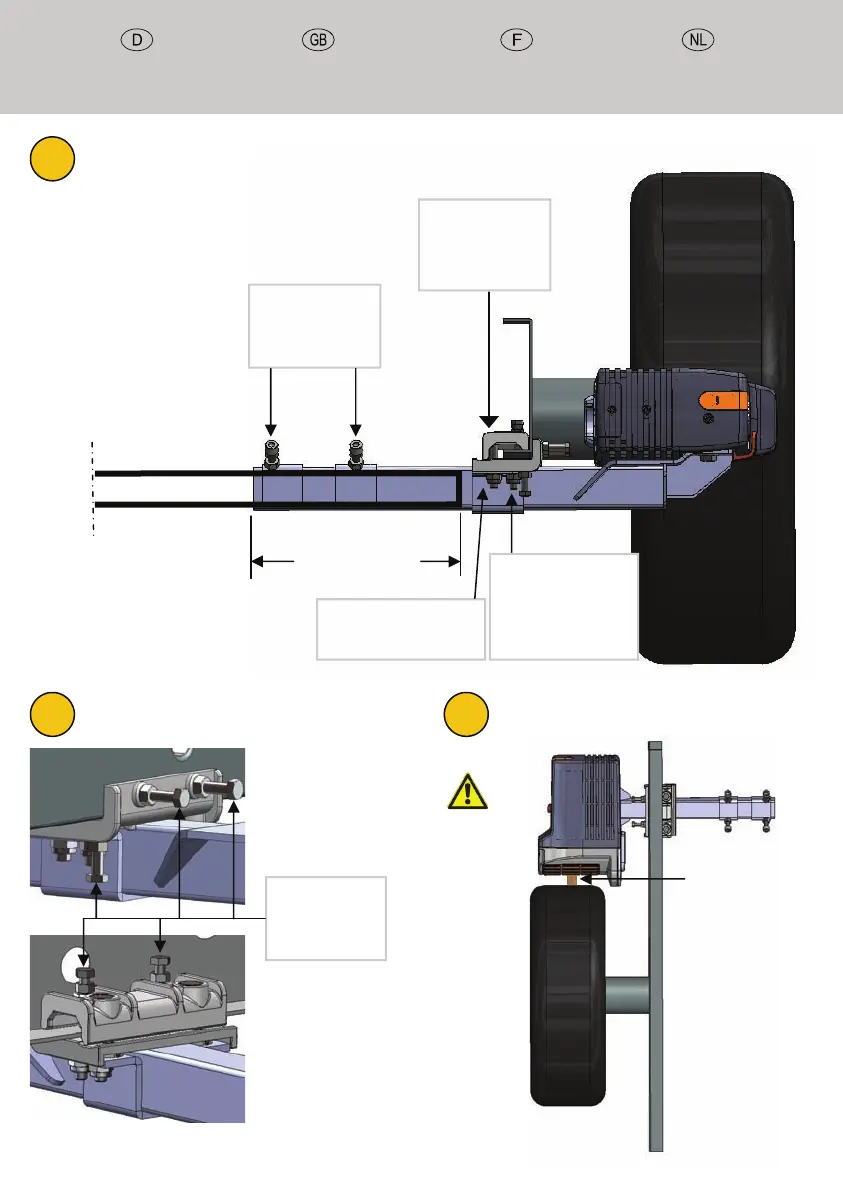

Einbaumaße Mounting
Dimensions
Cote de montage
Inbouwmaten
6 x
M8x40 mm
(35 Nm)
je 2 x
M10x30 mm
M10 ISO7040
(80 Nm)
2 x M10 (80 Nm)
ISO7040
2x
9.1
9.2 9.3
