REICH MoveControl Compact - Page 67

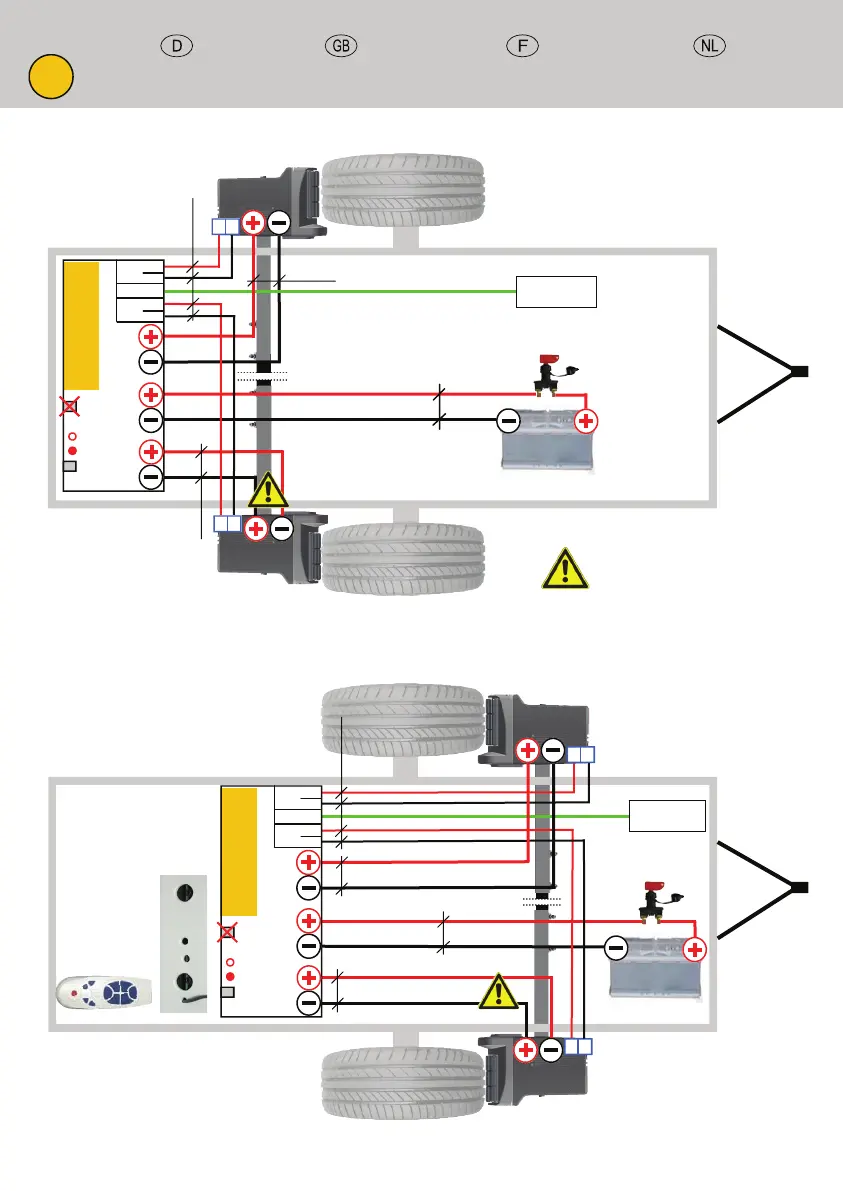

Anschlussplan Wiring Diagram Plan de connexion Aansluitschema
11
6 mm²
6 mm²
10 mm²
6 mm²
-
-
Ebox + (Plus) = Motor (Minus)
Ebox (Minus) = Motor + (Plus)
MC Compact
LED
Reset
6 mm²
D-Plus Signal
(optional)
D-Plus Signal
(optional)
min. 75 Ah
min. 75 Ah
BS
R
+
-
MotorDrive
L
12V
-
+
D-Plus
R
L
+
-
+
-
+
-
BS
R
+
-
MotorDrive
L
12V
-
+
D-Plus
R
L
1,5 mm²
10 mm²
+
-
1,5mm²
10
