C
onnecting to the Power Amplifier Using the Neutrik High Level Input
To engage the Neutrik Speakon plug, insert fully into socket and rotate clockwise until locked.
T
o remove the Neutrik Speakon plug, grip body of plug, place thumb on chrome lever, move lever backwards rotate
plug anti-clockwise quarter turn and withdraw.
T
he high-level input is designed to accept the stereo (two-channel) signals from the speaker terminals of your receiver,
integrated amplifier, and basic amplifiers. This has the advantage of ensuring that your subwoofer receives exactly the
same signal as the main speakers, which means that the character of the bass from the main system is carried forward
into the Sub-Bass System. This is a very important point and together with REL’s Natural RollOff™ circuitry, ensures
far superior system integration of the Sub-Bass System with the main system.

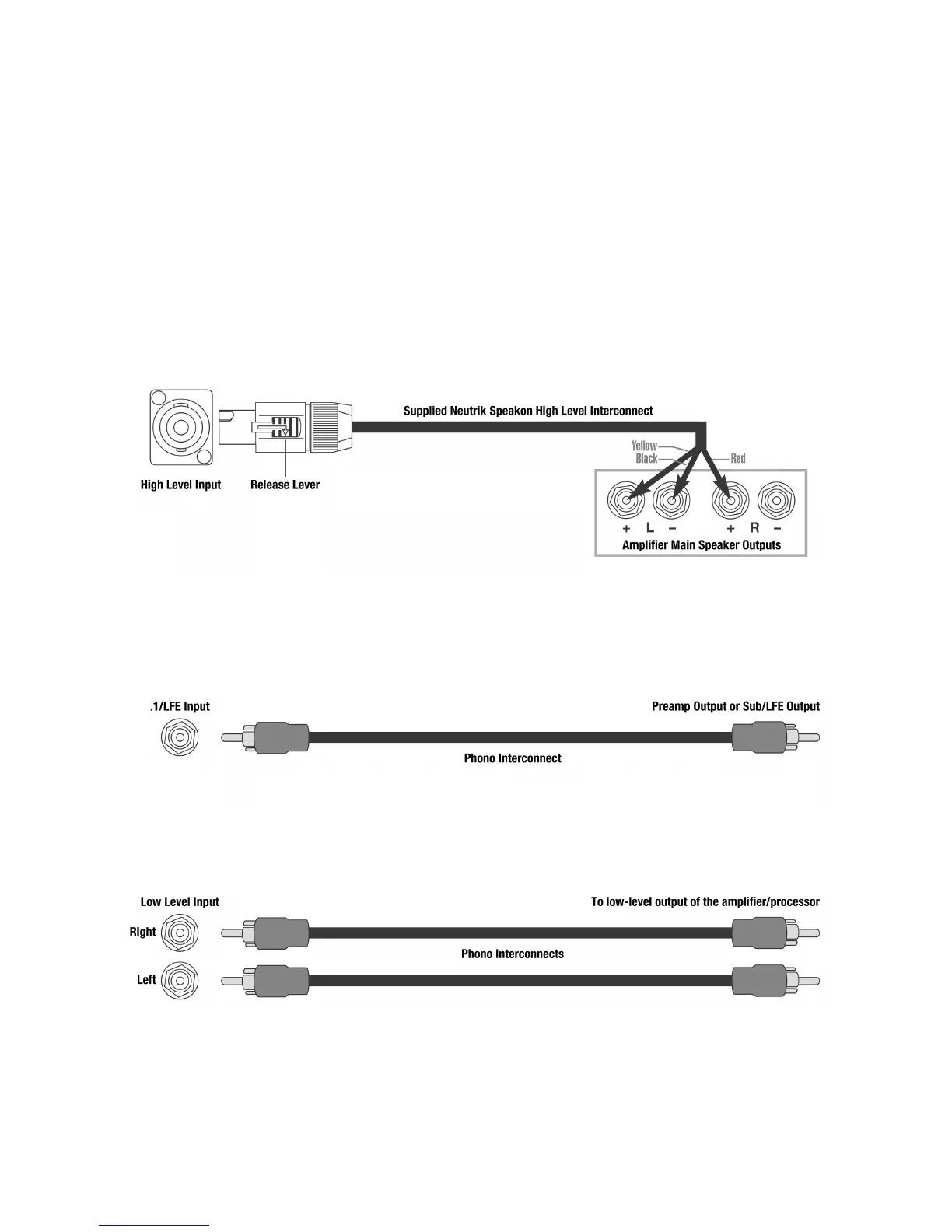

High-Level Input: Connections should be made to the same binding post on main amplifier as the main speakers.
Connect as shown above. Red to amplifier main right speaker red terminal, yellow to amplifier main left speaker red
terminal and black to amplifier main speaker black terminal, right or left but not both. Plug the Neutrik Speakon plug
into the HI LEVEL Neutrik socket.
Using the Low-Level Inputs
.1 Input: This requires a phono-to-phono cable and is a dedicated true .1 channel. This circuit therefore eliminates
the normal Natural RollOff Crossover and passes the .1 low-level signal through with only the required 120Hz 4th
order crossover. Connect as shown below. Single ended or balanced inputs available (single ended shown).
Low-Level Input: This stereo phono input allows for conventional connection to a preamplifier and should be used
in the rare event that a high-level connection proves incompatible. Connect as shown below. Plug one end into the
low-level output of the amplifier/processor and the other end into the stereo low-level inputs on the G1.
7
