REL HT/MKII - REL Set-Up Made Simple; Theater Connection Setup; Stereo Connection Setup

12
With the REL HT/MKII, there are two basic ways to connect and setup. The rst is a single channel input
from the sub out of a theater or power speaker system. In this case a single RCA cable is needed. The second
is a stereo input from a stereo preamp or powered speaker system. Here there will be the need for two RCA
cables. In both cases the user can set the upper frequency limit using the CROSSOVER control.
Connecng and Seng Up
Place in desired posion. While your REL has been designed to be extremely easy to posion and achieve
excellent results, careful placement along the same wall as the screen will yield improvements. Listen for
increases in deep bass output as well as precision of bass notes when seng up.
Theater connecon (Sub Out connecton)

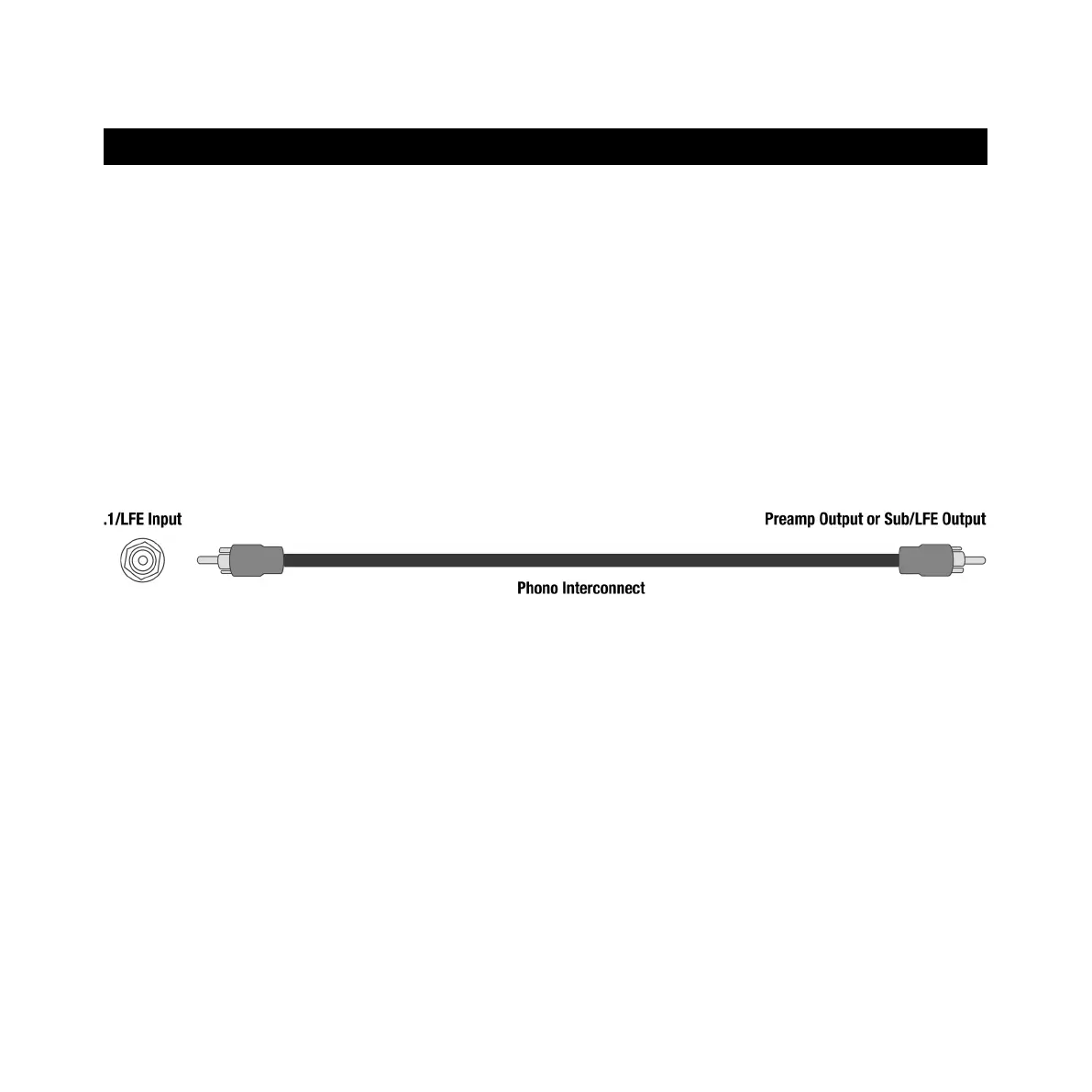

Connect RCA cable from Sub Out of theater processor to LFE input of HT/MKII.
• Adjust CROSSOVER control to 30Hz (minimum).
• Adjust LEVEL control to 1/4 of the rotaon up from minimum seng.
• Plug in AC cord.
• Power on with switch next to AC input.
• Set toggle above power switch to ALWAYS ON.
• Fine tune LEVEL control using a known powerful .1 chapter to make sure your seng is not too high or
damage can occur.
• Adjust CROSSOVER control lower to eliminate upper bass boom.
• DO NOT TURN CROSSOVER UP PAST 1/2 the rotaon. Doing so is unnecessary and may result in damage
to the driver.
REL Set-Up Made Simple
