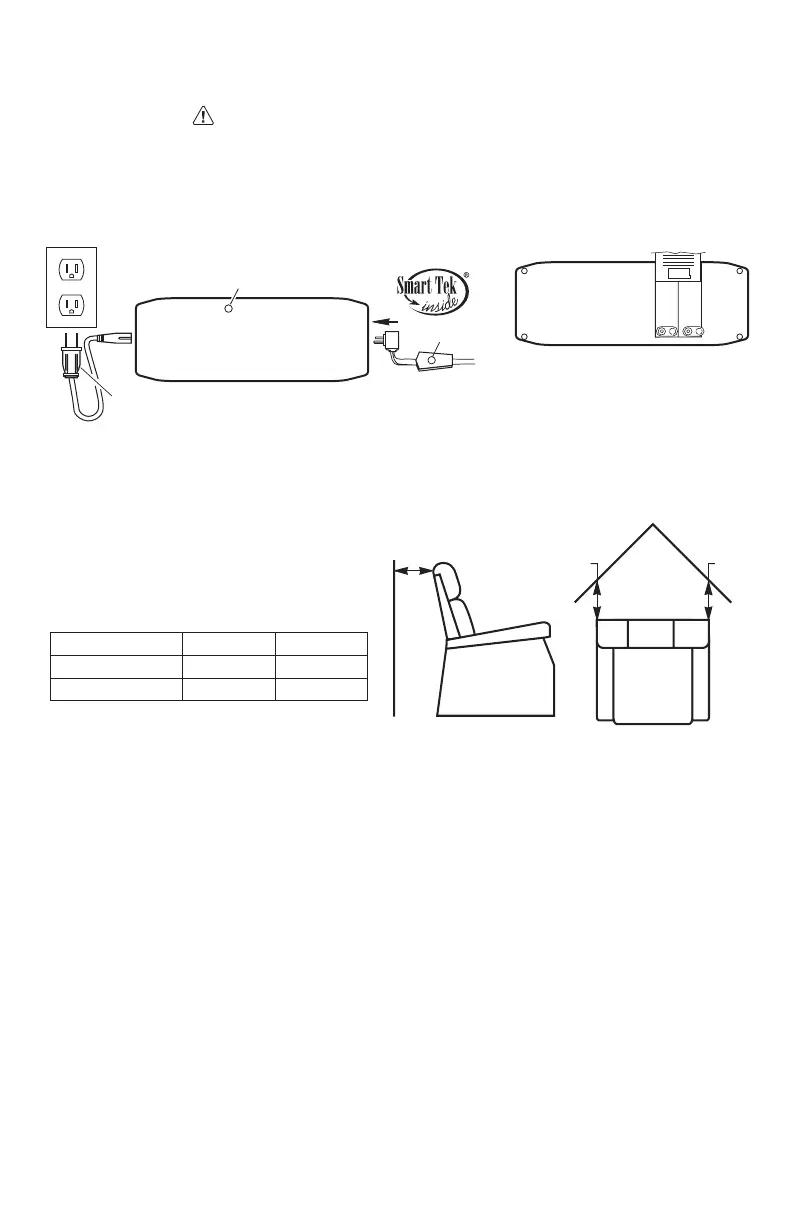

6
L.E.D. light
L.E.D. light
From motor
To outlet
DC Power
Bottom view of
Transformer
Transformer
Plug
Install two 9 volt batteries
in transformer for battery
backup (See page 10)
(batteries not included)
3. Place the chair in the desired position in the room, keeping it 25.5" away from
the wall. If placing the chair into a corner, keep it 25.5" from the wall as shown.
Wall
Side
View
Corner
To p
View
25.5"
25.5" 25.5"
Distance Required From
Wall When Reclined
Model Number Wall Corner
4. Adjust the leg levelers on the bottom of the chair if necessary to level the chair.
Some high pile carpets can obstruct the footrest operation by rubbing against
it. Adjust the levelers to a height above the pile.
5. Slide the hand control from between the back and arm out toward the back of
the chair. Secure the cord into the quick release cable clamp located above the
magazine pocket on the arm of the chair.
1. Remove the transformer from the transformer box (located behind the lower
outside back).
Place transformer on floor behind chair.
2. Plug the transformer into a 115-120V 60Hz A.C. outlet and connect the power
cable from the chair into the transformer as shown. Power cable is located under
the chair attached to the motor with white zip tie. Remove zip tie, extend the
cable under and out behind the chair.
PR-126M 27 in. 27 in.
PR-126L 27 in. 27 in.
PR-631 25.5 in. 25.5 in.
INSTALLATION FOR MAXICOMFORT MODELS
P
A
To Next Page
