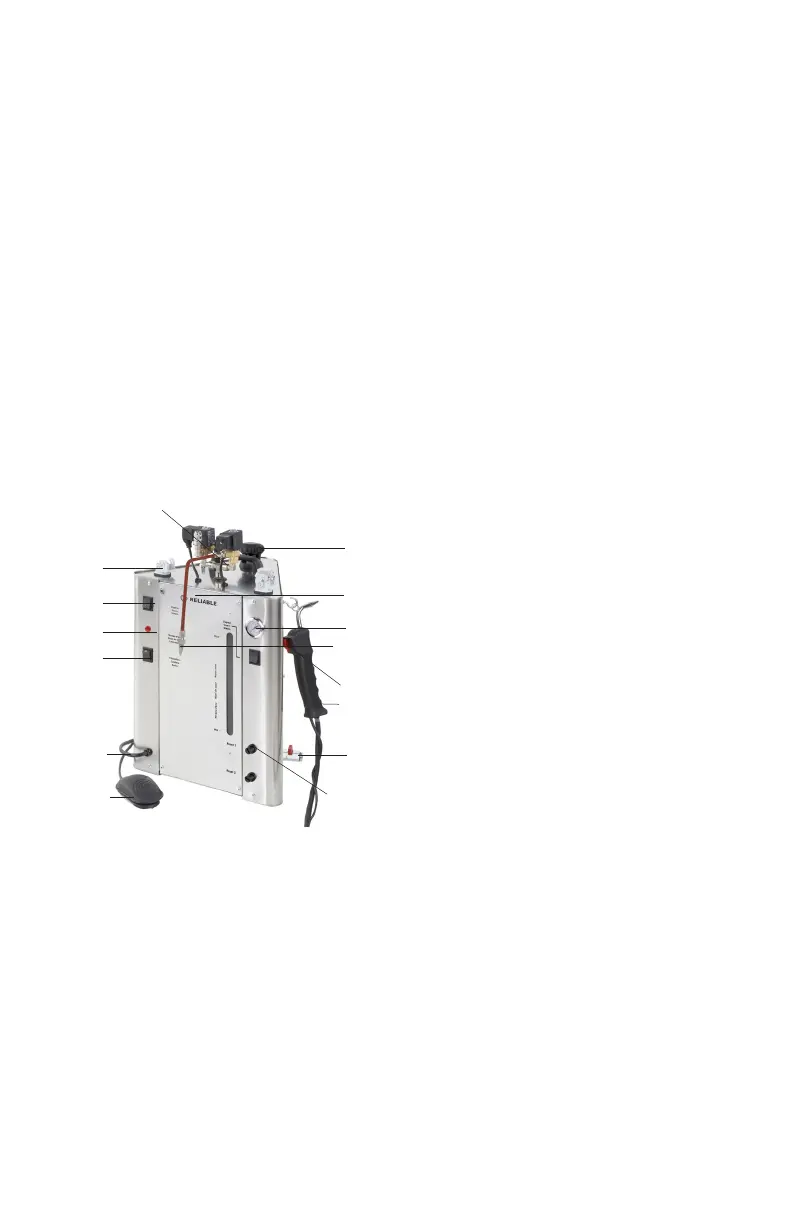

Description of the 7500BU
1. Safety cap
2. Steam switch
3. Boiler switch
4. Low water red pilot light
5. Power cord and plug
6. Steam regulation knob
7. Female 4-pin plug receptacle
8. Adjustable steam nozzle (7000CJ/ 7500CD)
9. Steam tip (7000CJ/7000CD/7500CD)
10. Exhaust valve
11. Foot pedal (7000CJ-7500CD)
12. Pressure gauge
13. Steam gun (7000CD-7500CD)
14. Steam gun switch (7000CD-7500CD)
15. Safety Reset
1
12
10
5
3
4
2
7
6
8
9
11
14
13
15
