33

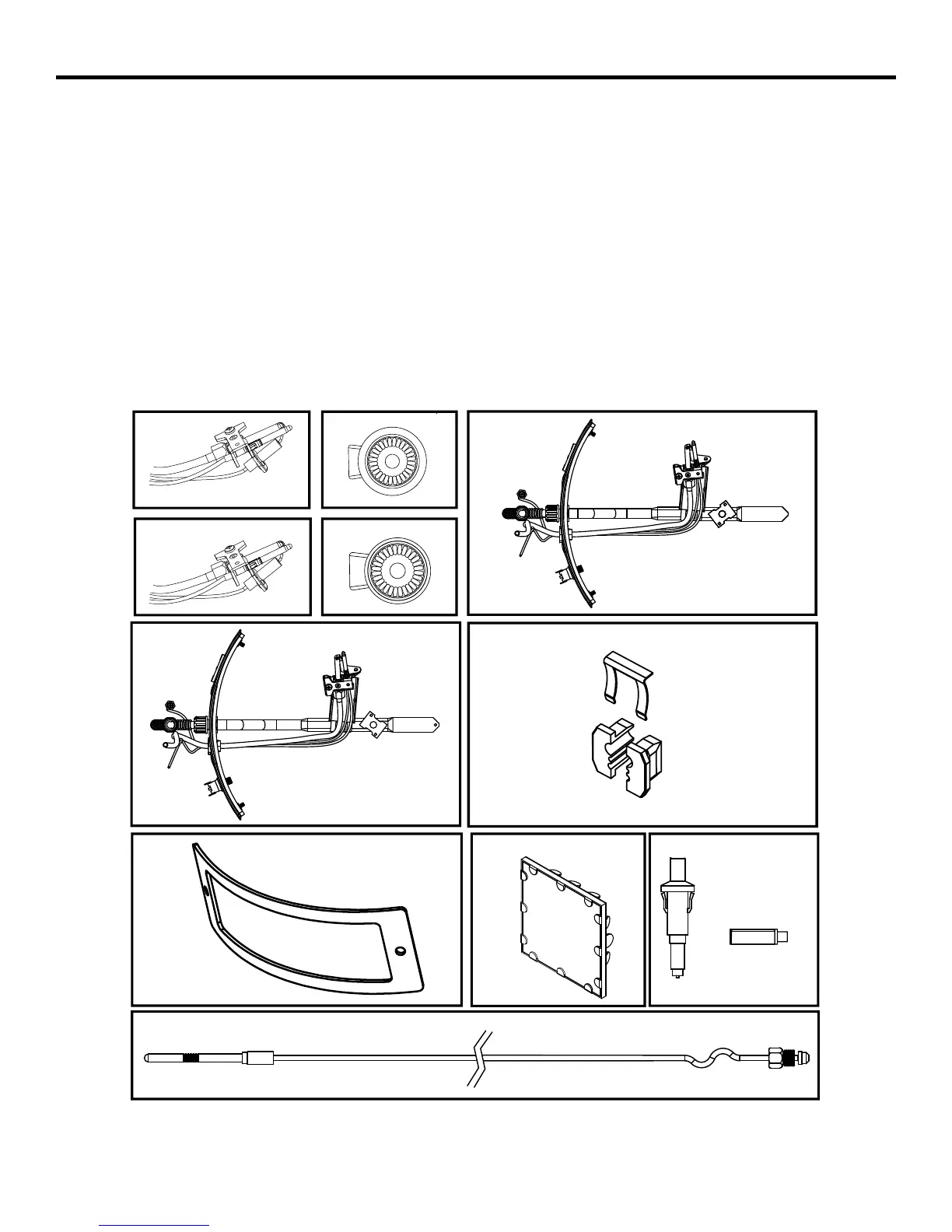

Listed Parts Kits and Illustrations
Item 12: Pilot/Pilot Tube Assembly kit, which contains the pilot assembly, thermocouple, igniter electrode and retainer clip
(Natural Gas)
Item 13: Pilot/Pilot Tube Assembly kit, which contains the pilot assembly, thermocouple, igniter electrode and retainer clip
(L.P. Gas)
Item 14: Burner (Natural Gas/Low Nox)
Item 15: Burner (L.P. Gas)
Item 16: Manifold door assembly which contains the manifold tube, gasket, door, pilot tube, thermocouple, two piece
wire connector with retainer clip, thermal switch, and pilot assembly. (Natural Gas/Low Nox)
Item 17: Manifold door assembly which contains the manifold tube, gasket, door, pilot tube, thermocouple, two piece
wire connector with retainer clip, thermal switch, and pilot assembly. (L.P. Gas)
Item 18: Contains two piece wire connector and retainer clip
Item 19: Contains manifold door gasket
Item 20: Contains view port
Item 21: Contains piezoelectric igniter button (NOTE: Igniter configuration and location may vary.)
Item 22: Contains thermocouple
Item # 19 Item # 20
Item # 21
Item # 22
Igniter Configurations
Item # 12
Item #13
Item # 14
Item # 15
Item # 16
Item # 17
Item # 18
