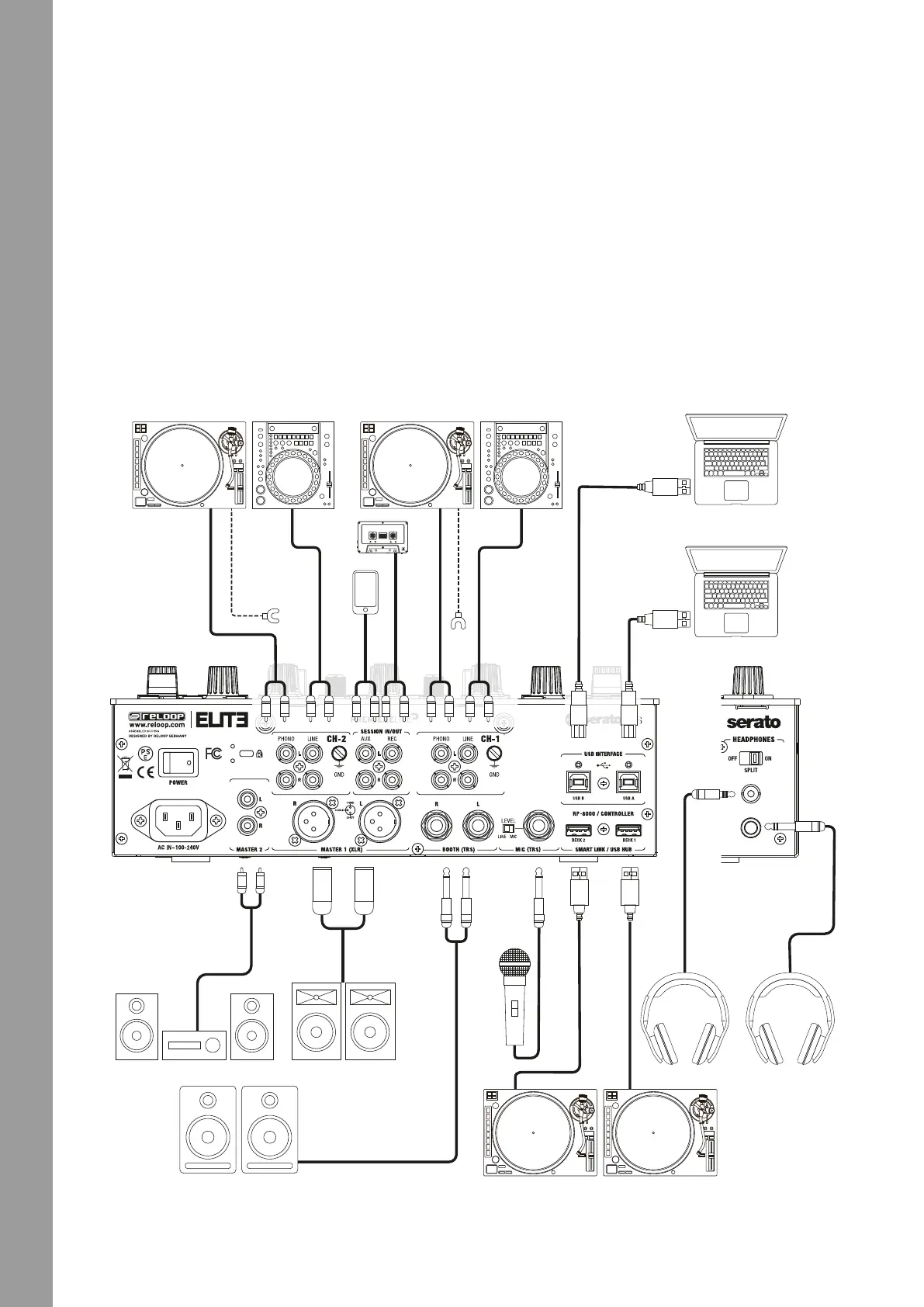

1.3 Connecting the ELITE
Line Signals
Connect your line sources (CD player, tape deck, controller, etc.) to the
corresponding line/CD channel inputs for channels 1 & 2 -G49-.
Phono Signals
Connect your phono sources to the corresponding phono channel inputs
of channels 1 & 2 -G49-.
Connect your grounding cable of your turntables to the GND grounding
screws.
Microphone
Connect your main microphone to the input for DJ Mic -G53-. Make sure
the Mic Level Switch is set to MIC when using a microphone. Select LINE
when connecting line level output devices.
Headphones
Connect your headphones to one of the Headphones Outputs -F45-.
Master Output
Connect your sound system to Master Out -G47- (RCA) or Master Out
Balanced (XLR) -G46-.
Monitor Output
Connect your monitoring system to Booth Out -G48-.
Rec Output
Connect a recording device of your choice to Record Out -G50-.
The Record Output provides a steady signal, independent from Master.
Aux Input
Connect to the output terminal of an external device (CD mixer, cont-
roller, etc.) -G50-.
Power Supply
Connect the power cable to the Power Connection -G55- and to your
power outlet.
USB Connection
You can connect up to two computers at the same time. Connect each
to either USB A input or USB B input -G51-.
RP-8000 / Controller USB connection
Connect your Reloop RP-8000MK2s or any MIDI device to the USB hub
connection -G52-
