Afficheurs et indicateurs (XFK - Renault)
DISPLAYS AND INDICATORS (2/6)

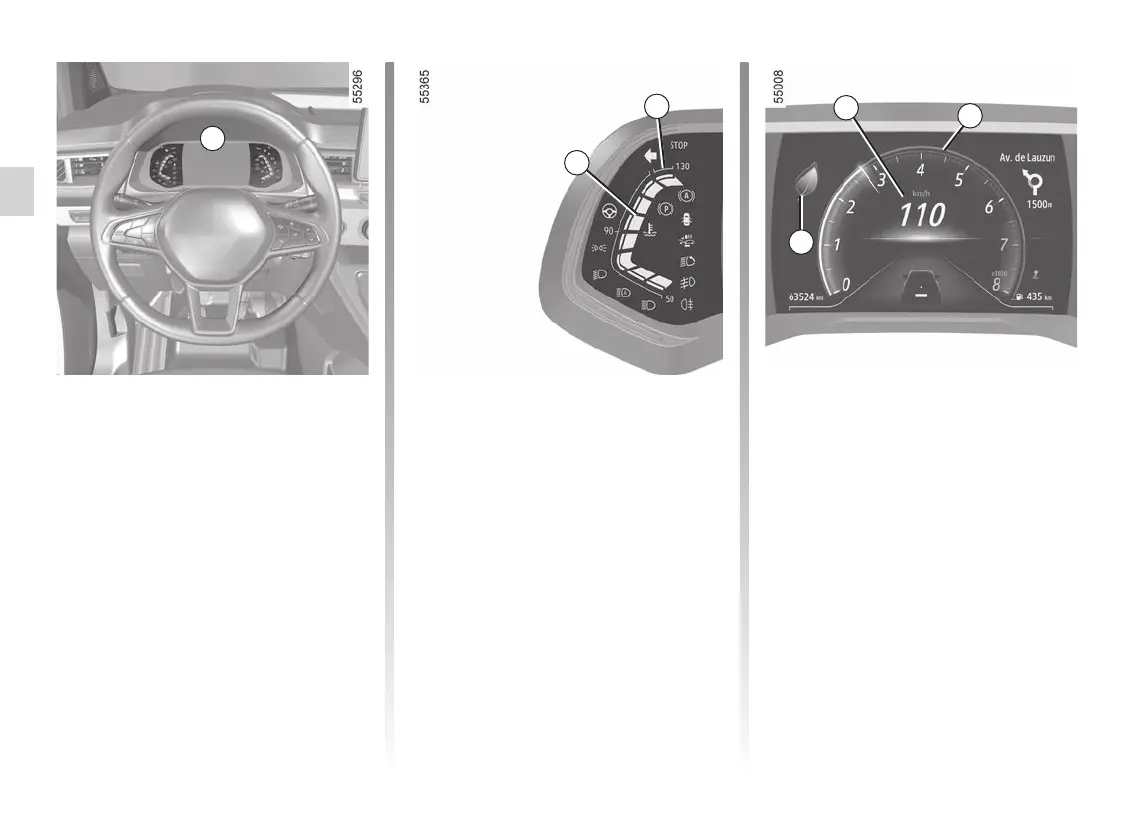

Instrument panel A
It lights up when the ignition is switched
on. In some cases, the appearance of a
warning light is accompanied by a mes-
sage.
Depending on the vehicle, you can cus-
tomise your instrument panel with the
content and colours of your choice.
For vehicles fitted with a multimedia
screen, refer to the multimedia instruc-
tions.
For vehicles not fitted with a multimedia
screen ➥ 1.115.
Overspeed buzzer
Depending on the vehicle and coun-
try, the warning light is dis-
played and a beep sounds. This beep
sounds as soon as the vehicle is trav-
elling at over 75 mph (120 km/h). This
warning light remains lit for as long as
the vehicle is travelling at over 74 mph
(120 km/h).
Rev counter 9
(graduations x 1000)
This is displayed differently according
to how the instrument panel is custom-
ised. Depending on the style selected,
it may not be displayed.
Driving style indicator 10 ➥ 2.21
Coolant temperature indicator 6
In normal use, indicator 6 should be
before area 7. Under “intensive” oper-
ating conditions, the needle may ap-
proach this zone. This is not serious
unless the warning light
® comes
on accompanied by a message on the
instrument panel and a beep.
Speedometer 8
Depending on the style selected, the
display varies.
