Transport d’objets dans le coffre (XFK - Renault)

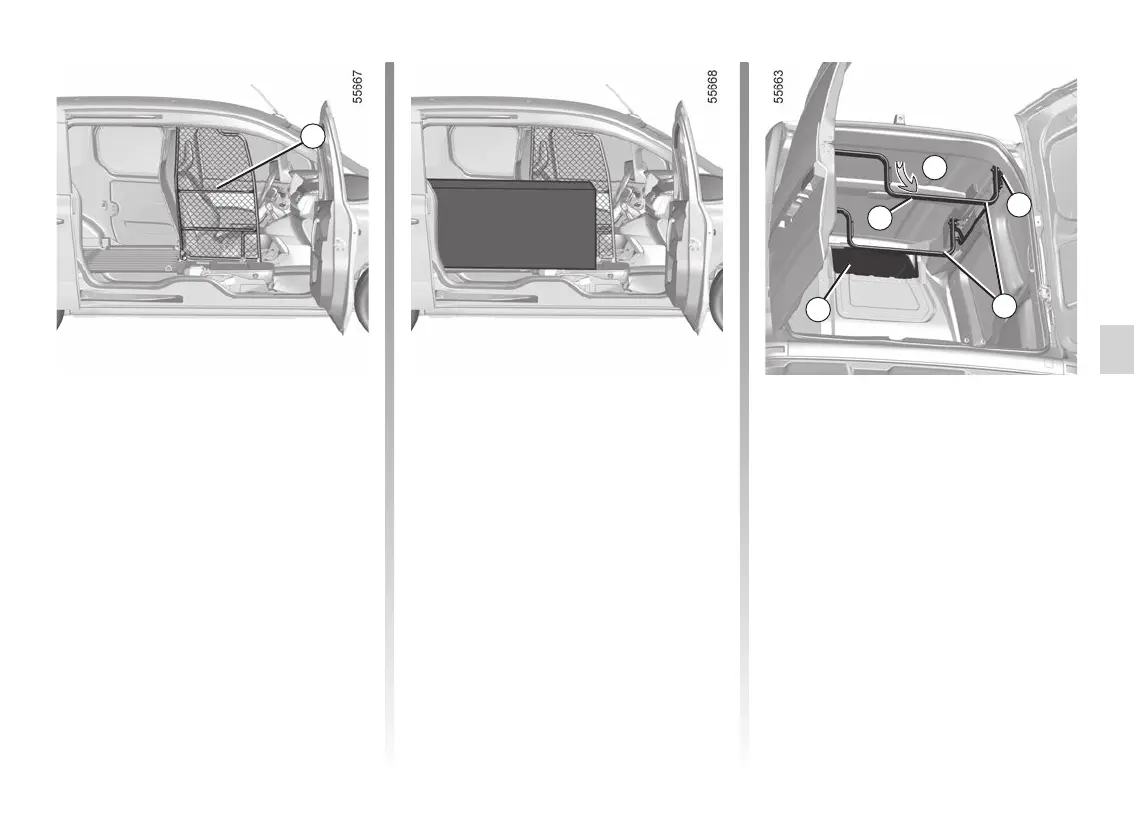

“Open Sesame” version
Depending on the width and length of
objects carried in the rear load area,
use the front passenger door and slid-
ing side door openings.
TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT (3/4)
4
To do this, pivot the partition 4. Please
observe the procedure when pivoting
the partition. ➥ 1.40.
Recess 8 and roof rack 7
(depending on the vehicle)
Depending on the length of the objects
being transported in the rear load area,
you can use the recess 8 or the roof
rack 7.
Position for use
With the roof rack in the storage po-
sition, pull the lever 6 downwards to
unlock the roof rack, then hold the roof
rack bar 5 and pull it towards you until it
locks (movement C).
The roof rack locks automatically.
Check that the bonnet is correctly
locked.
7
6
C
8
5
