Cloison de séparation pivotante (XFK - Renault)

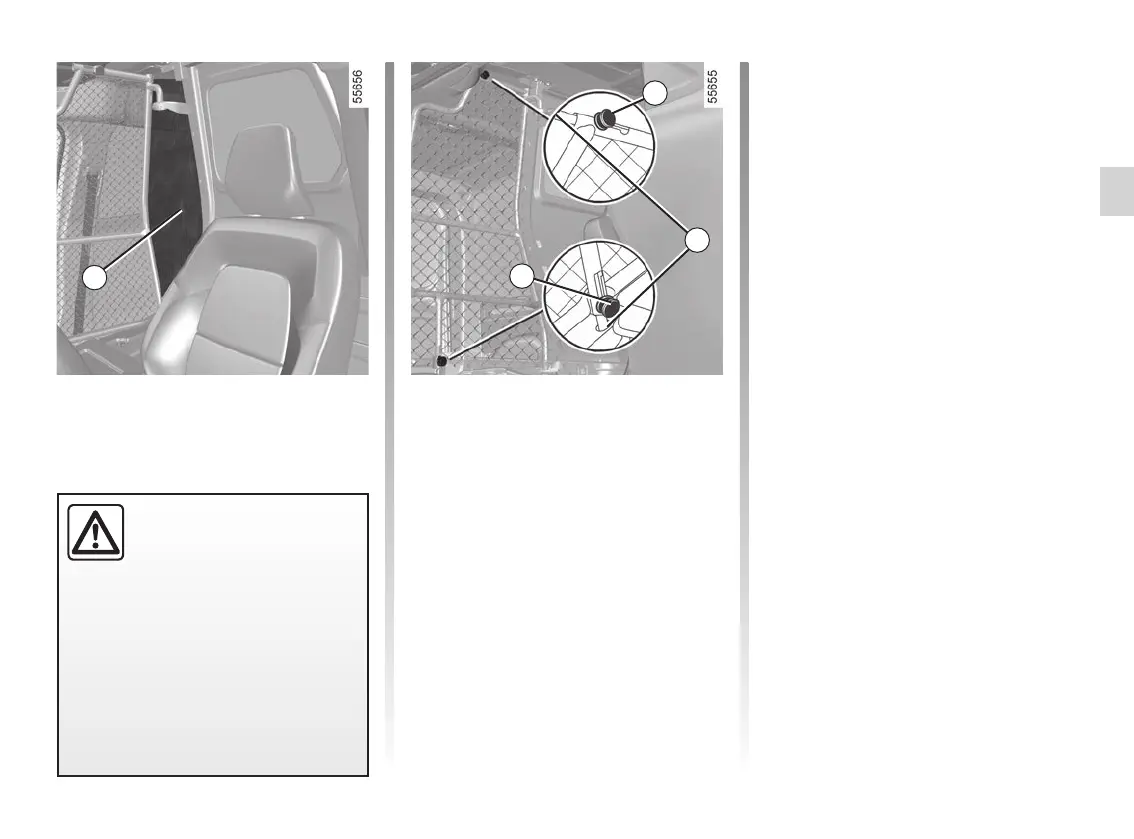

Before returning the partition to its initial
position, set catches 1 and 2 to the un-
locked position.
Reset the swivelling section to the ini-
tial position, lock the 2 catch and then,
the 1 catch. Make sure that catches 1
and 2 are locked correctly.
SWIVELLING PARTITION (2/2)
5
4
2
1
When using the pivoted
partition, the protective
net 4 must not be removed
or disassembled, even par-
tially.
Risk of injury due to the projec-
tion of objects from the rear load
area during braking.
Note: before returning the swivelling
section to its initial position, check that
the locking points 5 are clean.
