Air conditionné manuel (BCB - Renault)
Manual air conditioning
MANUAL AIR CONDITIONING (1/5)
Some buttons have an operating
tell-tale which indicates the operat-
ing status.

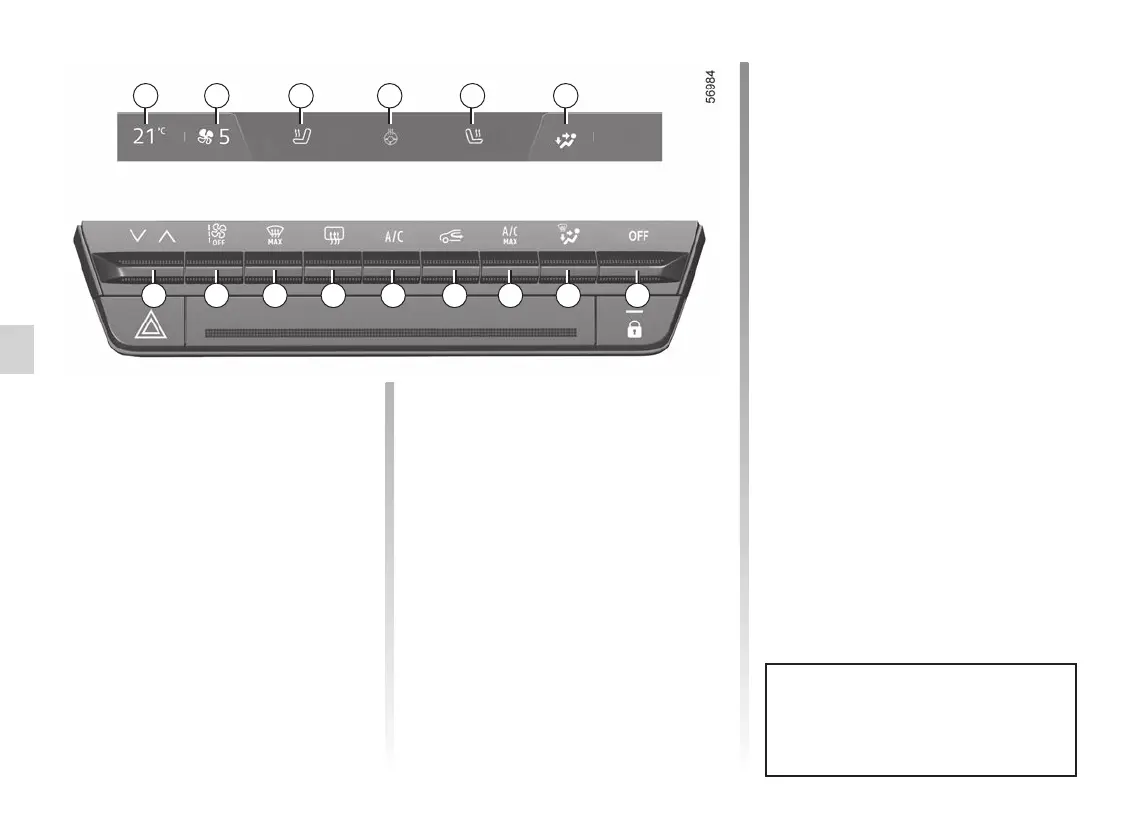

15 14 13 12 11 10 9 8 7
1 2 3 4
5
6
7 System off control.
8 Passenger compartment air distribu-
tion adjustment.
9 Activationcontrolforthe“A/CMAXˮ
function.
10 Air recirculation.
11 Air-conditioning activation control.
12 De-icing/demisting of the rear
screen and, depending on the vehi-
cle, the rear view mirrors.
13 “Clear View” function.
14 Adjusting the ventilation speed and
stopping the system.
15 Adjusting the driver’s air tempera-
ture.
The controls
1 Driver’s heating temperature indica-
tor.
2 Ventilation speed indicator.
3 Driver’s heated seat activation con-
trol.
4 Heated steering wheel activation
control.
5 Passenger’s heated seat activation
control.
6 Distribution of air in the passenger
compartment indicator.
To Next Page
