E17-1 Features - servicing
EATURES - SERVICING
Steering
Steering types
Hydraulic power assisted
System oil capacity
Filter cartridge replacement
Remove all soundproofing screens that may
risk becoming soiled.
(See page E6-1).

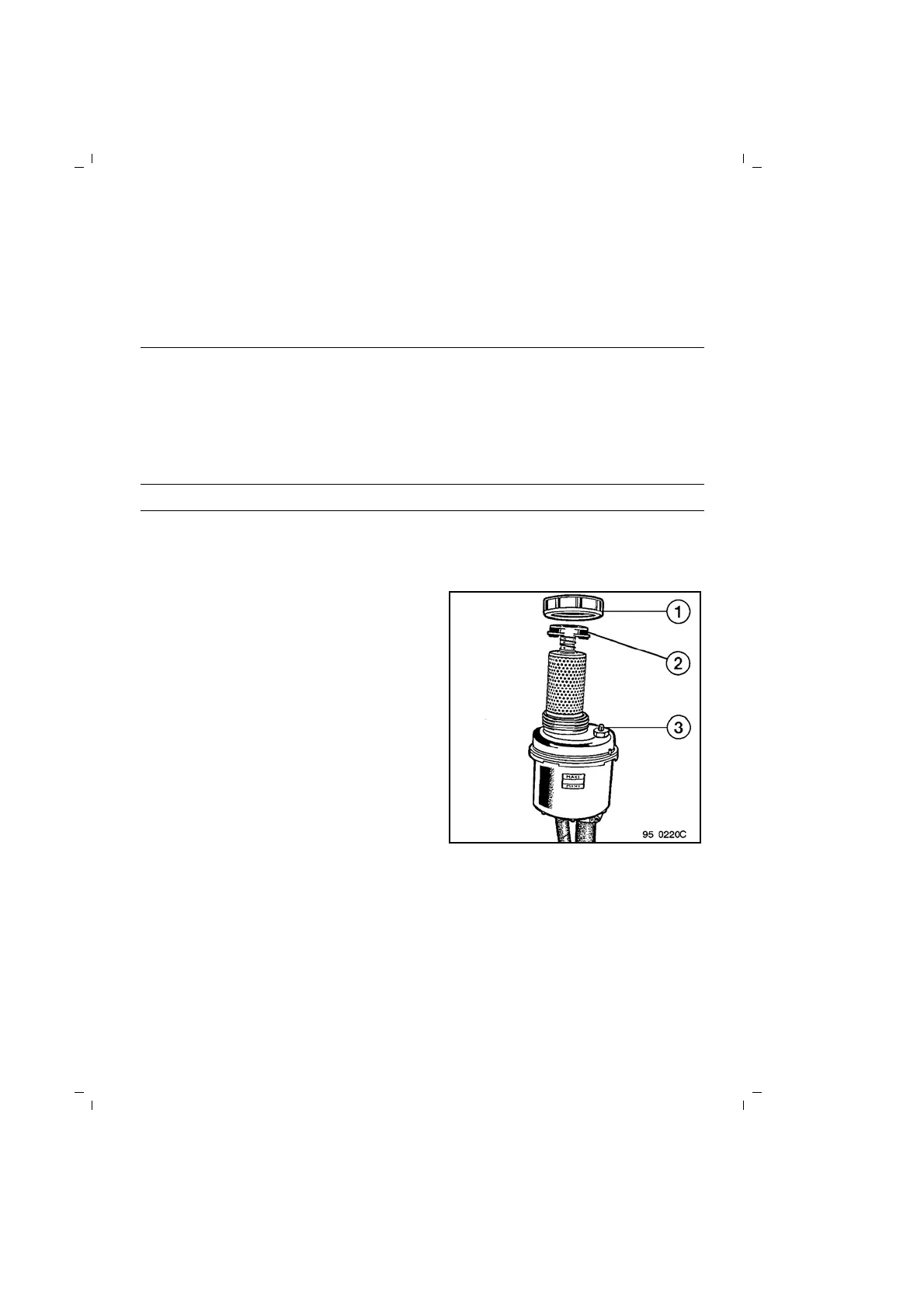

Remove filler cap (1). Press and turn handle (2)
through 1/4 of a turn.
Withdraw the cartridge unit. Fit a new car-
tridge, press and turn handle (2) through 1/4 of
a turn so as to engage it under the catches on the
reservoir. Check oil level (3).
When the work is finished, refit the sound-
proofing screens correctly in place.
(See page E6-1).
ZF 8098
Litres
Power steering hydraulic system 4
