MANUAL GEARBOX
Repairing the gearbox
21
21-7
Repairing the gearbox
REMOVAL

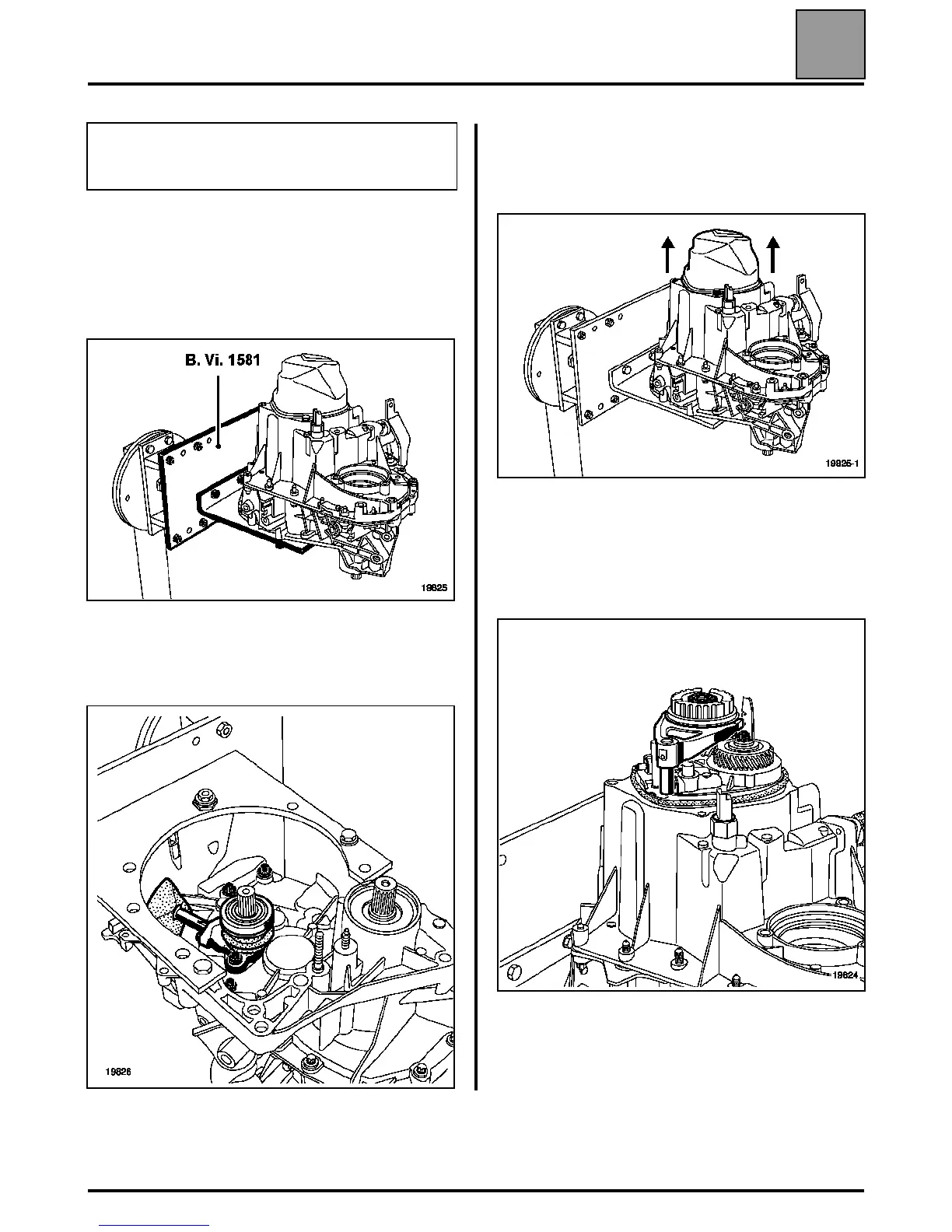

Fit support plate B. Vi. 1581 on a Desvil shoe.
Fit the gearbox on the B. Vi. 1581 support.
Remove:
– the clutch slave cylinder,
– the bolts located inside the housing,
– the rear housing. This must be removed along the
horizontal axis of the gearbox because it has a
lubrication spline which is located in the primary shaft
bore.
Select 1
st
gear using the gear lever and 5
th
gear by
sliding the 5
th
gear fork along its shaft.
Remove the secondary shaft bolt and the primary shaft
nut.
Removing and handling the parts must be carried
out on a workbench with a knockproof cover
(thick rubber or plastic).
19825
19826
19825-1
19824
