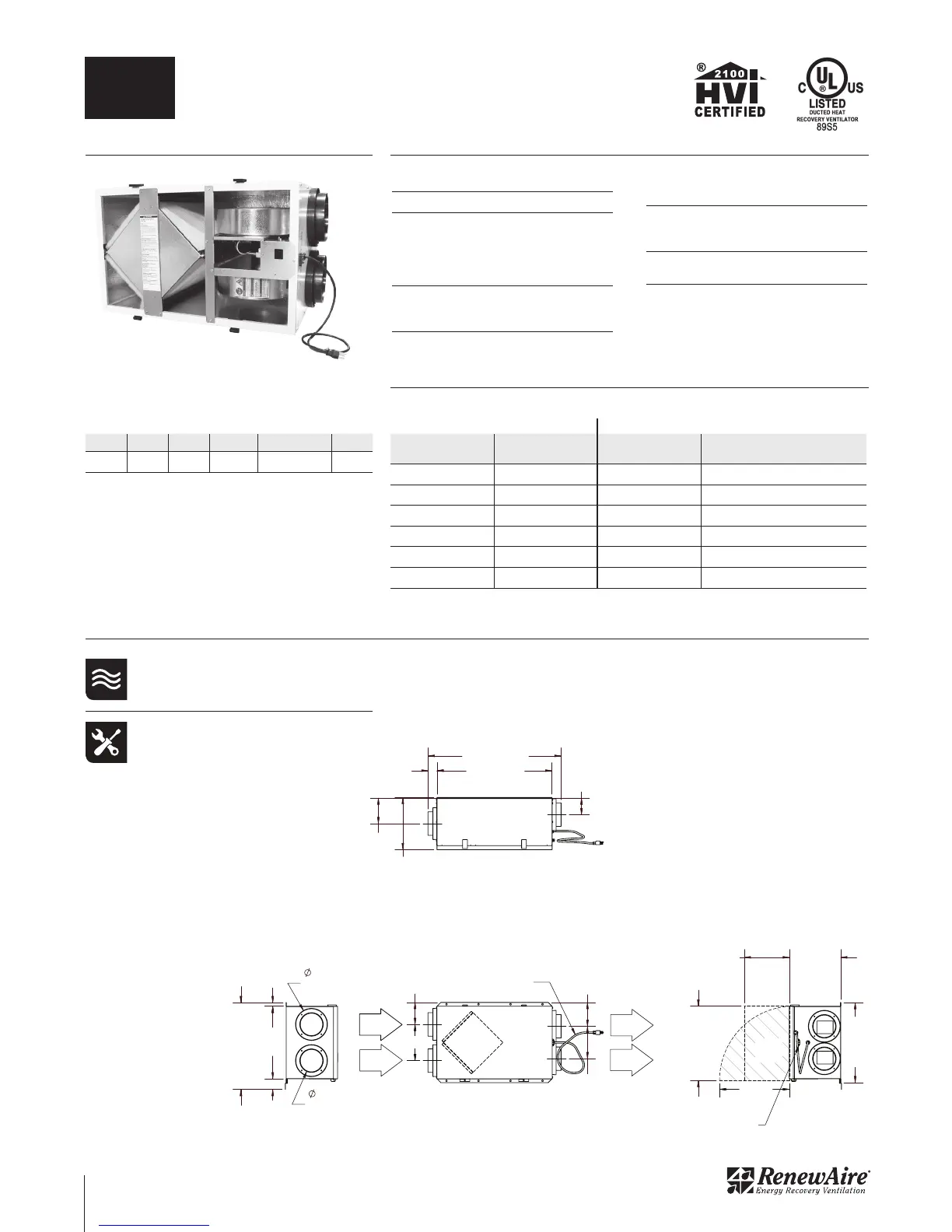

Renewair EV130 - Indoor Unit; Specifications; Electrical Data; Unit Dimensions

RENEWAIRE.COM INSTALLATION, OPERATION AND MAINTENANCE MANUAL 1.800.627.4499
4
9
FOR THE MOST COMPLETE AND CURRENT INFORMATION VISIT RENEWAIRE.COM
EV-SERIES & GR
Specifications may be subject to change without notice.
INDOOR UNIT
EV 130
SPECIFICATIONS
Ventilation Type:
Static plate, heat and humidity transfer
Typical Airflow Range: 50-140 CFM
Standard Features:
Painted cabinet
Line-cord power supply
Low-voltage circuit for controls
Unit may be mounted in any orientation
Controls:
On board 24 VAC transformer/relay package
with switched dry contacts
Filters:
Total qty. 2, MERV 8, spun-polyester media:
10 1/2" x 10 1/2" x 1"
Unit Dimensions & Weight:
33 1/2" L x 13 1/4" W x 20" H
48 lbs.
Max. Shipping Dimensions & Weight (in carton):
32" L x 22" W x 18" H
60 lbs.
Motor(s):
Qty. 1, Double-shaft standard motor
Accessories:
Backdraft damper 6"
Wall cap 6" - white, brown
Percentage timer control (PTL)
Push-button point-of-use controls (PBL), PTL req'd.
Percentage timer control with
furnace interlock (FM)
ELECTRICAL DATA
HP Volts HZ Phase Input Watts FLA
0.1 120 60 Single 102 @ 130 CFM 1.3
UNIT PERFORMANCE CORE PERFORMANCE
Airflow CFM ESP in H
2
0 Temp EFF%
Total EFF%
Winter/Summer*
79 0.60 78 73/60
104 0.50 75 69/55
126 0.40 72 66/50
137 0.30 71 64/48
153 0.20 68 61/45
165 0.10 67 59/43
6" Typ.
8 1/8"
5 1/2" Typ.
9"
OA
EA
RA
FA
34" Line Cord
28 3/4" Case
33 1/4" Overall
2 1/4" Typ.
6 3/8" Typ.
13 1/8" Overall
(with Hanging
Bracket)
4 1/8" Typ.
18 1/8"
Case
2 5/8"
7/8"
8"
Nominal
Typ.
21 3/4" Overall
(with Hanging
Bracket)
6"
Nominal
Typ.
20" Overall
12 7/8"
Case
11 1/4" Minimum
Service Area
(Door can be
Removed from
Hinges.)
18 1/2"
Minimum
Service Area
17 1/2"
Door
Swing
24V AC
Control
Terminal
LEFT VIEW FRONT VIEW
RIGHT VIEW
TOP VIEW
Model: EV130
Drawing Type: Unit Dimension
Version: MAR16
ABBREVIATIONS
EA: Exhaust Air to outside
OA: Outside Air intake
RA: Room Air to be exhausted
FA: Fresh Air to inside
INSTALLATION ORIENTATION
Unit may be installed in any
orientation.
NOTE
1.UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE ROUNDED TO THE
NEAREST EIGHTH OF AN INCH.
2.SPECIFICATIONS MAY BE SUBJECT
TO CHANGE WITHOUT NOTICE.
UNIT DIMENSIONS
EV-SERIES & GR
AIRFLOW CONFIGURATION
Available as shown in dimension drawing.
UNIT MOUNTING & APPLICATION
Can be mounted in any orientation. RA/EA airstream
can be switched with OA/FA airstream.
* See HVI certification ratings on page 135 of RenewAire’s Full Line Volume XVI Catalog.
STANDARD
Note: Electric Duct Heater is not available on the EV130.
Specifications may be subject to
change without notice.
