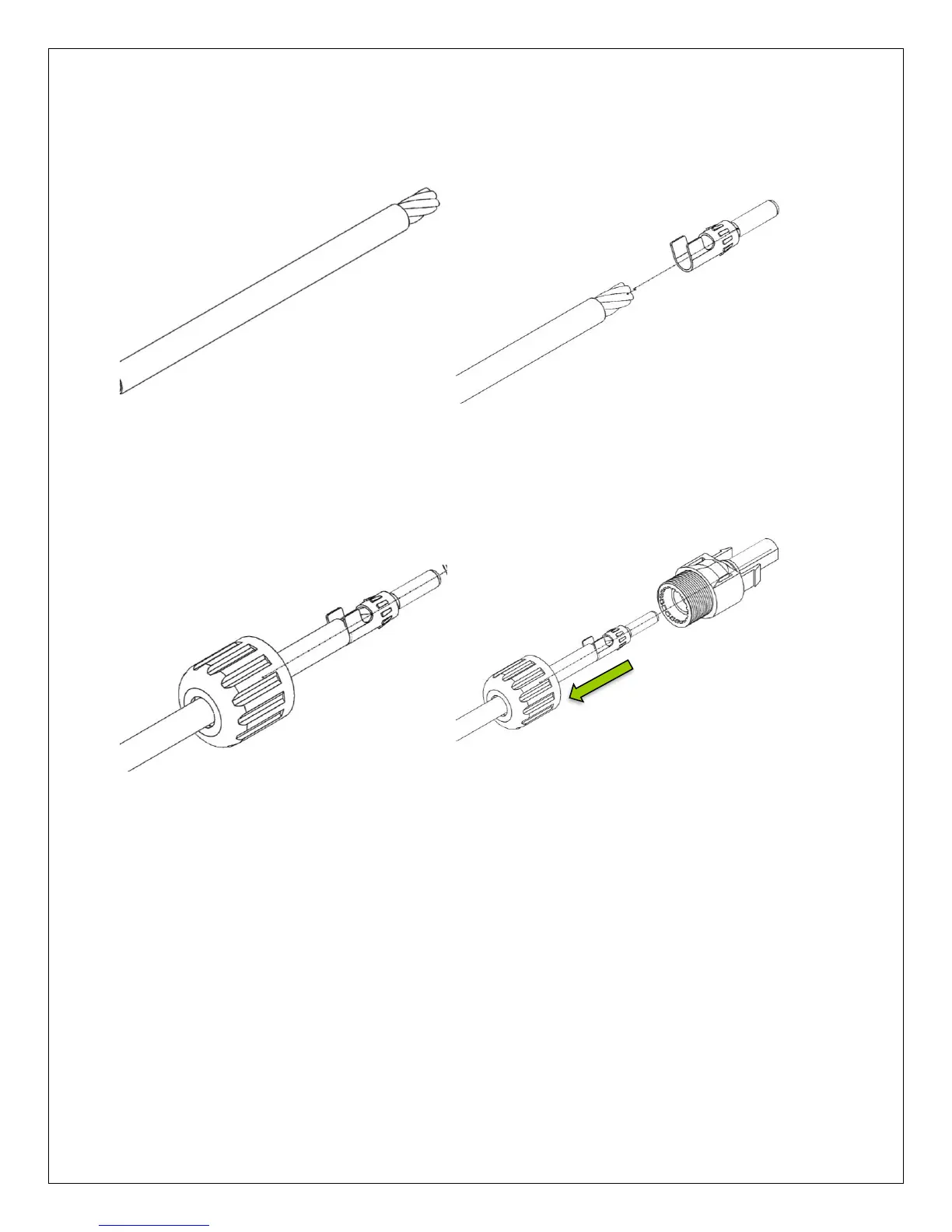

1. Strip wire, insert silver platted copper piece into exposed wire and
crimp
2. Insert base of MC4 connector through wire then tighten with head of
MC4
3. After initial tightening, insert the nose of the MC4 connector head
through the middle hole of the MC4 tool
