Reolink Duo 2 PoE User Manual

11 12

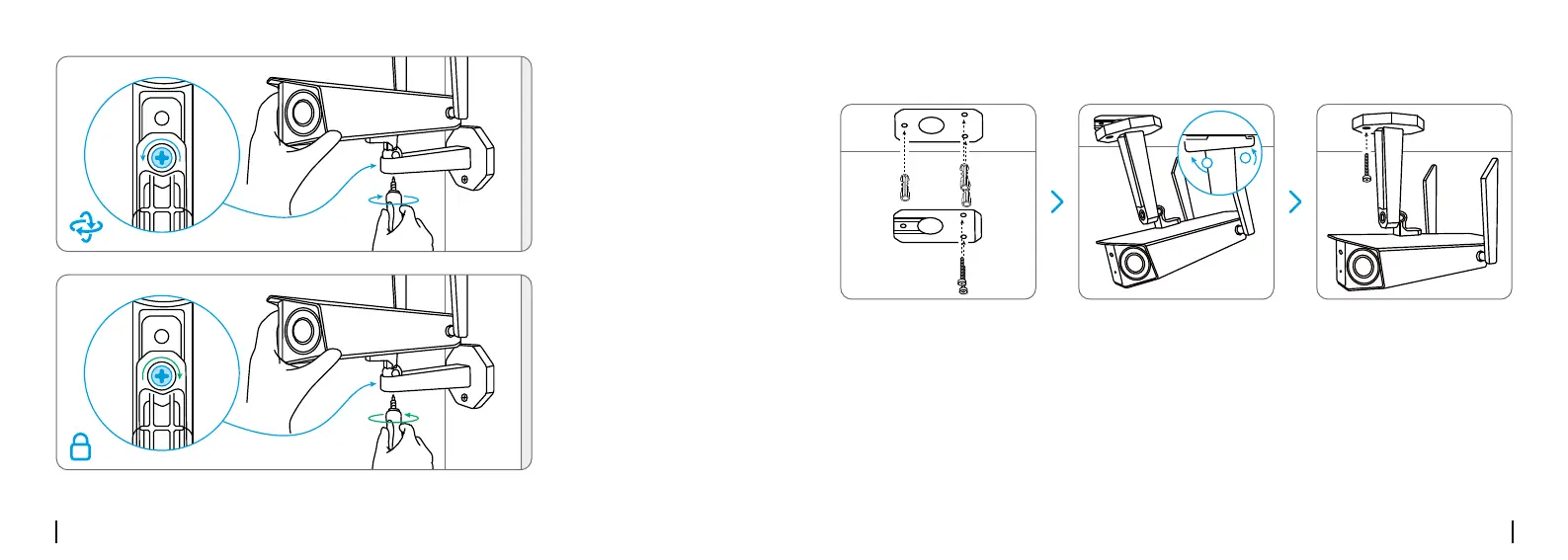

Togetthebesteld
ofview,loosenthe
adjustment screw on
securitymountand
turn the camera.
Stientheadjustment
screw to lock the
camera.
RST RST
RST
RST
2
1
2
1
RST RST
RST
RST
2
1
2
1
Mount the Camera to Ceiling
Drillholesinaccordancewiththemountingtemplate,Securethemountingplatetothewall
withtheuppertwoscrewsandhangthecameraonit.Thenlockthecamerainposition
withthelowerscrew.
RST RST
RST
RST
2
1
2
1
RST RST
RST
RST
2
1
2
1
RST RST
RST
RST
2
1
2
1

Reolink Duo 2 PoE Specifications

General

Image Sensor	1/2.7" CMOS Sensor
Night Vision	Yes
Color Night Vision	Yes
Connectivity	Ethernet
Audio	Built-in microphone and speaker
Weatherproof Rating	IP66
Smart Detection	Person/Vehicle Detection
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Lens	f=2.8mm
Field of View	180°
Infrared Night Vision	Up to 30 meters
Power Source	PoE (Power over Ethernet)
Storage	MicroSD card (up to 256GB), Reolink NVR
