Reolink Video Doorbell WiFi User Manual

English English5 6
Step 1DownloadandinstalltheReolinkClient.Gotohttps://reolink.com>
Support>App&Client
Step 2 Power on the video doorbell with an Ethernet cable.
Step 3 Launch the Reolink Client. Click the “ ” button and input the UID
numberofthedoorbelltoaddit.
Step 4Followtheonscreeninstructionstonishtheinitialsetup.
Set up the Doorbell
Set up the Doorbell on Phone
*The Reolink Video Doorbell PoE is taken as an example.
NOTE: Ifyou’reusingtheReolink
VideoDoorbellWiFi,youneedto
connect it to the power adapter
oryourexistingdoorbellwiring
to power it on.

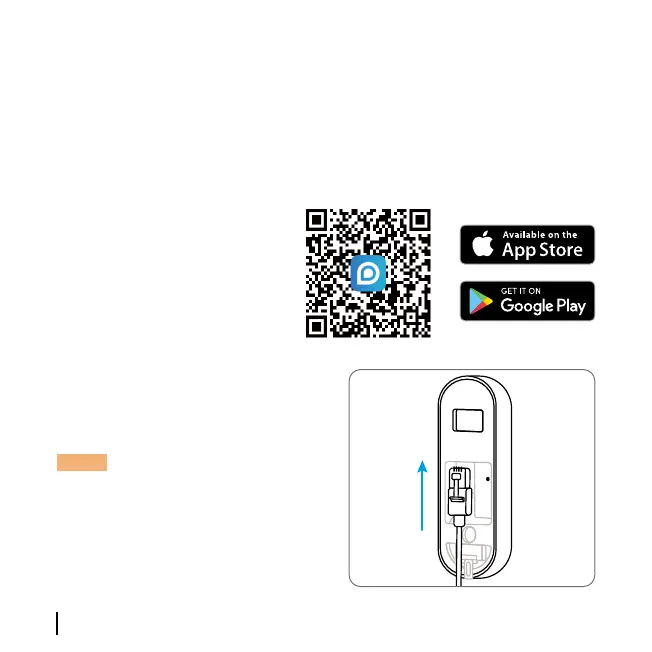

Step 1 Scan to download the
ReolinkAppfromtheApp
StoreorGooglePlayStore.
Step 2 Power on the video
doorbell with an Ethernet cable.
Step 3LaunchtheReolinkApp.Clickthe“”buttoninthetopright
corner and scan the QR code on the doorbell to add it.
Step 4Followtheonscreeninstructionstonishtheinitialsetup.
POE Micro SD
RST
LAN Micro SD
RST
POE
Devices
Cloud
You haven't added any device. Please click
the"+"button in the top right corner to add
1
2
1
2
POE Micro SD
RST
LAN Micro SD
RST
POE
Devices
Cloud
You haven't added any device. Please click
the"+"button in the top right corner to add
1
2
1
2
Set up the Doorbell on PC (Optional)

Reolink Video Doorbell WiFi Specifications

General

Audio system	2-way
Mounting type	Wall
Product color	Black, White
Housing material	Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC)
Number of melodies	10
Illuminated push button	Yes
Number of main unit included	1 pc(s)
Number of ringer volume levels	5
Compatible memory cards	MicroSD (TransFlash)
Video formats supported	H.264
Maximum memory card size	256 GB
Megapixel	5 MP
Sensor type	CMOS
Image sensor size	1/2.7 \
Fixed focal length	2.26 mm
Maximum frame rate	20 fps
Diagonal field of view	180 °
Vertical field of view	97 °
Maximum aperture number	2
Horizontal field of view	134 °
Maximum video resolution	2560 x 1920 pixels
Frequency	433 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
RJ-45 ports quantity	1
Connectivity technology	Wired & Wireless
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTPS, IPv4, UPNP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Mobile operating systems supported	Android, iOS
Input voltage	24 V
DC input voltage	12 - 24 V
Power source type	DC
AC input frequency	50/60 Hz
Warranty period	2 year(s)
Operating temperature (T-T)	-10 - 50 °C
Operating temperature (transmitter)	10 - 90 °C

Weight and Dimensions

Depth	23 mm
Width	48 mm
Height	133 mm
Weight	96 g
Bell depth	66 mm
Bell width	29 mm
Bell height	86.5 mm
