TangenX
TM
SIUS
TM
PD Filter Plate & 2-Bolt Clamp Assembly
User Guide
Identification IF.PUG.019
Revision R2
Approved 20-DEC-2018
1. Diagram
Filter Area: 0.01 m² to 0.06 m² (TFPLS-LVFL) Clamp Weight: 13 lbs
0.1 m² to 0.5 m² (TFPLS-SA08)
Max Cross Flow: 0.48 LPM (TFPLS-LVFL) Clamp Weight (loaded): 13 lbs to 20 lbs
9 LPM (TFPLS-SA08)
Filter Plate Certificate: Provided with each FPI kit

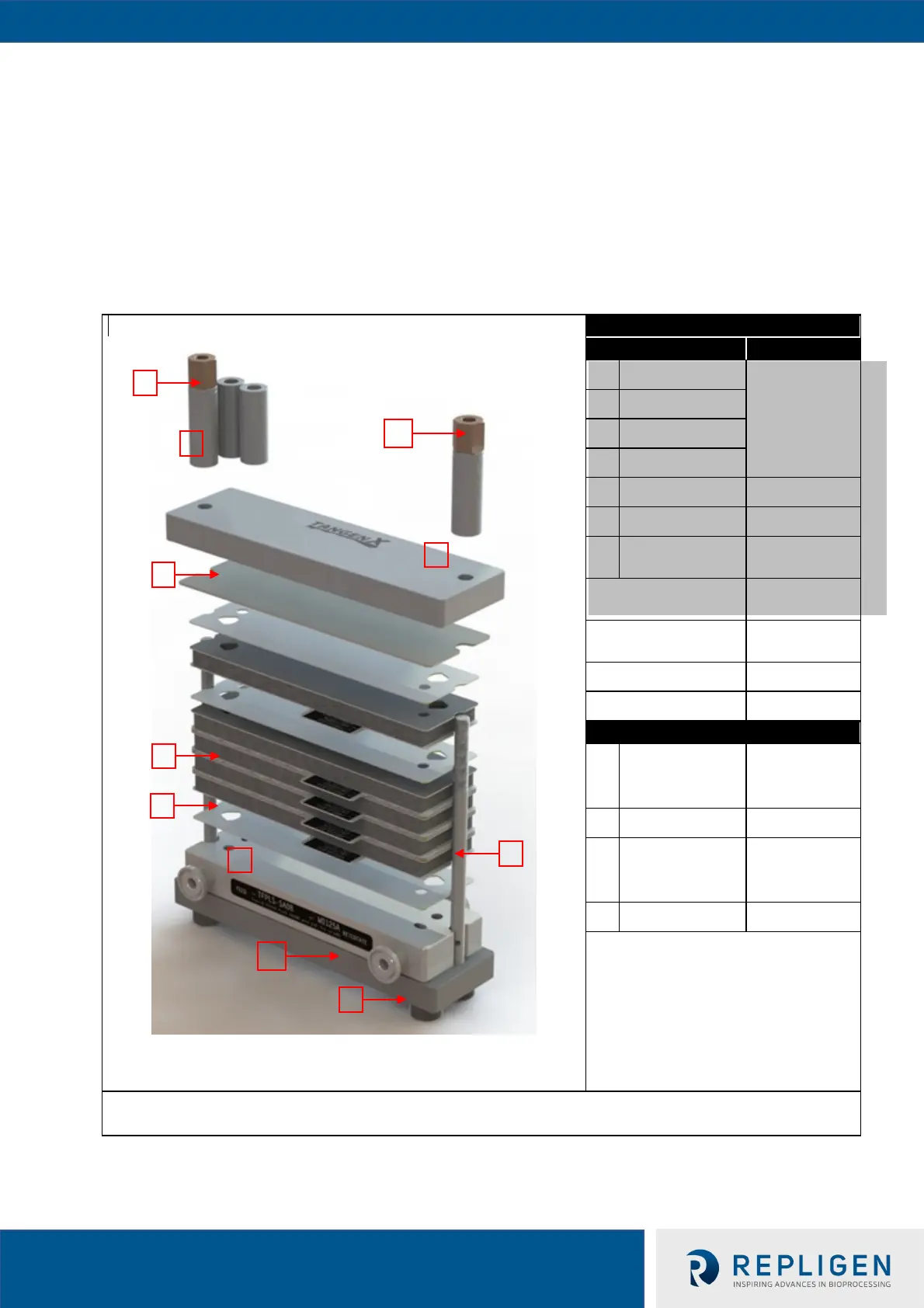

Figure 1.1 Diagram, Materials, Consumables
TSLDI-2BMC
MATERIALS
1
Plates (2)
Type 304
Stainless Steel
2
Threaded Rods (2)
3
Spacers (4)
4 Washers (2)
5 Hex Nuts (2) Silicon Bronze
6 Footpad (4) Rubber
7
Footpad
Screw
(a)
(4)
18-8 Stainless
Steel
Compatibility
(c)
TangenX™ SIUS™
Packet / Cassette
Torque Range
(b)
120-180 in-lbs
(14-20 N-m)
Hydraulic Option
No
Hex Socket
11/16"
CONSUMABLES
8
Filter Plate
TFPLS-LVFL
(d)
TFPLS-SA08
(c)
Polypropylene
9
Isolation Plate
Polypropylene
10
TangenX™ SIUS™
PD
LP1L, J or K
(e)
LP2L, J, or K
(e)
L01L, J, or K
11
Gasket
EPDM
(a) Not Shown
(b) Always check and re-torque, if necessary,
your holder prior to use.
(c) NOT COMPATIBLE with Millipore, Sartorius
and GE re-usable cassettes.
(d) COMPATIBLE with Millipore, Sartorius and
GE re-usable packets.
(e) Use TFPLS-LVFL for all LP1 and LP2 TangenX™
SIUS™ PD in order to minimize holdup
volume.
TSLDI-2BMC is not in contact with process fluid.
The process fluid is isolated from contact with stainless steel by Filter Plate Insert and Isolation Plate.
1
3
2
4
8
9
11
10
6
1
5
