OPTIONAL WAND LIGHTING
9
Wand Lighting
Installation Guideline for Altea/Telemaco
• Optional light fixture must be installed before headboard
• Drill 1/2” hole at 10 1/4” above headboard and 1 1/2” in from the side
• Install mounting Plate with provided wood screws, aligning the 1/2” drill holes

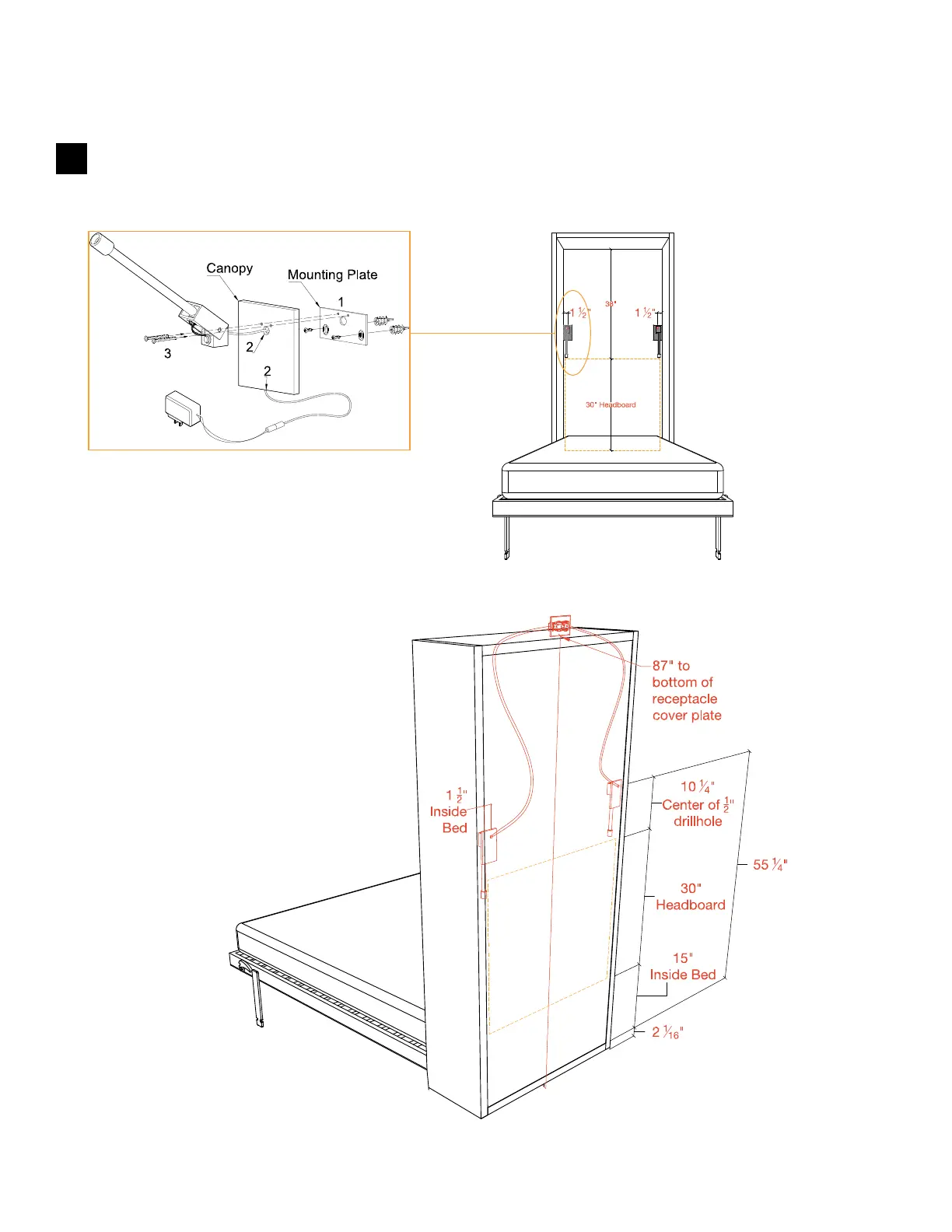

Wand Light Exploded Diagram
Cord Length = 118”
Front
Back
7
• Optional light fixture must be installed before headboard (see page 24-25 for details)
• Drill 1/2” hole at 10 1/4” above headboard and 1 1/2” in from the side
• Install mounting Plate with provided wood screws, aligning the 1/2” drill holes
