The ArcadeR circuit board
There are currently two versions of the circuit board used in the
ArcadeR, version 1.5b and 1.5c. In some cases, making
modifications to your joystick may require making changes to

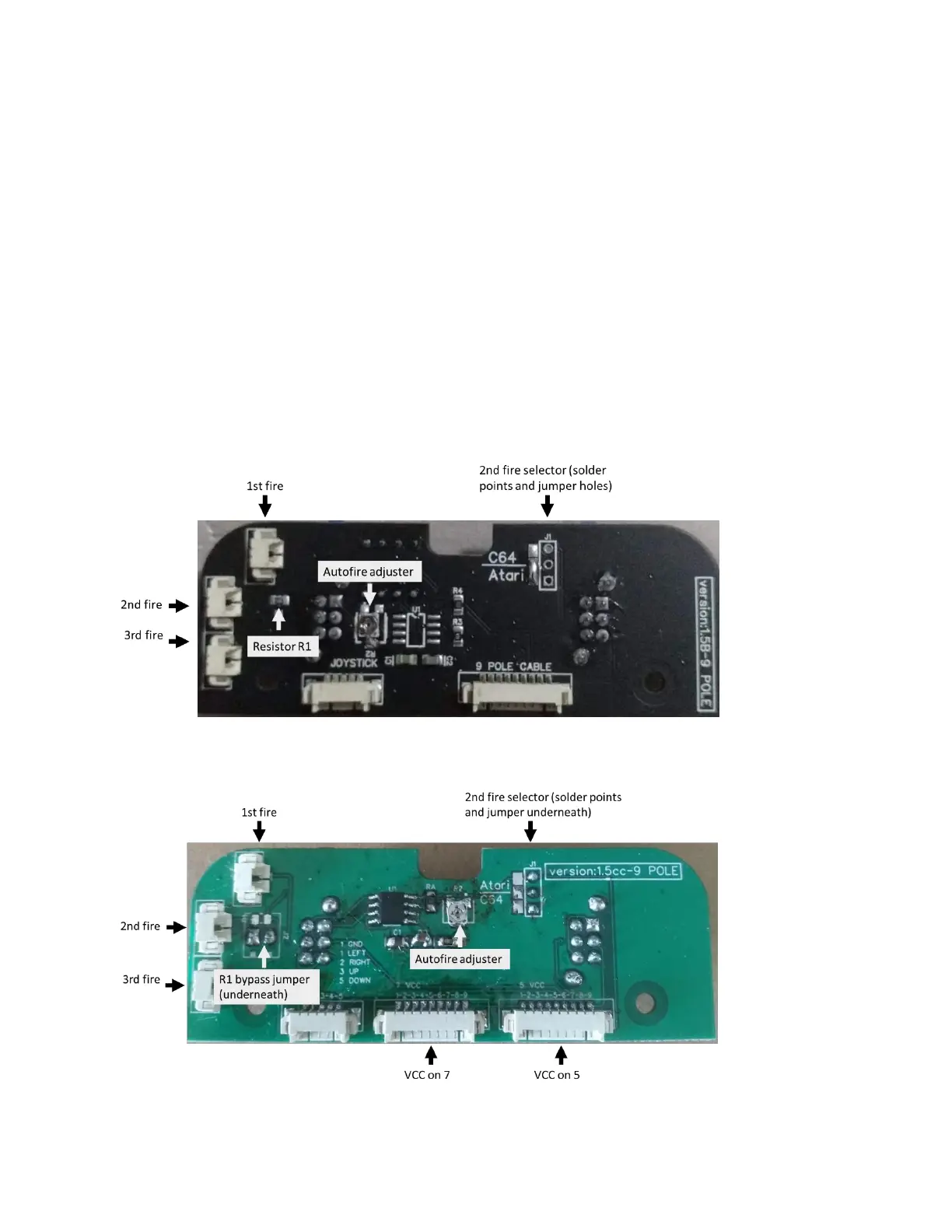

the circuit board itself. The pictures below show the location of
key parts of the ArcadeR board.
PCB 1.5b
PCB 1.5c
