Retrospec Beaumont REV - Page 2

User’s Manual Electric Bike
1 2
Congratulations on your purchase of this Retrospec electric bike. It has been carefully
designed and manufactured to the latest international quality standards.
Please read this instruction manual carefully and thoroughly before riding. It contains
important information on safety, and maintenance. It is the owner’s responsibility to
read this manual before riding. Keep this manual for future reference.
This user’s instruction manual includes two sections:
SECTION I - Mechanical Operation, and SECTION II - Electric Operation.
These instructions apply to electric bike models with following equipment:
Section I: Mechanical Components Operation
• Derailleur with Disc Brakes
For mechanical equipment, an electric bicycle diers slightly from a non-electric bike.
Section II: Electrical Components Operation
• The battery-pack mounted in the rear carrier or on the down tube
• The motor in the rear wheel hub or front wheel hub
• The controller box next to the battery or integrated into the battery-pack
• Handlebar-mounted Display Panel operations.
Warranty: Should any original component prove defective in terms of workmanship
within its warranty period, we will replace it. Warranty period for Retrospec electric
bikes is as follows:
Electrical Components excluding Battery: 2 years with proper maintenance
Battery: 1 year
Frame and Fork: 1 year
All other components: 6 months
This warranty does not include labor and transportation charges. The company cannot
accept any responsibility for consequential or special damage. This warranty applies
only to the original retail purchaser who must have a proof of purchase in order to
validate any claim. This warranty applies only in the case of defective components and
does not cover the eects of normal wear, nor damage caused by accident, abuse,
excessive loads, neglect, improper assembly, improper maintenance or the addition of
any item inconsistent with the original intended use of the bicycle.
No bicycle is indestructible and no claims can be accepted for damage caused by
improper use, competition use, stunt riding, ramp jumping and leaping or similar
activities. Claims must be submitted through your retailer. Your statutory rights are not
aected. The company reserves the right to change any specication without notice.
All information and specications within this manual are correct at time of printing.
1. Tire & Tubes
2. Rims
3. Spokes
4. Front Hub with QR
5. Fork Fork
6. Front Mechanical Disk Brake
7. Front Mudguard (Fender)
8. Handlebar & Stem
9. Bell
10. Frame
11. Pedal
12. Chainwheel/Crankset
13. Chain Cover
14. Seat Clamp
15. Seat Post
16. Saddle

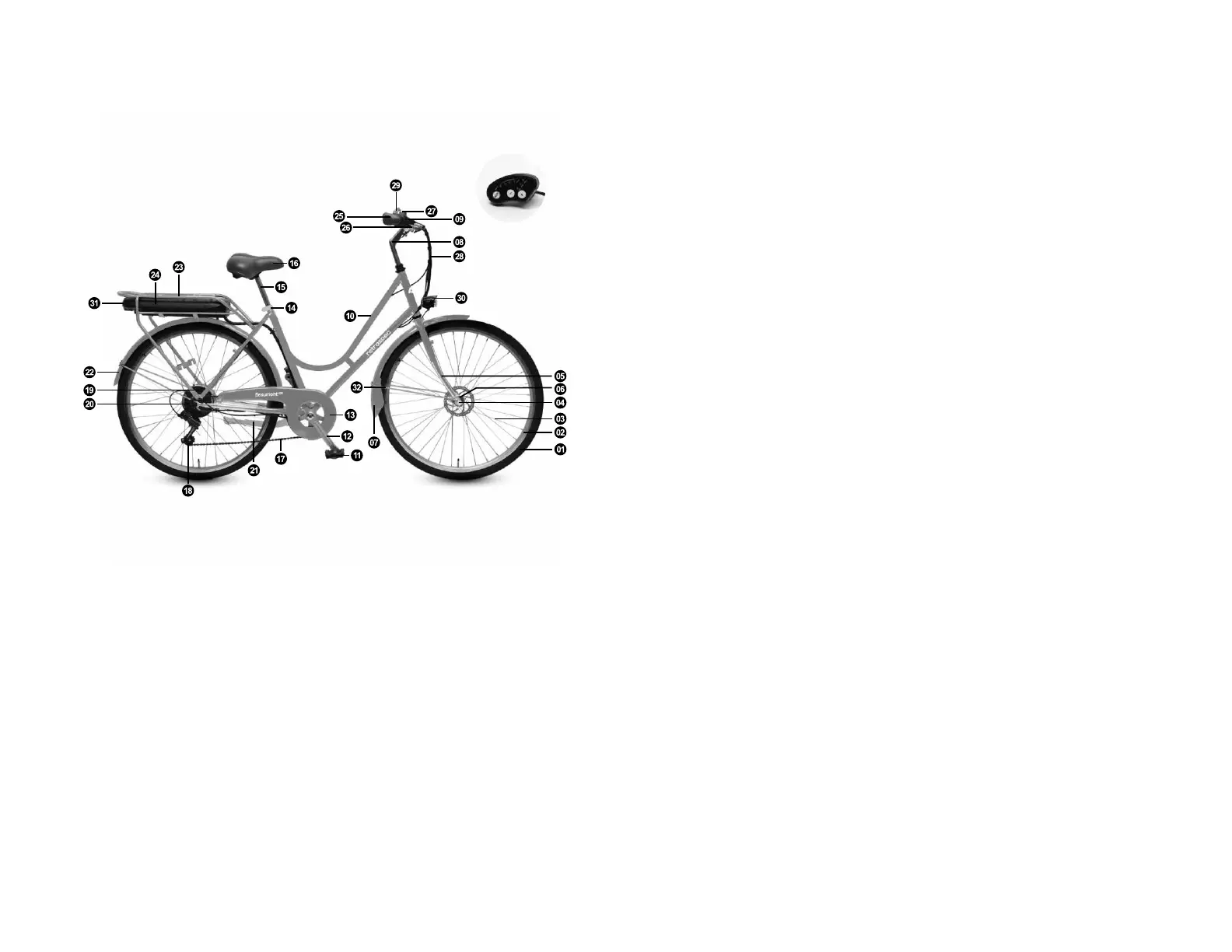

Fig. 1 Electric Bicycle with Carrier Pack
List of E-Bike Component Names
17. Chain
18. Rear Derailleur
19. Rear Motor Hub
20. Freewheel
21. Kickstand
22. Read Mudguard (Fender)
23. Rear Carrier
24. Battery
25. Grip
26. Shift Lever & Brake Lever
27. Throttle
28. Brake, Shift & Display Cables
29. Display
30. Front Light
31. Rear Light
32. Mudguard (Fender) Stay
