User’s Manual Electric Bike
Congratulations on your purchase of this Retrospec electric bike. It has been carefully
designed and manufactured according to the latest international quality standards.
Please read this instruction manual carefully and thoroughly before riding. It contains
important information on safety, and maintenance. It is the owner’s responsibility
to read this manual before riding. Keep this manual for future reference. This user’s
instruction manual includes two sections:
SECTION I - Mechanical Operation, and SECTION II - the Electric Operation.
These instructions apply to electric bike models with following equipment:
Section I: Mechanical Components Operation
• Disc Brakes
Section II: Electrical Components Operation
• Battery-pack behind the seat tube
• Rear hub motor
• Controller integrated to the battery-pack
• Handlebar-mounted Display Panel operations.
Warranty: Should any original component prove defective in terms of workmanship
within its warranty period, we will replace it. Warranty period for Retrospec electric
bikes is as follows:
Electrical Components excluding Battery: 2 years with proper maintenance
Battery: 1 year
Frame and Fork: 1 year
All other components: 6 months
This warranty does not include labor and transportation charges. The company cannot
accept any responsibility for consequential or special damage. This warranty applies
only to the original retail purchaser who must have a proof of purchase in order to
validate any claim. This warranty applies only in the case of defective components and
does not cover the eects of normal wear, nor damage caused by accident, abuse,
excessive loads, neglect, improper assembly, improper maintenance or the addition of
any item inconsistent with the original intended use of the bicycle.
No bicycle is indestructible and no claims can be accepted for damage caused by
improper use, competition use, stunt riding, ramp jumping and leaping or similar
activities. Claims must be submitted through your retailer. Your statutory rights are not
aected. The company reserves the right to change any specication without notice.
All information and specications within this manual are correct at time of printing.

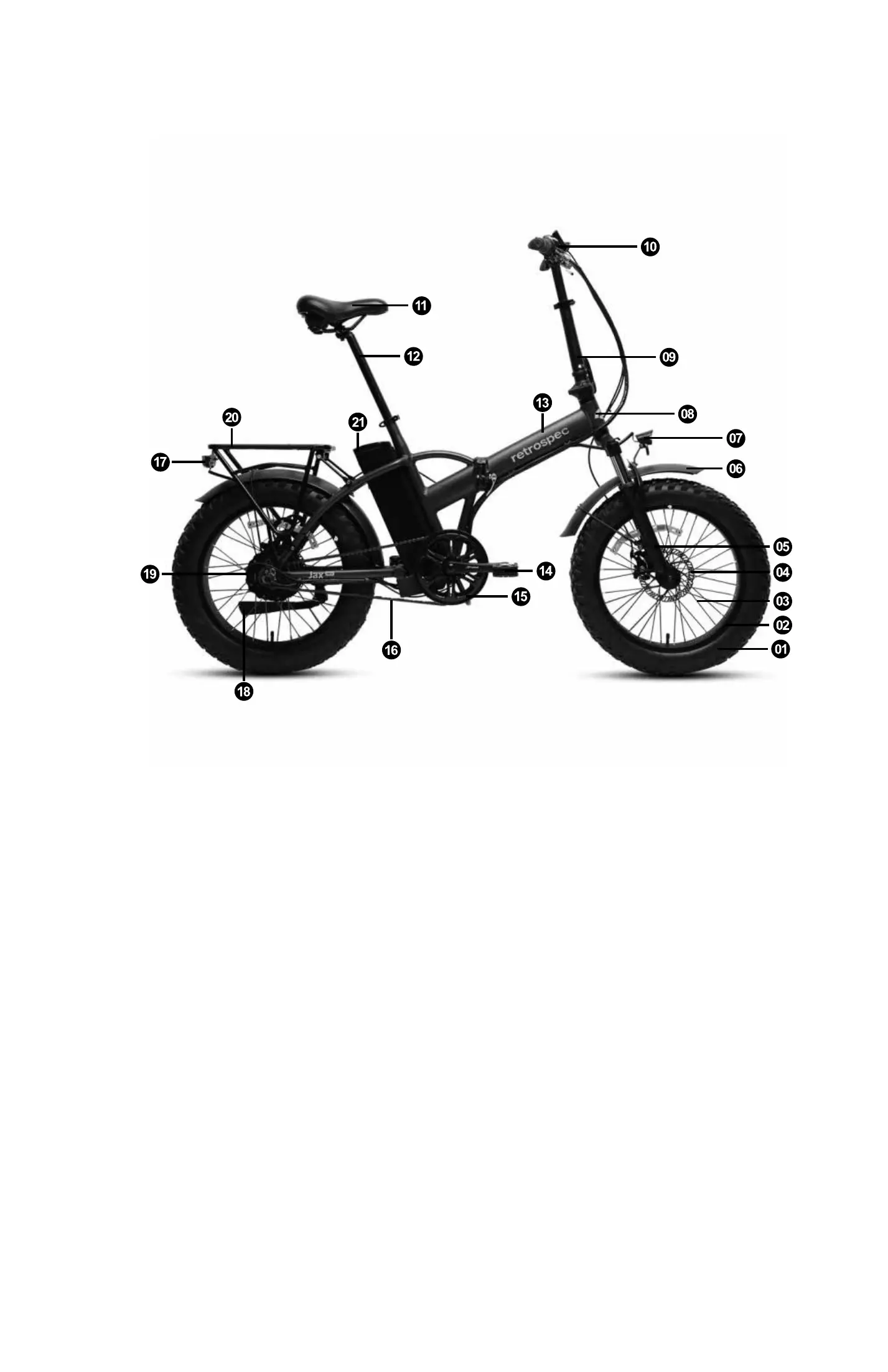

1. Tire/Tube
2. Rim
3. Spoke
4. Disc brake
5. Fork
6. Mudguard
7. Front light
8. Head tube
9. Stem
10. Display Panel
Fig. 1 Electric Bicycle
Name of Pedal Electric
Assistance Bicycle Components
1 2
11. Saddle
12. Seat Post
13. Frame
14. Pedals
15. Chainwheel/Crankset
16. Chain
17. Rear Light
18. Kickstand
19. Hub Motor
20. Rear Carrier
21. Battery
