Electric BikeUser’s Manual
1 2
Congratulations on your purchase of this Retrospec electric bike. It has been carefully
designed and manufactured to the latest international quality standards.
Please read this instruction manual carefully and thoroughly before riding. It contains
important information on safety, and maintenance. It is the owner’s responsibility to
read this manual before riding. Keep this manual for future reference.
This user’s instruction manual includes two sections:
SECTION I - Mechanical Operation, and SECTION II - Electric Operation.
These instructions apply to electric bike models with following equipment:
Section I: Mechanical Components Operation
• Derailleur with Disc Brakes
For mechanical equipment, an electric bicycle diers slightly from a non-electric bike.
Section II: Electrical Components Operation
• The battery-pack mounted on the down tube
The motor in the rear wheel hub
The controller box is besides the seat post
Handlebar-mounted Display Panel operations.
•
•
•
Warranty: Should any original component prove defective in terms of workmanship
within its warranty period, we will replace it. Warranty period for Retrospec electric
bikes is as follows:
Electrical Components excluding Battery: 2 years with proper maintenance
Battery: 1 year
Frame and Fork: 1 year
All other components: 6 months
This warranty does not include labor and transportation charges. The company cannot
accept any responsibility for consequential or special damage. This warranty applies
only to the original retail purchaser who must have a proof of purchase in order to
validate any claim. This warranty applies only in the case of defective components and
does not cover the eects of normal wear, nor damage caused by accident, abuse,
excessive loads, neglect, improper assembly, improper maintenance or the addition of
any item inconsistent with the original intended use of the bicycle.
No bicycle is indestructible and no claims can be accepted for damage caused by
improper use, competition use, stunt riding, ramp jumping and leaping or similar
activities. Claims must be submitted through your retailer. Your statutory rights are not
aected. The company reserves the right to change any specication without notice.
All information and specications within this manual are correct at time of printing.
1. Tire & Tubes

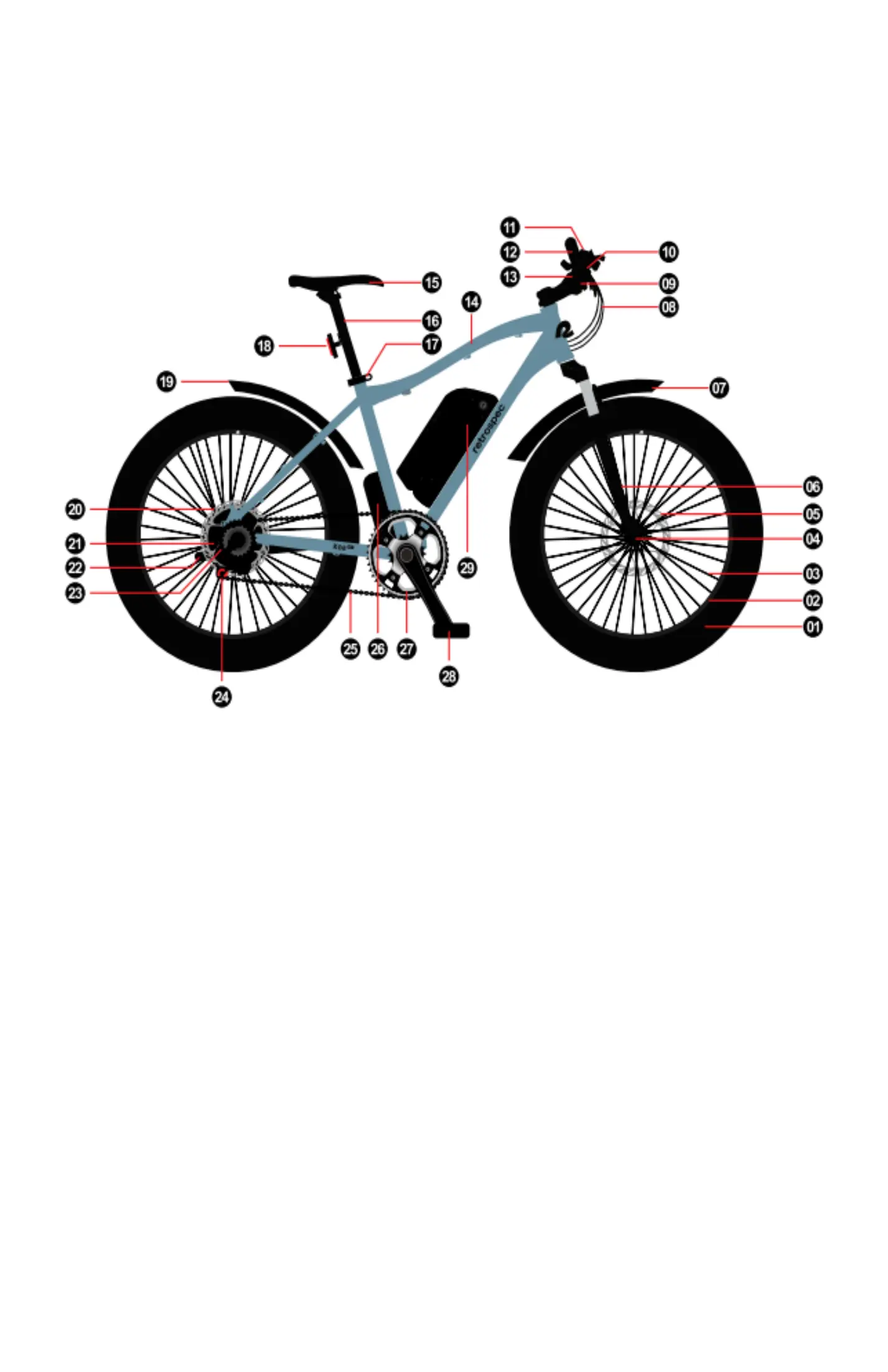

Fig. 1 Electric Bicycle
List of E-Bike Component Names
2. Rims
3. Spokes
4. Front Hub with QR
5. Front Mechanical Disk Brake
6. Front Suspension Fork
7. Front Mudguard (Fender)
8. Shift Lever & Brake Lever
9. Handlebar & Stem
10. Display
11. Throttle
12. Grip
13. Front Light
14. Frame
15. Saddle
16. Seat Post
17. Seat Post Clamp
18. Rear Light
19. Rear Mudguard (Fender)
20. Rear Mechanical Disk Brake
21. Rear Motor Hub
22. Kickstand
23. Freewheel
24. Rear Derailleur
25. Chain
26. Controller
27. Chainwheel/Crankset
28. Pedal
29. Battery
