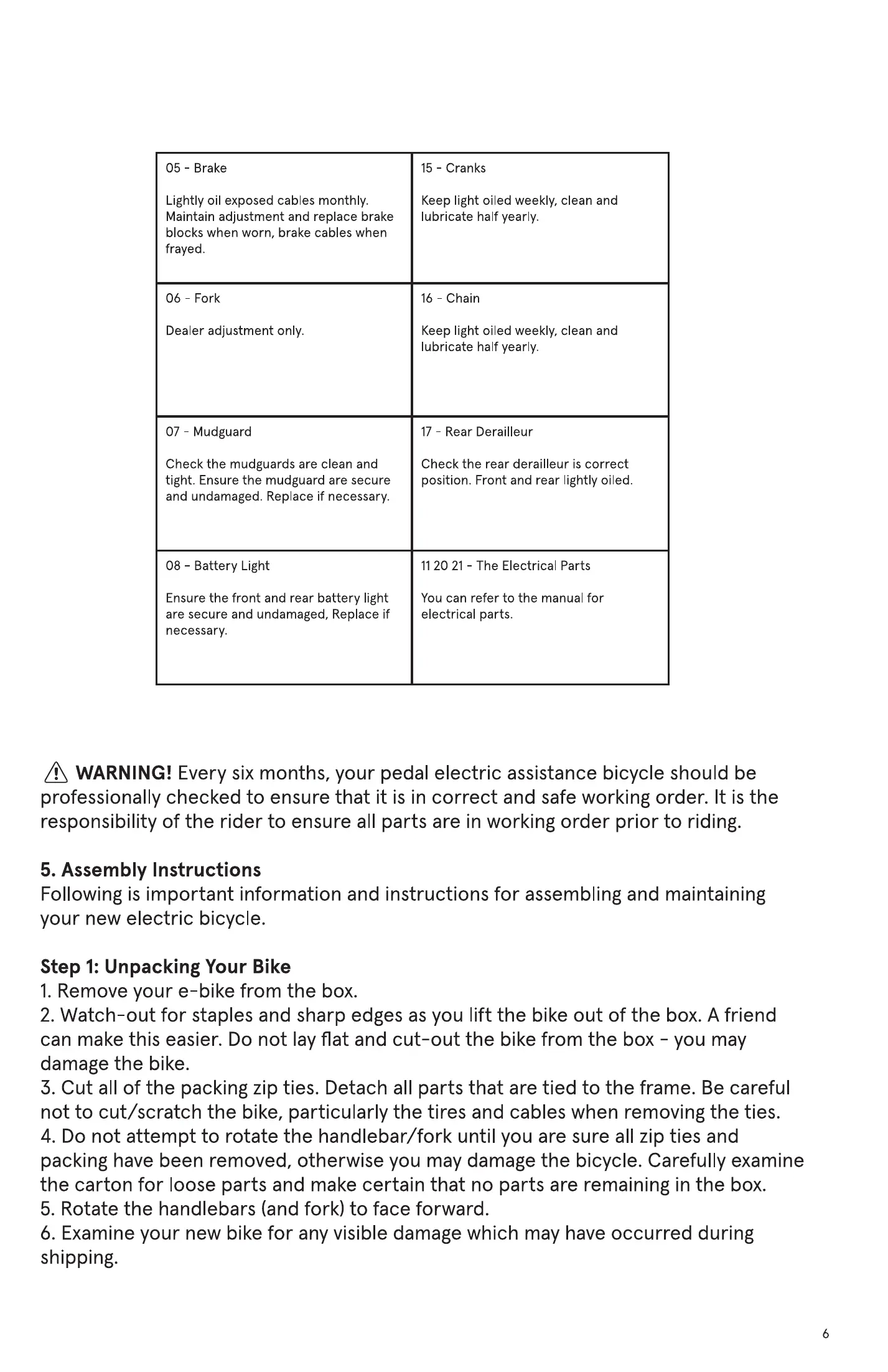

05 - Brake
Lightly oil exposed cables monthly.
Maintain adjustment and replace brake
blocks when worn, brake cables when
frayed.
06 - Fork
Dealer adjustment only.
07 - Mudguard
Check the mudguards are clean and
tight. Ensure the mudguard are secure
and undamaged. Replace if necessary.
08 - Battery Light
Ensure the front and rear battery light
are secure and undamaged, Replace if
necessary.
15 - Cranks
Keep light oiled weekly, clean and
lubricate half yearly.
16 - Chain
Keep light oiled weekly, clean and
lubricate half yearly.
17 - Rear Derailleur
Check the rear derailleur is correct
position. Front and rear lightly oiled.
11 20 21 - The Electrical Parts
You can refer to the manual for
electrical parts.
WARNING! Every six months, your pedal electric assistance bicycle should be
professionally checked to ensure that it is in correct and safe working order. It is the
responsibility of the rider to ensure all parts are in working order prior to riding.
5. Assembly Instructions
Following is important information and instructions for assembling and maintaining
your new electric bicycle.
Step 1: Unpacking Your Bike
1. Remove your e-bike from the box.
2. Watch-out for staples and sharp edges as you lift the bike out of the box. A friend
can make this easier. Do not lay flat and cut-out the bike from the box - you may
damage the bike.
3. Cut all of the packing zip ties. Detach all parts that are tied to the frame. Be careful
not to cut/scratch the bike, particularly the tires and cables when removing the ties.
4. Do not attempt to rotate the handlebar/ fork until you are sure all zip ties and
packing have been removed, otherwise you may damage the bicycle. Carefully examine
the carton for loose parts and make certain that no parts are remaining in the box.
5. Rotate the handlebars (and fork) to face forward.
6. Examine your new bike for any visible damage which may have occurred during
shipping.
