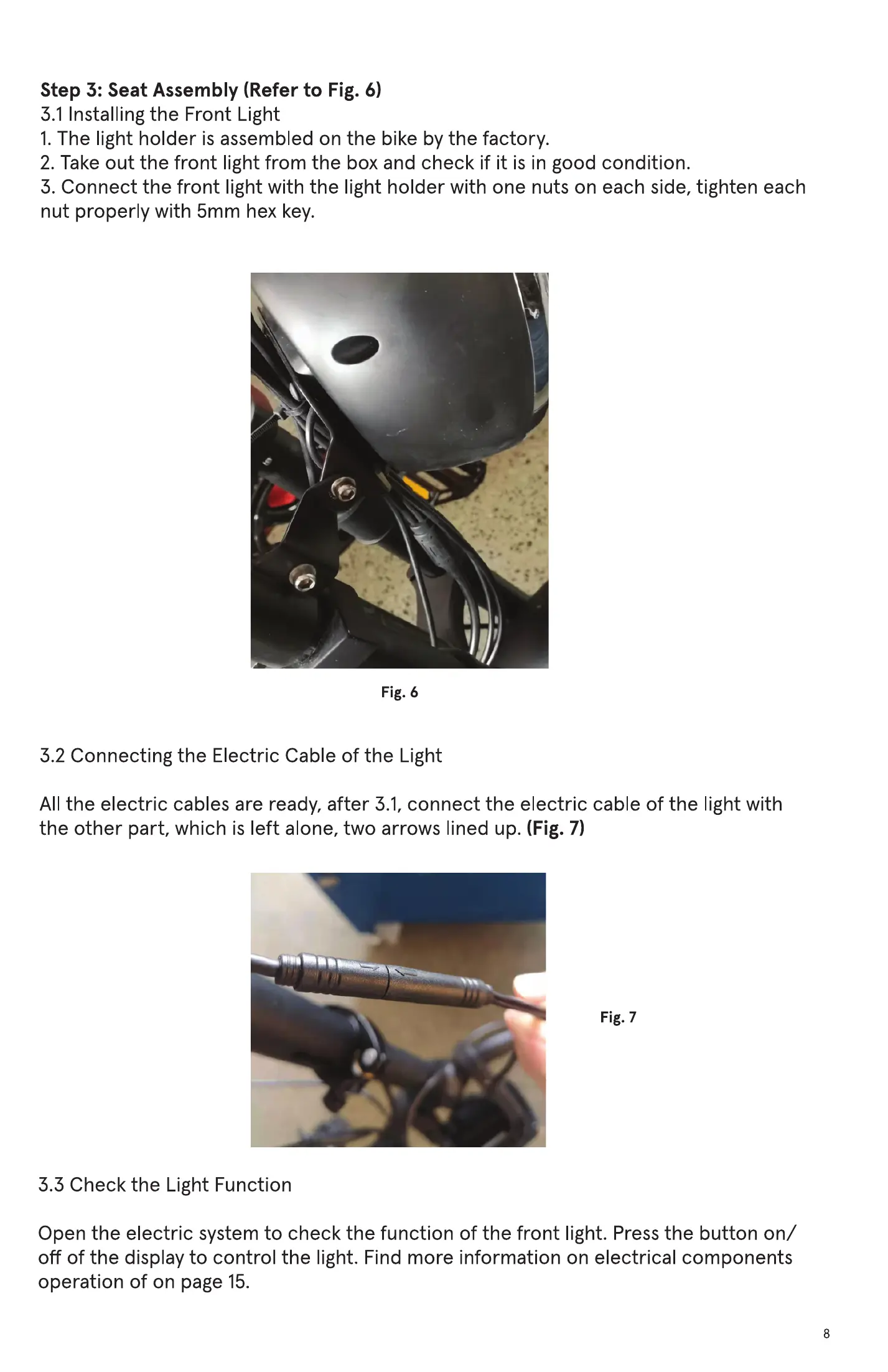

Step 3: Seat Assembly (Refer to Fig. 6)
3.1 Installing the Front Light
1. The light holder is assembled on the bike by the factory.
2. Take out the front light from the box and check if it is in good condition.
3. Connect the front light with the light holder with one nuts on each side, tighten each
nut properly with 5mm hex key.
Fig. 6
3.2 Connecting the Electric Cable of the Light
All the electric cables are ready, after 3.1, connect the electric cable of the light with
the other part, which is left alone, two arrows lined up. (Fig. 7)
Fig. 7
3.3 Check the Light Function
Open the electric system to check the function of the front light. Press the button on/
off of the display to control the light. Find more information on electrical components
operation of on page 15.
8
