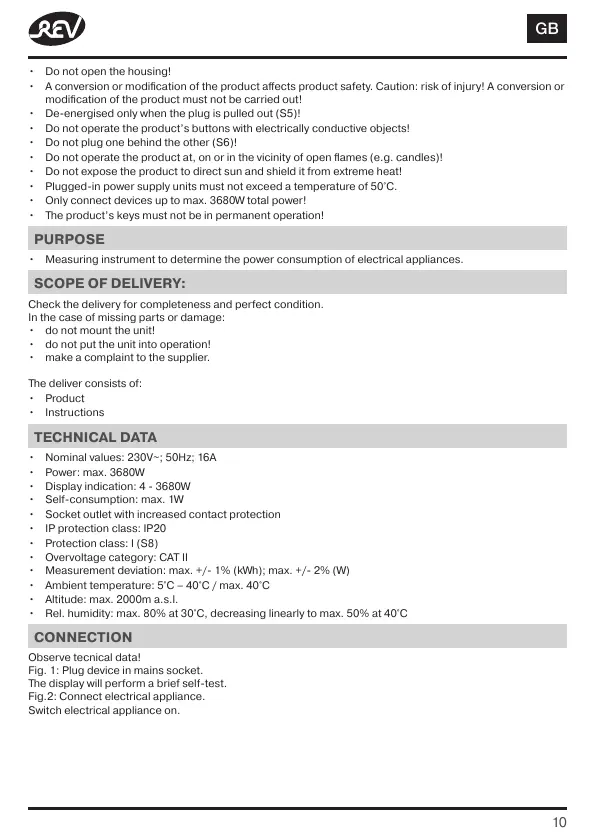

10
GB
• Only connect devices up to max. 3680W total power!
• Plugged-in power supply units must not exceed a temperature of 50°C.
• The product’s keys must not be in permanent operation!
• Do not plug one behind the other (S6)!
• Do not operate the product at, on or in the vicinity of open flames (e.g. candles)!
• Do not expose the product to direct sun and shield it from extreme heat!
• Do not operate the product’s buttons with electrically conductive objects!
• De-energised only when the plug is pulled out (S5)!
• A conversion or modification of the product affects product safety. Caution: risk of injury! A conversion or
modification of the product must not be carried out!
• Do not open the housing!
• Product
• Instructions
Check the delivery for completeness and perfect condition.
In the case of missing parts or damage:
• do not mount the unit!
• do not put the unit into operation!
• make a complaint to the supplier.
The deliver consists of:
SCOPE OF DELIVERY:
• Power: max. 3680W
• Socket outlet with increased contact protection
• IP protection class: IP20
TECHNICAL DATA
• Protection class: I (S8)
• Ambient temperature: 5°C – 40°C / max. 40°C
• Nominal values: 230V~; 50Hz; 16A
• Altitude: max. 2000m a.s.l.
• Rel. humidity: max. 80% at 30°C, decreasing linearly to max. 50% at 40°C
• Display indication: 4 - 3680W
• Self-consumption: max. 1W
• Overvoltage category: CAT II
• Measurement deviation: max. +/- 1% (kWh); max. +/- 2% (W)
CONNECTION
Observe tecnical data!
Fig. 1: Plug device in mains socket.
The display will perform a brief self-test.
Fig.2: Connect electrical appliance.
Switch electrical appliance on.
PURPOSE
• Measuring instrument to determine the power consumption of electrical appliances.
