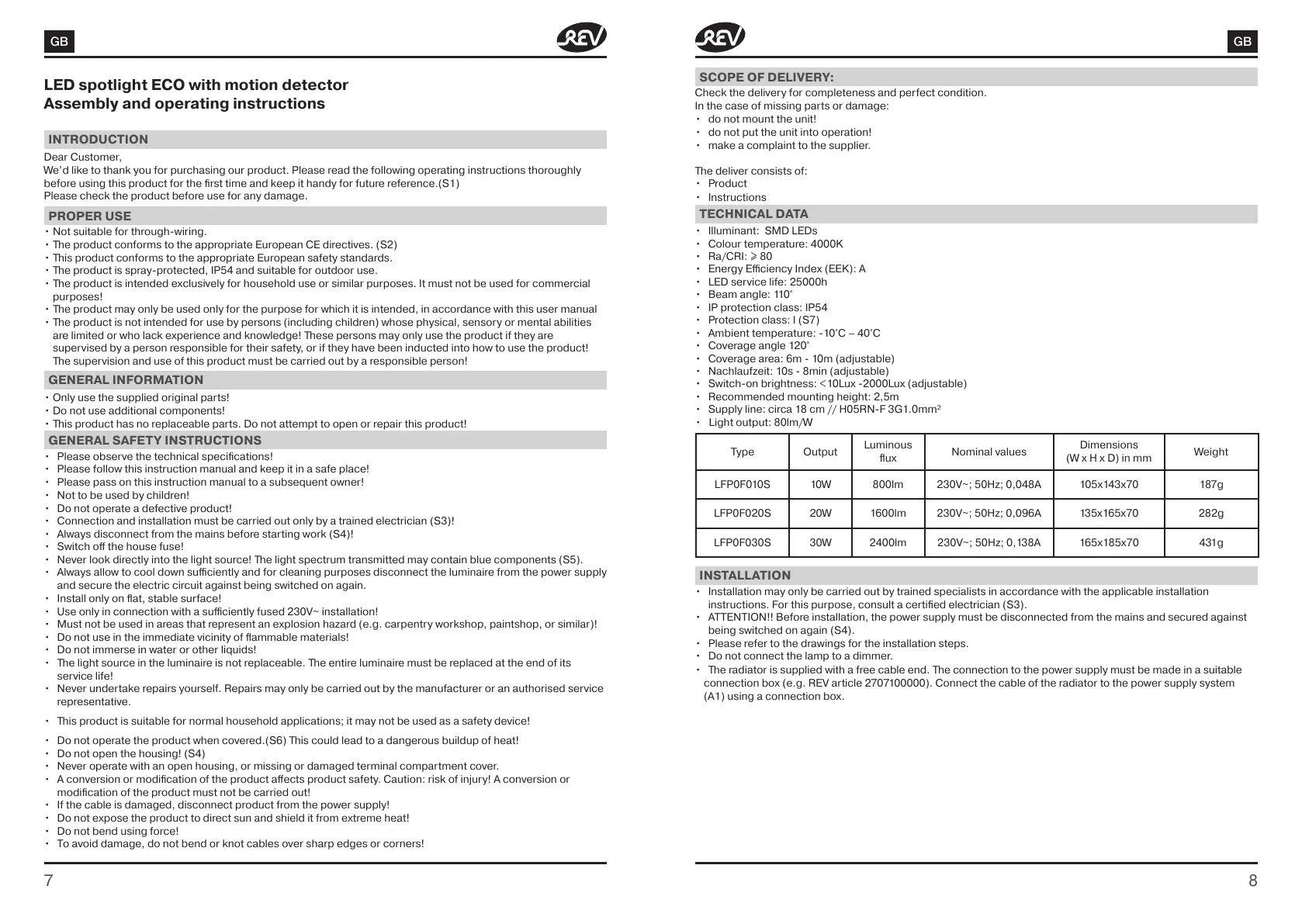

LED spotlight ECO with motion detector
Assembly and operating instructions
INTRODUCTION
Dear Customer,
We’d like to thank you for purchasing our product. Please read the following operating instructions thoroughly
before using this product for the first time and keep it handy for future reference.(S1)
Please check the product before use for any damage.
PROPER USE
• The product is spray-protected, IP54 and suitable for outdoor use.
GENERAL SAFETY INSTRUCTIONS
• Always allow to cool down sufficiently and for cleaning purposes disconnect the luminaire from the power supply
and secure the electric circuit against being switched on again.
• The product conforms to the appropriate European CE directives. (S2)
• This product has no replaceable parts. Do not attempt to open or repair this product!
• Connection and installation must be carried out only by a trained electrician (S3)!
• Never operate with an open housing, or missing or damaged terminal compartment cover.
• Please observe the technical specifications!
• Please follow this instruction manual and keep it in a safe place!
• Please pass on this instruction manual to a subsequent owner!
• Not to be used by children!
• Do not operate a defective product!
• Install only on flat, stable surface!
• This product conforms to the appropriate European safety standards.
• The product is not intended for use by persons (including children) whose physical, sensory or mental abilities
are limited or who lack experience and knowledge! These persons may only use the product if they are
supervised by a person responsible for their safety, or if they have been inducted into how to use the product!
The supervision and use of this product must be carried out by a responsible person!
• Do not immerse in water or other liquids!
• A conversion or modification of the product affects product safety. Caution: risk of injury! A conversion or
modification of the product must not be carried out!
• Use only in connection with a sufficiently fused 230V~ installation!
• Always disconnect from the mains before starting work (S4)!
• Only use the supplied original parts!
• The product is intended exclusively for household use or similar purposes. It must not be used for commercial
purposes!
• Must not be used in areas that represent an explosion hazard (e.g. carpentry workshop, paintshop, or similar)!
• This product is suitable for normal household applications; it may not be used as a safety device!
• Switch off the house fuse!
• The light source in the luminaire is not replaceable. The entire luminaire must be replaced at the end of its
service life!
• Do not operate the product when covered.(S6) This could lead to a dangerous buildup of heat!
• Not suitable for through-wiring.
• Do not use additional components!
• The product may only be used only for the purpose for which it is intended, in accordance with this user manual
• Do not use in the immediate vicinity of flammable materials!
• Do not open the housing! (S4)
• Never look directly into the light source! The light spectrum transmitted may contain blue components (S5).
• Never undertake repairs yourself. Repairs may only be carried out by the manufacturer or an authorised service
representative.
GENERAL INFORMATION
• Do not bend using force!
• To avoid damage, do not bend or knot cables over sharp edges or corners!
• Do not expose the product to direct sun and shield it from extreme heat!
• If the cable is damaged, disconnect product from the power supply!
GB
• Coverage area: 6m - 10m (adjustable)
• IP protection class: IP54
TECHNICAL DATA
• Colour temperature: 4000K
• Protection class: I (S7)
• Switch-on brightness: <10Lux -2000Lux (adjustable)
• Ra/CRI: ≥ 80
• Ambient temperature: -10°C – 40°C
• Illuminant: SMD LEDs
• Recommended mounting height: 2,5m
• Energy Efficiency Index (EEK): A
• Light output: 80lm/W
• LED service life: 25000h
• Supply line: circa 18 cm // H05RN-F 3G1.0mm²
• Coverage angle 120°
• Beam angle: 110°
• Product
• Instructions
Check the delivery for completeness and perfect condition.
In the case of missing parts or damage:
• do not mount the unit!
• do not put the unit into operation!
• make a complaint to the supplier.
The deliver consists of:
SCOPE OF DELIVERY:
INSTALLATION
• Please refer to the drawings for the installation steps.
• Installation may only be carried out by trained specialists in accordance with the applicable installation
instructions. For this purpose, consult a certified electrician (S3).
• ATTENTION!! Before installation, the power supply must be disconnected from the mains and secured against
being switched on again (S4).
• Do not connect the lamp to a dimmer.
• The radiator is supplied with a free cable end. The connection to the power supply must be made in a suitable
connection box (e.g. REV article 2707100000). Connect the cable of the radiator to the power supply system
(A1) using a connection box.
Type Output
Luminous
flux
Nominal values
Dimensions
(W x H x D) in mm
Weight
LFP0F010S 10W 800lm 230V~; 50Hz; 0,048A 105x143x70 187g
LFP0F020S 20W 1600lm 230V~; 50Hz; 0,096A 135x165x70 282g
LFP0F030S 30W 2400lm 230V~; 50Hz; 0,138A 165x185x70 431g
• Nachlaufzeit: 10s - 8min (adjustable)
