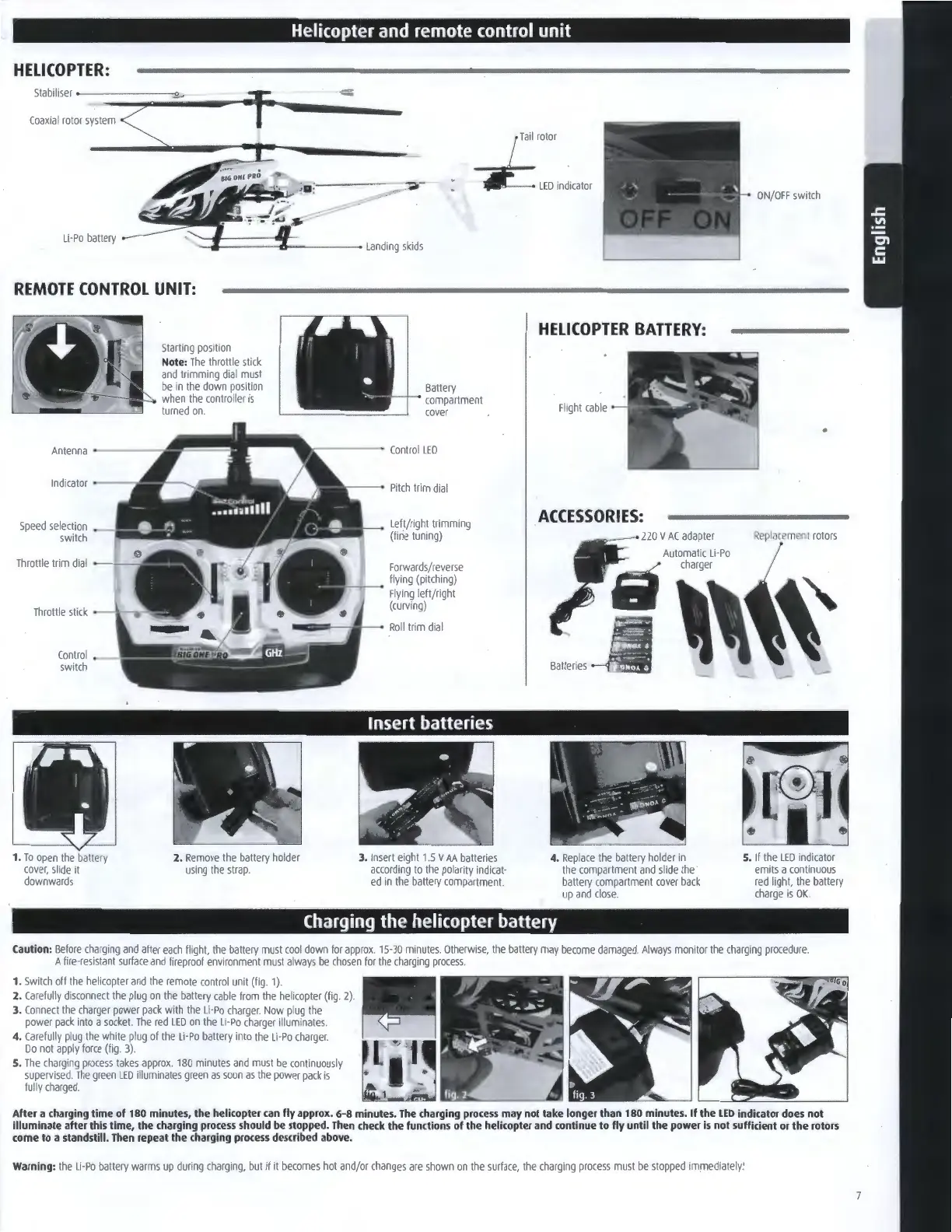

REVELL 24064 - Component Overview; Helicopter and Remote Parts; Included Accessories; Battery Installation

HELICOPTER:
Li-Po battery
Helicopter and remote control unit
1
Tail rotor
~ LED indicator
REMOTE CONTROL UNIT:
Indicator
Speed selection
switch
Throttle trim dial
Control
switch
Starting position
Note : The throttle stick
and trimming dial must
be in the down position
when the controller is
turned on.
Battery
compartment
cover
Pitch trim dial
Left/right tr i mming
(fine tuning)
Forwards/reverse
flying (pitching)
Flying left/ right
(curving)
•--- - --- '-- - Roll trim dial
2. Remove the battery holder
using the strap.
Insert batteries
3. Insert ei ght 1.S V AA batteries
according to the polarity indicat-
ed in the battery compartment.
HELICOPTER BATTERY:
Flight cable
ACCESSORIES:
4. Replace the battery holder in
the compartment and slide the
battery compartment cover back
up and close.
Charging the helicopter battery
ON/OFF switch
Replacement rotors
5. If the LED indica t or
em i ts a continuous
red ligh t, the battery
charge is OK.
Caution: Before charging and af ter each flight, the batte ry mus t cool down for approx. 1 S- 30 minutes. Ot h erw i se, the batte ry may become damaged. Always monitor t he cha r ging procedure
A fire-resistant sur f ace and fireproo f environment mu st always be chosen for the charging process.
1. Switch off the helicopter and the remote control unit (fig. 1).
2. Carefully disconnect the plug on the ba tt ery cable from the helicopter (f i g. 2).
3. Connect the charger power pack with the Li-Po cha r ger Now plug the
power pack into a socket. The red LED on the li-Po charger illuminates.
4. Carefully plug the white plug of the Li-Po battery into the li-Po charger
Do not apply force (fig. 3).
5. The charging process takes approx. 180 minu t es and must be continuously
supe rvised . T he green LED illuminates gr een as soon as the power pack is
fu lly charged.
After a charging time of 180 minutes, the helicopter can fly approx . 6-8 minutes. The charging process may not take longer than 180 minutes . If the LED indicator does not
illuminate after this time, the charging process should be stopped. Then check the functions of the helicopter and continue to fly until the power is not sufficient or the rotors
come to a standstill. Then repeat the charging process described above .
Warning: the li-Po battery warms up during charging, but if it becomes hot and/or changes are shown on the surface, the charging pr ocess must be stopped immed i ately!
