REVELL Performa C30 - Page 13

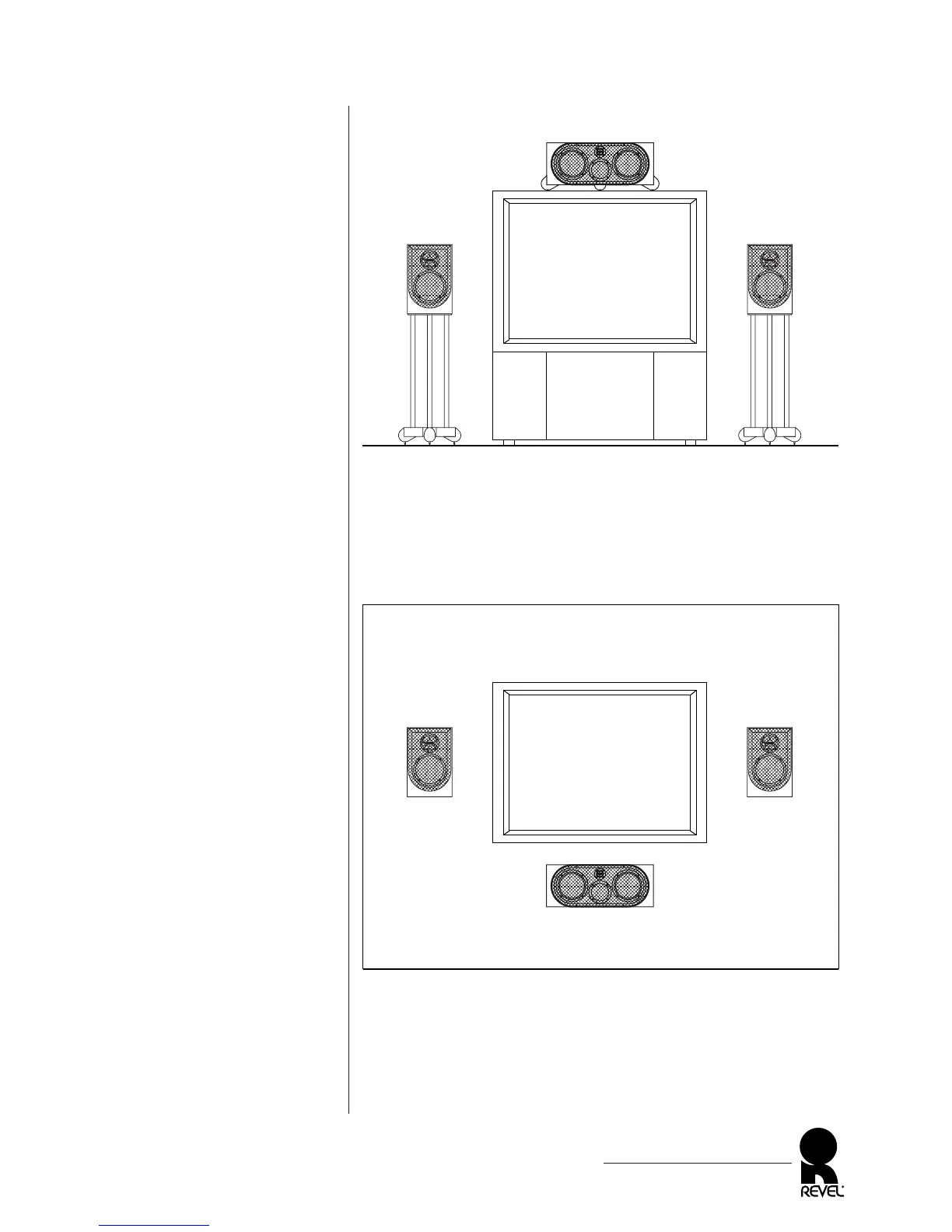

Figure 12. REVEL PERFORMA
C30 center-channel loudspeaker
mounted on top of rear
projection or large
direct-view monitor.
NOTE: To tilt the loudspeaker
downward, see step 3 on page 10.
Figure 13. REVEL PERFORMA
C30 center-channel loudspeaker
flush-mounted in large wall unit.
REVEL PERFORMA C30
Owner’s Manual
13
left right
Rear Projection or
Large Direct-View
Monitor
Placement Compensation
set to ON TOP OF MONITOR
(see Figure 14 on page 15)
REVEL PERFORMA C30
center
left right
REVEL PERFORMA C30
center
Rear Projection or
Direct-View
Monitor
Wall Unit
Placement Compensation
set to FLUSH MOUNTED
(see Figure 14 on page 15)
