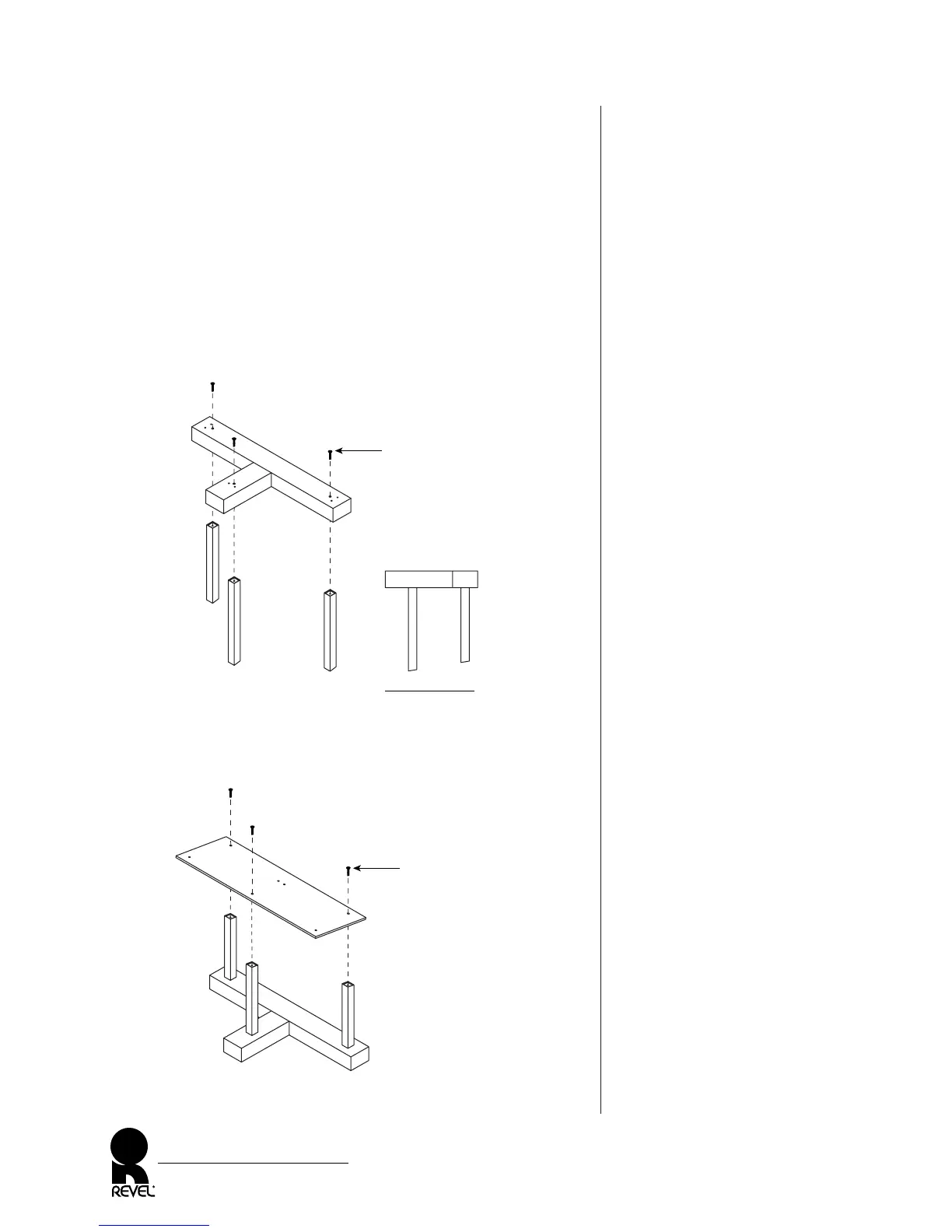

Figure 5. Installing bars onto
the ‘T’ base for the REVEL
PERFORMA PEDESTAL 2.
Figure 6. Installing the top plate.
INSTALLING STANDS (OPTIONAL)
1. Using a Phillips screwdriver, remove the Revel Performa C30
loudspeaker feet and screws (for later attachment to the stand
base). Locate the parts bag (packed with the loudspeaker) that
contains the spikes, lock nuts, covers, screws, and a wrench. Set
all parts aside.
2. Start the stand assembly by fastening three upright bars to the
bottom ‘T’ base with three enclosed 1⁄4 -20 x 1" flat head
screws. Note the position of the angled ends on the short and
long upright bars, as shown in Figure 5 (right side view).
3. Place the stand in its upright position. Install the top plate with
three enclosed 1⁄4 -20 x 1" flat head screws, as shown in Figure 6.
