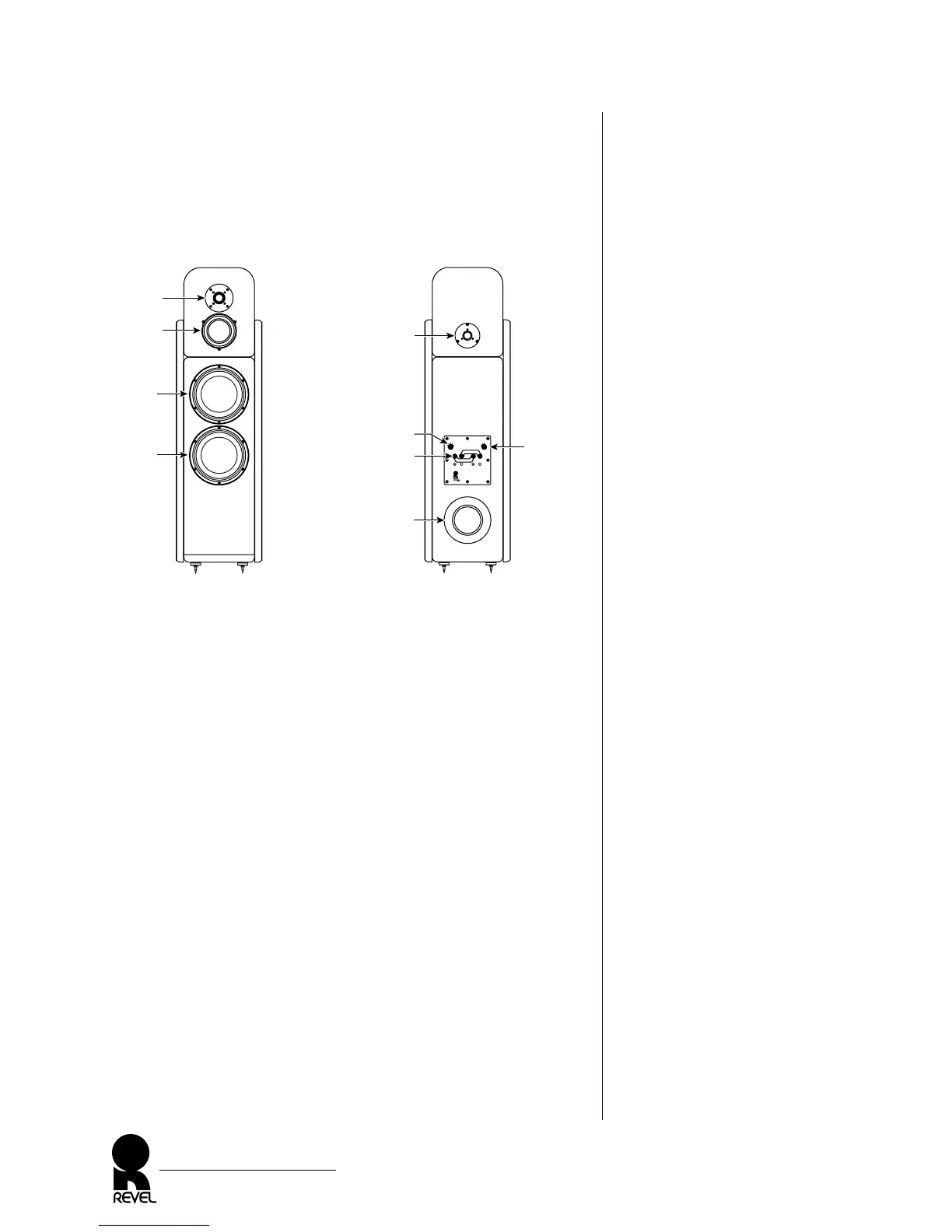

Figure 2. The REVEL ULTIMA
STUDIO transducer and con-
nection locations.
DESCRIPTION
REVEL ULTIMA STUDIO features a transducer complement (see
Figure 2) of two 8-inch woofers, a 5.25-inch midrange driver, and
1.1-inch tweeter. A second 0.75-inch tweeter (on the rear) provides
added high-frequency energy to enhance overall “room response.”
Combined with an individually-optimized crossover network, this
transducer arrangement results in an extraordinary off-axis
response that provides a large “listening window” and an uncolored
in-room response, even in the presence of strong wall reflections.
WOOFERS
For uncompressed dynamic range, each REVEL ULTIMA STUDIO
uses two 8-inch mica/carbon-filled co-polymer dome woofers with:
• A radiating surface made of an injection-molded polymer mate-
rial with incredible stiffness and internal damping.
• Optimized magnetic circuits to minimize harmonic distortion.
• Oversized 1.5-inch diameter voice coil with flat aluminum wire
offer higher power handling and long excursion capability.
MIDRANGE
The 5.25-inch titanium-dome midrange features:
• A radiating surface made of titanium for true pistonic behavior
throughout its operating range.
REVEL ULTIMA STUDIO
Owner’s Manual
4
Remove straps
for bi-wire
or bi-amp
Low Frequency Input High Frequency Input
+1-1
0
+.5
-.5
Serial Number
xxxx
Front Tweeter Level
Rear Tweeter Level
Revel Corporation
Northridge, California
Made in U.S.A.
-3
0
Off
REVEL ULTIMA STUDIO Front
(without grilles)
REVEL ULTIMA STUDIO Rear
Tweeter
Woofer Port
Rear Tweeter
Level Control
Front Tweeter
Level Control
Midrange
Woofer
Woofer
Connectors (with
shorting straps)
Tweeter
