REVENT RVM80 - Page 11

10

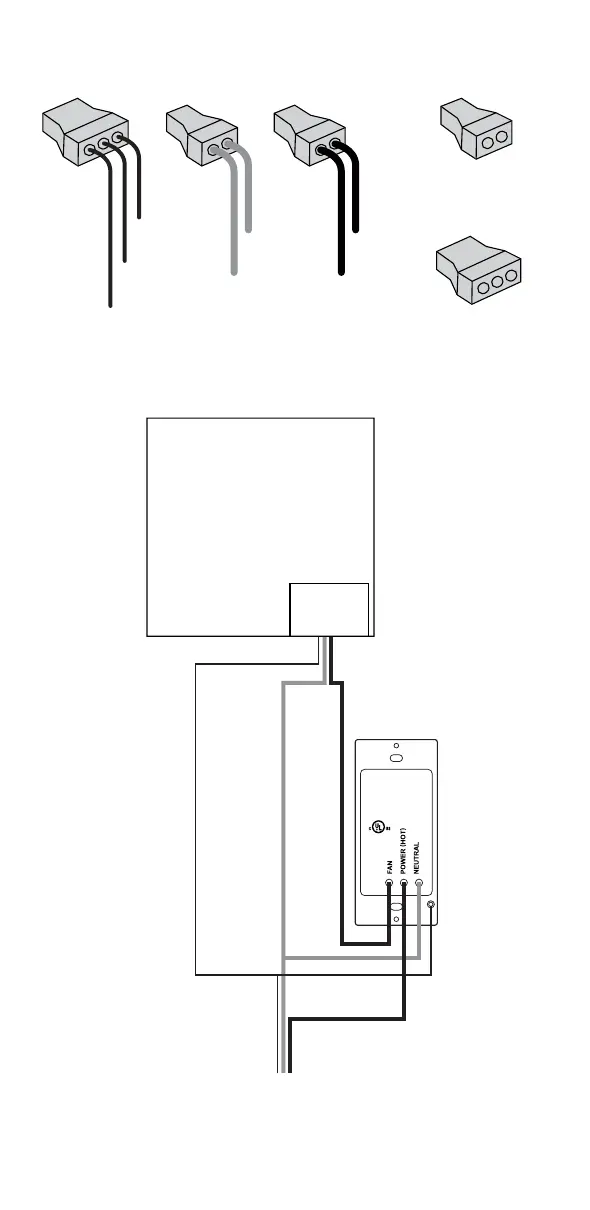

10.) Connect wiring using the provided QUICK CONNECTS. Match wire colors as
shown:
2-WIRE QUICK
CONNECT
Qty:2
3-WIRE QUICK
CONNECT
Qty:1
line
ground
FAN
ground
housing
ground
line in
neutral
neutral
line in
FAN
FAN
ReVent
®
fan
ReVent
®
switch
120V line AC
black
/red
white
ground
fan’s
electrical
box
black
ReVent
®
FSM-80
product of GTR Technologies Inc.
USA and international patents pending.
Electrical Input: 120 volts @ 60Hz
Maximum Fan Load: 6 Amps
This switch is only to be used with
ReVent fan model RVM80
Must Be Mounted Inside A Code
Approved Electrical Outlet Box
Made In China
