Installation For New
Construction Framing
WARNING: Disconnect all AC Power Breakers or Fuses before attempting
to cut into your ceiling.
1.) Select a set of holding tabs, depending on the thickness of your sheetrock.
2.) Bend the holding tabs you selected outward.
5
/8 in (1.6 cm)
holding tab
1
/2 in (1.3 cm)
holding tab
final securing tab
5
/8 in (1.6 cm)
holding tab
1
/2 in (1.3 cm)
holding tab
NOTE: Even with new construction, you can use the SheetLock
®
installation
method; however, ReVent
®
can still be installed using a method home
builders would be more familiar with, as outlined in this section.

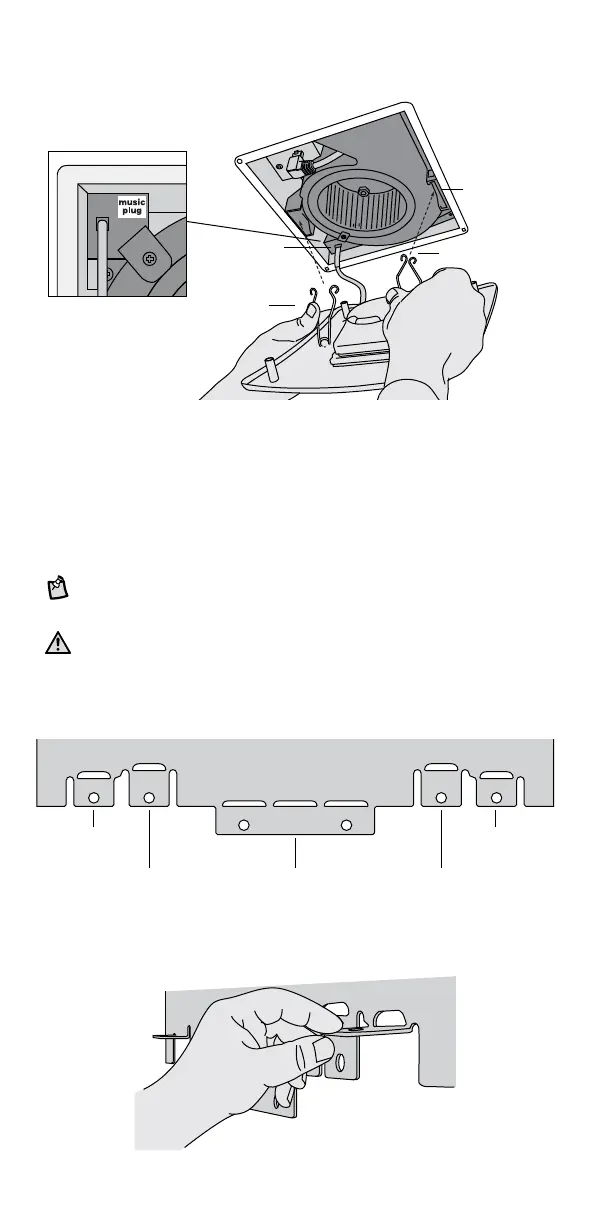

14.) Connect music wire to music plug. Attach the SHIELD by squeezing the
mounting springs together and inserting the springs into the spring guides in the
FAN.
mounting springs
spring guide
music wire
music plug
To Next Page
