14

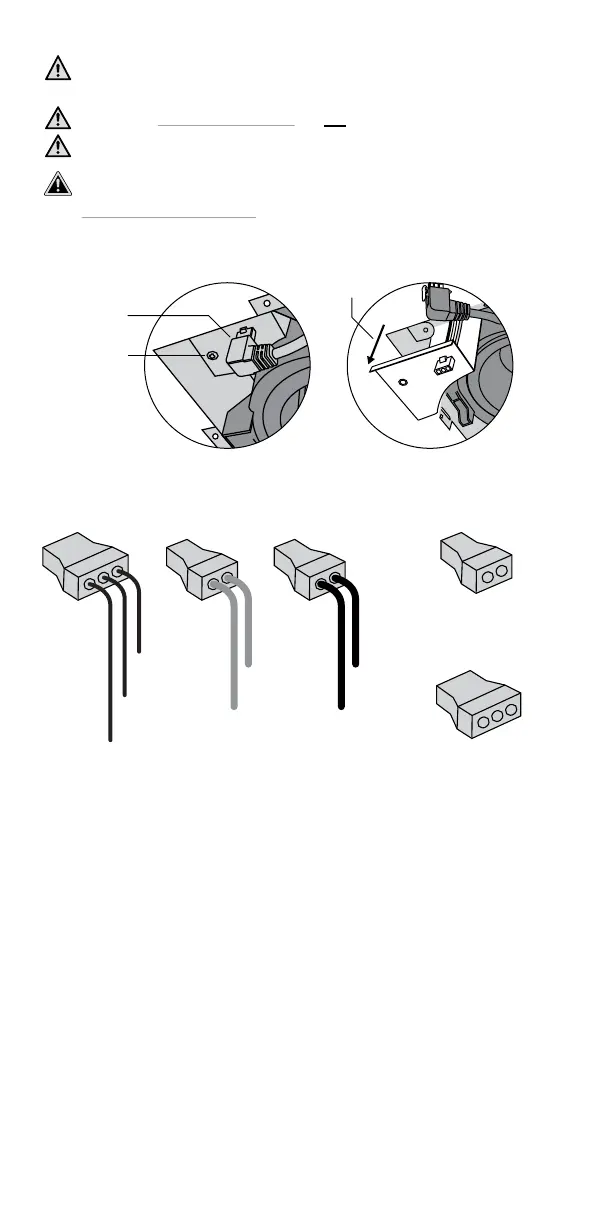

6.) Disconnect FAN motor from electrical enclosure. Remove the electrical cover
set screw and slide open the electrical enclosure.
remove set
screw
unplug fan
connector
slide
WARNING: Disconnect the AC power before any work is done to any part of
the circuit ReVent
®
is connected to. If you do not understand this warning,
seek the services of a qualified licensed electrician.
WARNING: Copper to copper only. Do not use aluminum wire.
WARNING: Follow all local electrical and safety codes, and NEC (National
Electrical Codes).
CAUTION: If your house wires do not match these colors, determine what
each house wire represents before connecting. You may need to consult a
qualified licensed electrician to determine this safely.
7.) Connect wiring using the provided QUICK CONNECTS. Match wire colors as
shown:
2-WIRE QUICK
CONNECT
Qty:2
3-WIRE QUICK
CONNECT
Qty:1
line
ground
FAN
ground
housing
ground
line in
neutral
neutral
line in
FAN
FAN
To Next Page
