Pull cable taut and tighten anchor bolt.
Using the caliper mounted barrel adjuster, adjust
the cable tension to desired feel.
Install and crimp cable tip.
Using a 3mm hex wrench, adjust the outboard
and inboard pistons until rotor is centered
between brake pads.
Once you have reached the desired lever and
caliper feel and braking power, cut the cable at
the caliper.
WARNING—Do not leave enough cable
that it can contact the rotor. If the free end of the
cable becomes tangled in the rotor while riding,
it could lead to serious injury.
Pull brake lever until it cannot be pulled further
and hold.
Alternating from one bolt to the other in quarter
turns, tighten caliper mounting bolts to 6–8Nm.
Release brake lever.

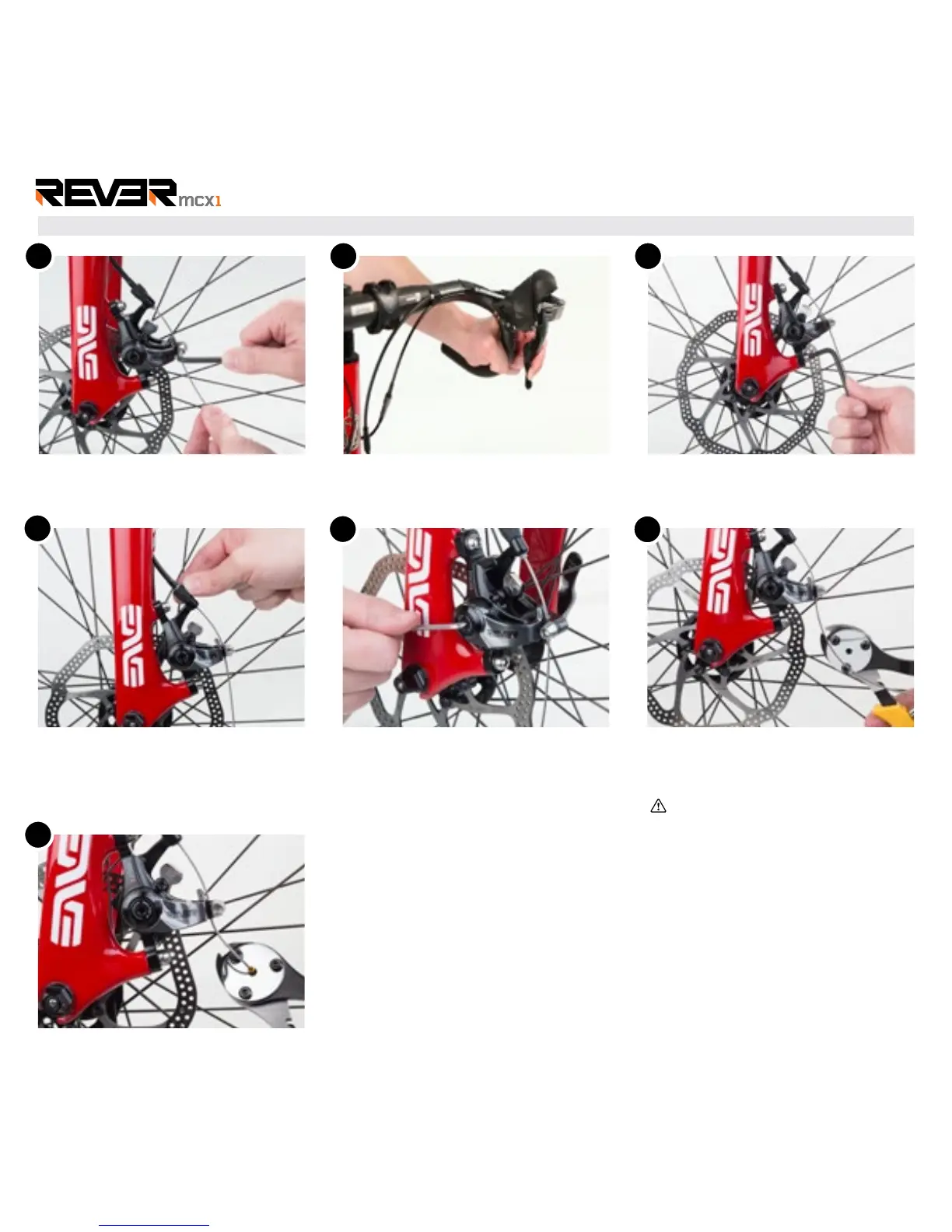

INSTALLATION: FINAL ADJUSTMENTS
1
4
5
6
7
2 3
To Next Page
