• Settings are only a guide as to what must be on the Battery/BMS. Please ensure that the DC circuit loses are
considered during Inverter setup. Inverters are also not calibrated instruments.
• The REVOV R100 system has a self-managing Battery Management System. The system still requires the user to
input settings onto the inverter unless CAN communication is supported.
• Each battery bank is to be fused on both positive and negative with 100A (Max rated DC) fuse. Preferably trip-
breaker or in-line fuses.
• Do not cross the positive and negative terminals. Install the positive cable first. Please make sure the terminals
are not connected to any metal mounting, fixture, or body parts.

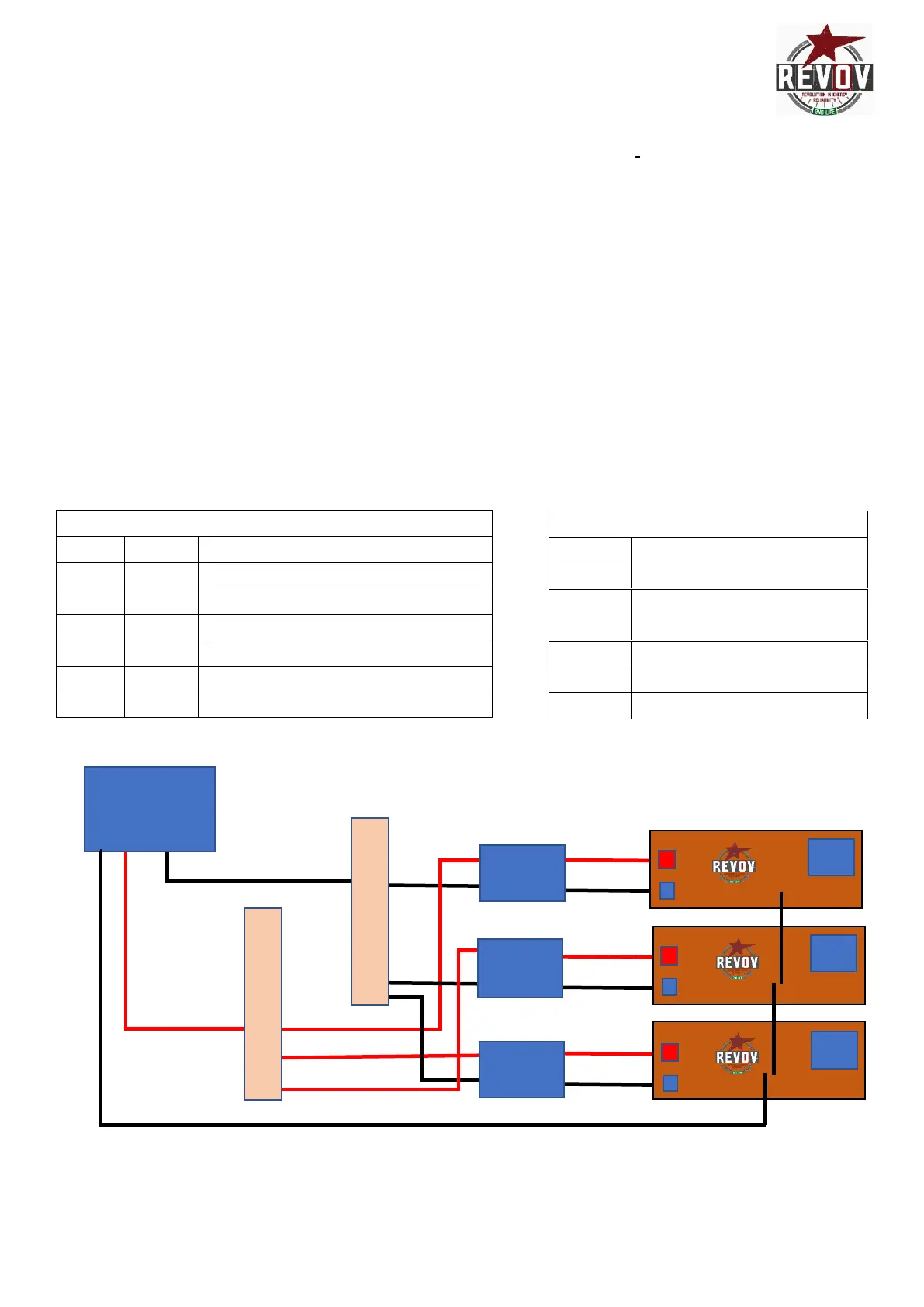

• Each battery is to be coupled to a common DC copper busbar if using more than 1 battery. Care must be taken
with Parallel batteries with different open voltage as this may cause reverse currents, which could damage the
batteries (done by qualified installers only).
• The R100 battery is designed to sit in a cabinet, or mount on the wall. It is recommended to put the Batteries on
the wall to avoid water damage or floods.
• Safe and reliable installation requires trained and certified technicians/installers to design and install systems.
* Battery will auto-start. Green LEDs of the system should run, if not, press circular ON/OFF button softly into the ON
position (depressed). If red light engages on start-up, contact REVOV for assistance.
