IjlfllAScio
UK9HmHBmBmB*

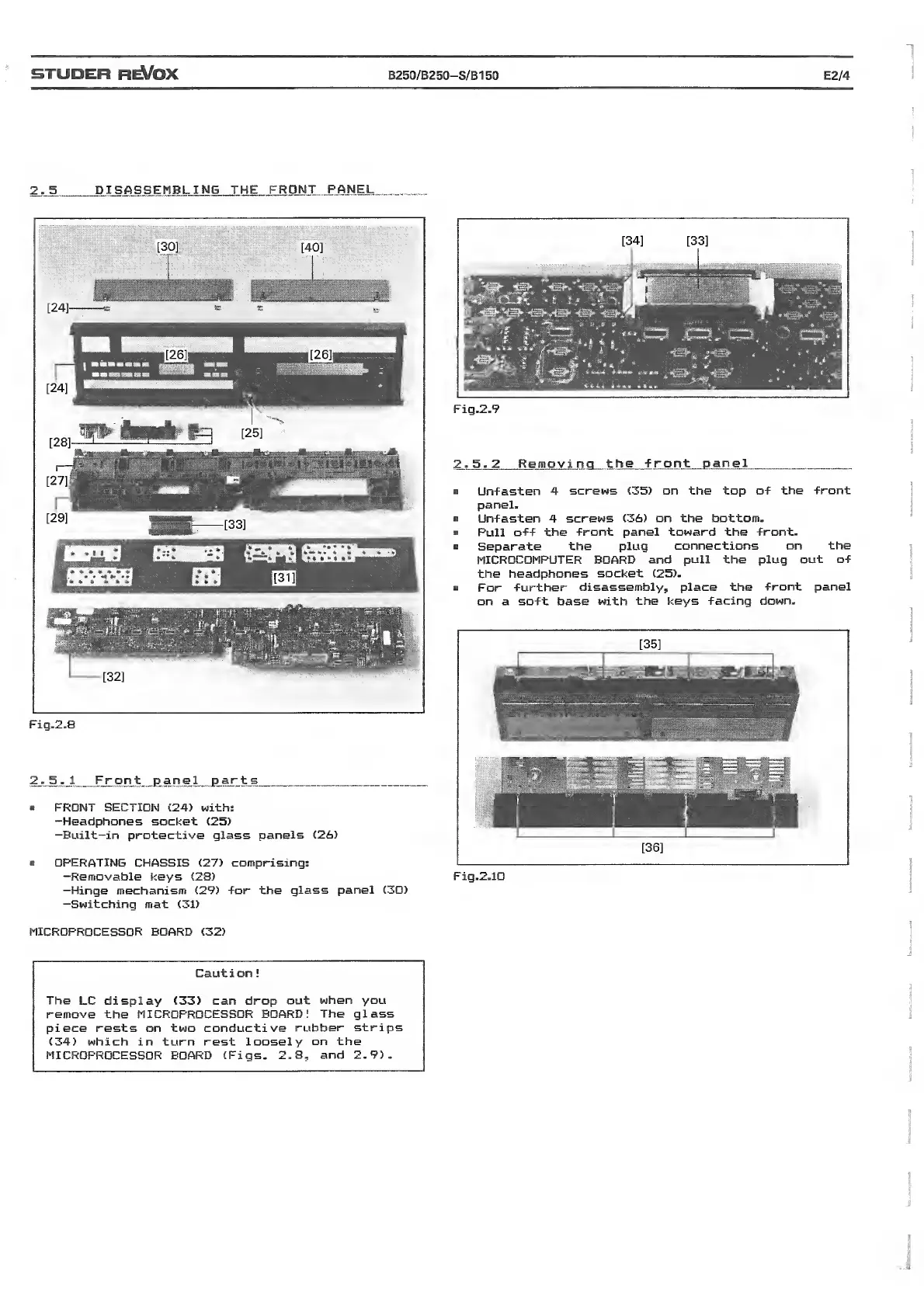

B250/B250-S/B150
Unfasten
4
screws (35) on the top of
the front
panel.
Unfasten 4
screws (36) on the bottom.
Pull
off the front panel toward the front.
Separate the plug
connections
on the
MICROCOMPUTER BOARD
'and pull the plug
out of
the headphones
socket (25).
For
further
disassembly, place the
front panel
on a soft base with
the keys facing
down.
